HPS

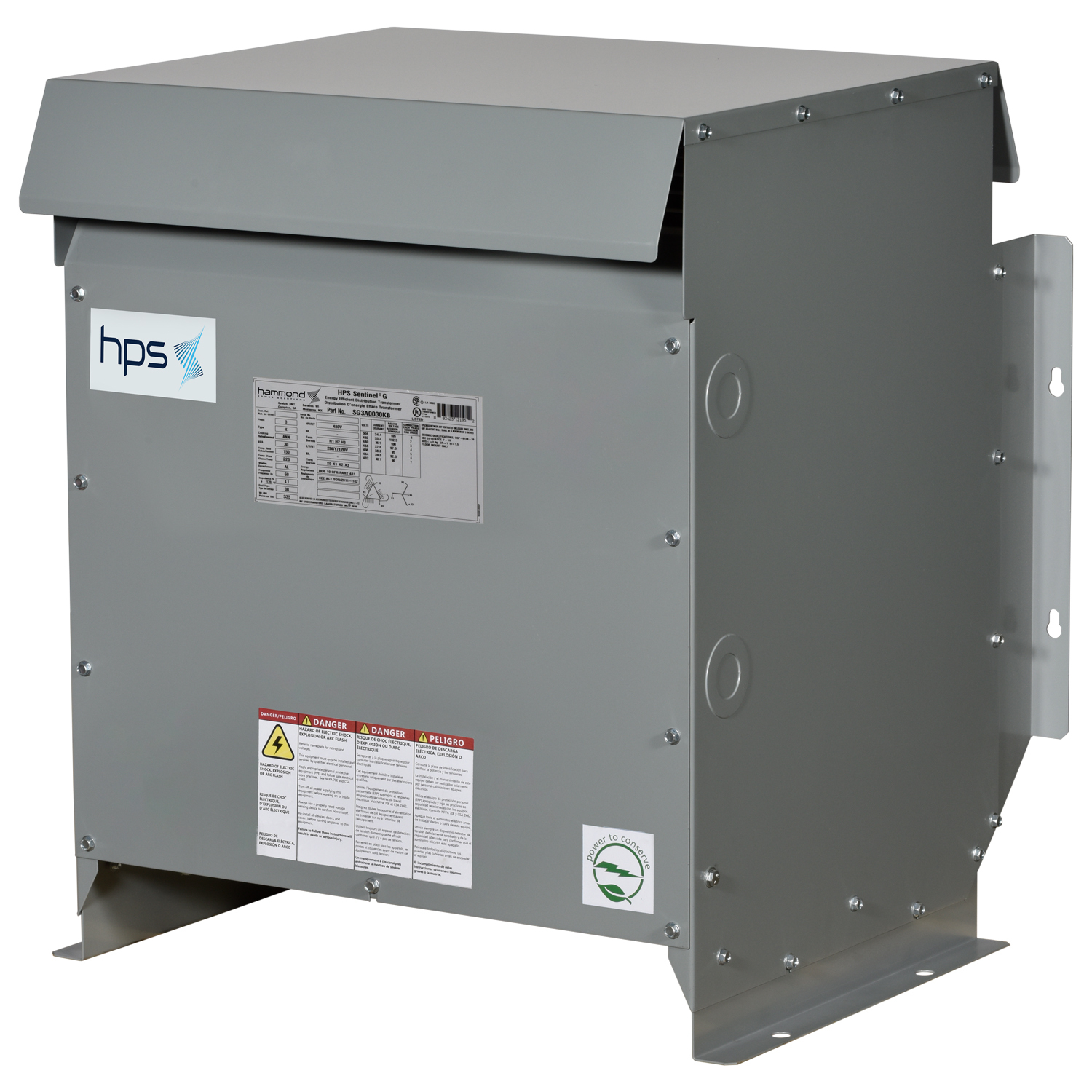

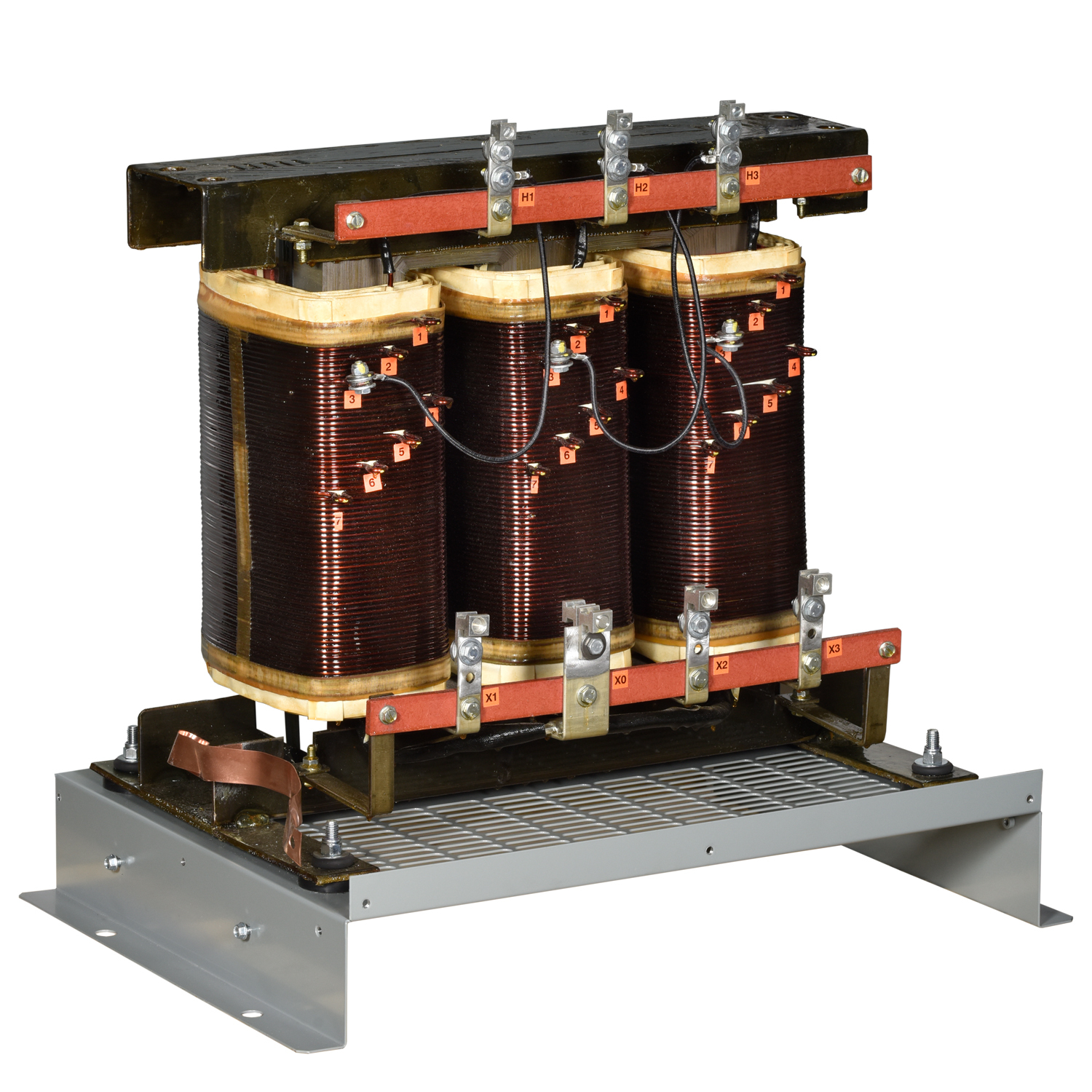

600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Distribution Transformer, 208D PV, 208Y/120 SV, 30 kVA, 3PH, Copper Wound

MFR:
Hammond Power Solutions
MFR #:
SG3A0030BB0C
UPC:
803423127268
Item #:
814746

General purpose distribution transformers are generally used for supplying appliance, lighting, heating, motorized machine and power loads from electrical distribution systems.

Manuals & Documentation
Catalog Number SG3A0030BB0C
Manufacturer Hammond Power Solutions
Brand HPS
Sub Brand General Purpose Transformer
Warranty Description 10 Year Warranty
Country of Origin Multiple
Made in USA No
Application General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems.
Cable Entry Knock Outs
Enclosure DH2-N3R - Indoor or Outdoor
Enclosure Type Type 3R
Frequency Rating 60 HZ
Insulation Class 220 Degrees C
Mounting Ceiling
Number of Taps ST-20 compliant
Phase 3
Primary Voltage 208
Secondary Voltage 208Y/120V
Special Features Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs.
Standard CSA, UL
RoHS URL https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf
UPC 803423127268
GTIN 00803423127268
Item Type Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase
Length 23.8000
Length UOM Inch
Width 25.8000
Width UOM Inch
Height 28.8000
Height UOM Inch
Weight 340.000 L
Temperature Rating Typical 30 Average/ 40 Maximum DEG C
