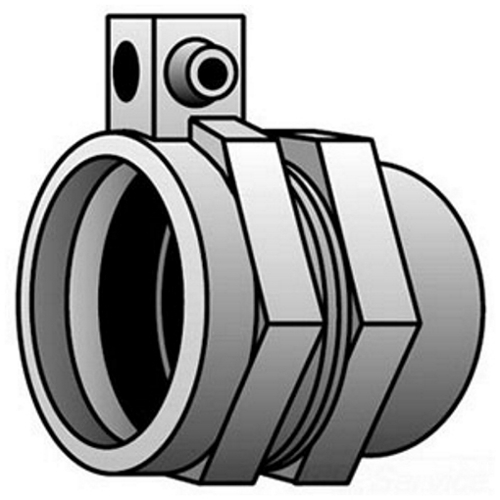

OZ-Gedney Ground-Tite Type 4Q-FML Grounding Liquidtight Combination Coupling, Trade Size: 1-1/2 IN, Length: 2-1/16 IN, Flexibility: RMC And IMC, Malleable Iron Body And Nut, Steel Ferrule, Connection: FNPT Hub, Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No. 41, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 per NEC 501.4(B), Class I, Zone 2 per NEC 505.15(C)(2), Class II, Division 1 per NEC 502.4(A)(1)(e), Class II, Division 2 per NEC 502.4(B)(2), Class III, Division 1 per NEC 503.3(A)(2), Class III, Division 2 per NEC 503.3(B), Intrinsically Safe per NEC 504.20, For Threaded Rigid Conduit And IMC
- MFR:
- O-Z/Gedney
- MFR #:
- 4Q-150FML
- UPC:
- 783126617696
- Item #:
- 787403
OZ-Gedney Ground-Tite Type 4Q-FML Grounding Liquidtight Combination Coupling, Trade Size: 1-1/2 IN, Length: 2-1/16 IN, Flexibility: RMC And IMC, Malleable Iron Body And Nut, Steel Ferrule, Connection: FNPT Hub, Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No. 41, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 per NEC 501.4(B), Class I, Zone 2 per NEC 505.15(C)(2), Class II, Division 1 per NEC 502.4(A)(1)(e), Class II, Division 2 per NEC 502.4(B)(2), Class III, Division 1 per NEC 503.3(A)(2), Class III, Division 2 per NEC 503.3(B), Intrinsically Safe per NEC 504.20, For Threaded Rigid Conduit And IMC
- MFR #:
- 4Q-150FML
- UPC:
- 783126617696
- Item #:
- 787403
Manuals & Documentation
| Catalog Number | 4Q-150FML |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Threaded Rigid Conduit And IMC |
| Connection | FNPT Hub |
| Flexibility | RMC And IMC |
| Material | Malleable Iron Body And Nut, Steel Ferrule |
| Special Features | Secures, grounds and seals liquidtight flexible metal conduit and terminates bonding conductor run externally alongside liquidtight conduit to threaded rigid conduit and IMC; Positive grounding type; Grounding lug is cast as an integral part of malleable iron gland nut; Provides high ground fault withstand capability; Compact, slim diameter with small turning radius; Require thread sealant; Bonding wedge locknuts are recommended in hazardous locations; Long ferrule prevents pull-out and tight bend conduit pop-out; Inspection windows in ferrule to ensure full engagement; Zinc electroplated finish |
| Standard | Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No. 41, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 per NEC 501.4(B), Class I, Zone 2 per NEC 505.15(C)(2), Class II, Division 1 per NEC 502.4(A)(1)(e), Class II, Division 2 per NEC 502.4(B)(2), Class III, Division 1 per NEC 503.3(A)(2), Class III, Division 2 per NEC 503.3(B), Intrinsically Safe per NEC 504.20 |
| UPC | 783126617696 |
| GTIN | 00783126617696 |
| Item Type | Type 4Q-FML Grounding Liquidtight Combination Coupling |
| Length | 2-1/16 |
| Length UOM | Inch |
| Trade Size | 1-1/2 |
