Telemecanique

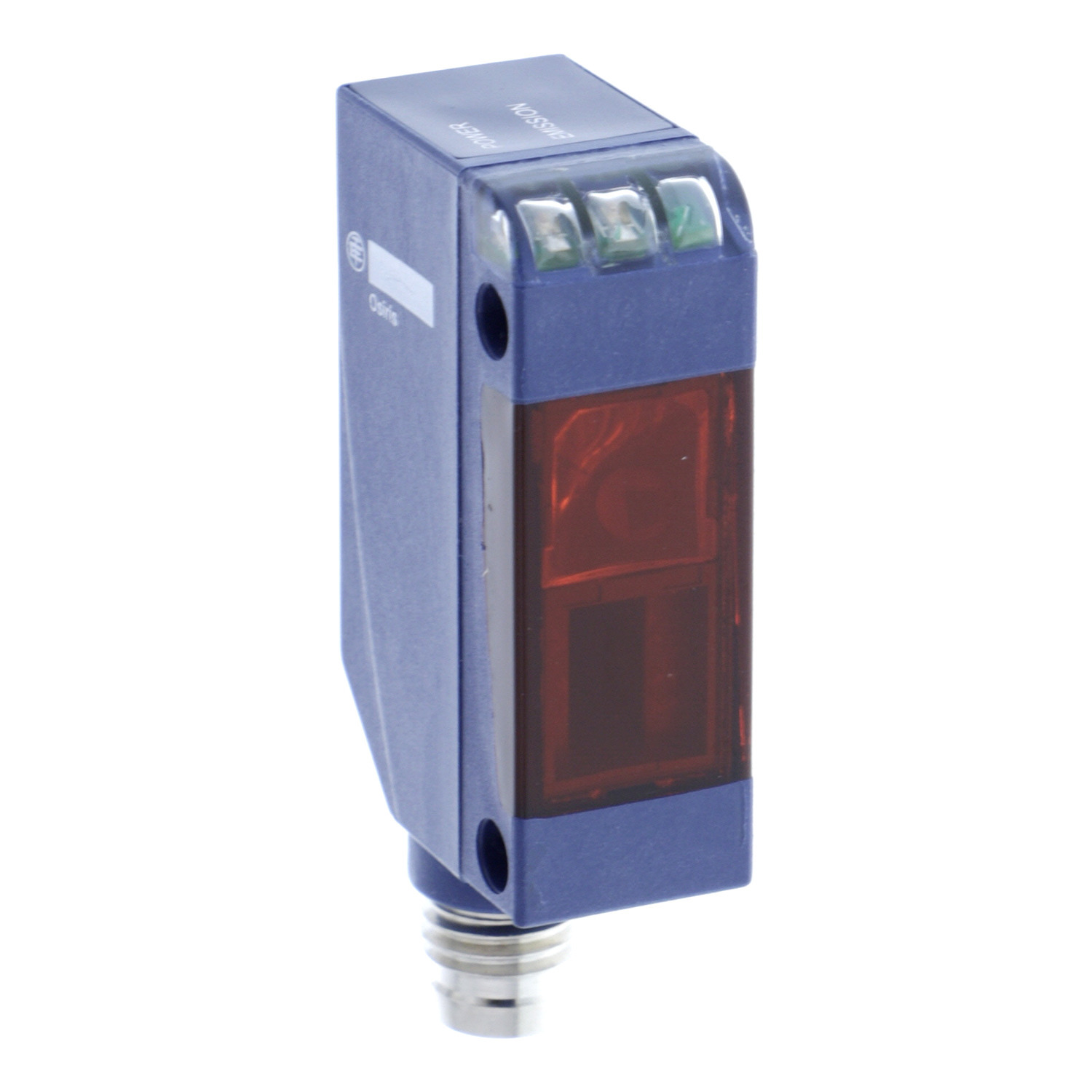

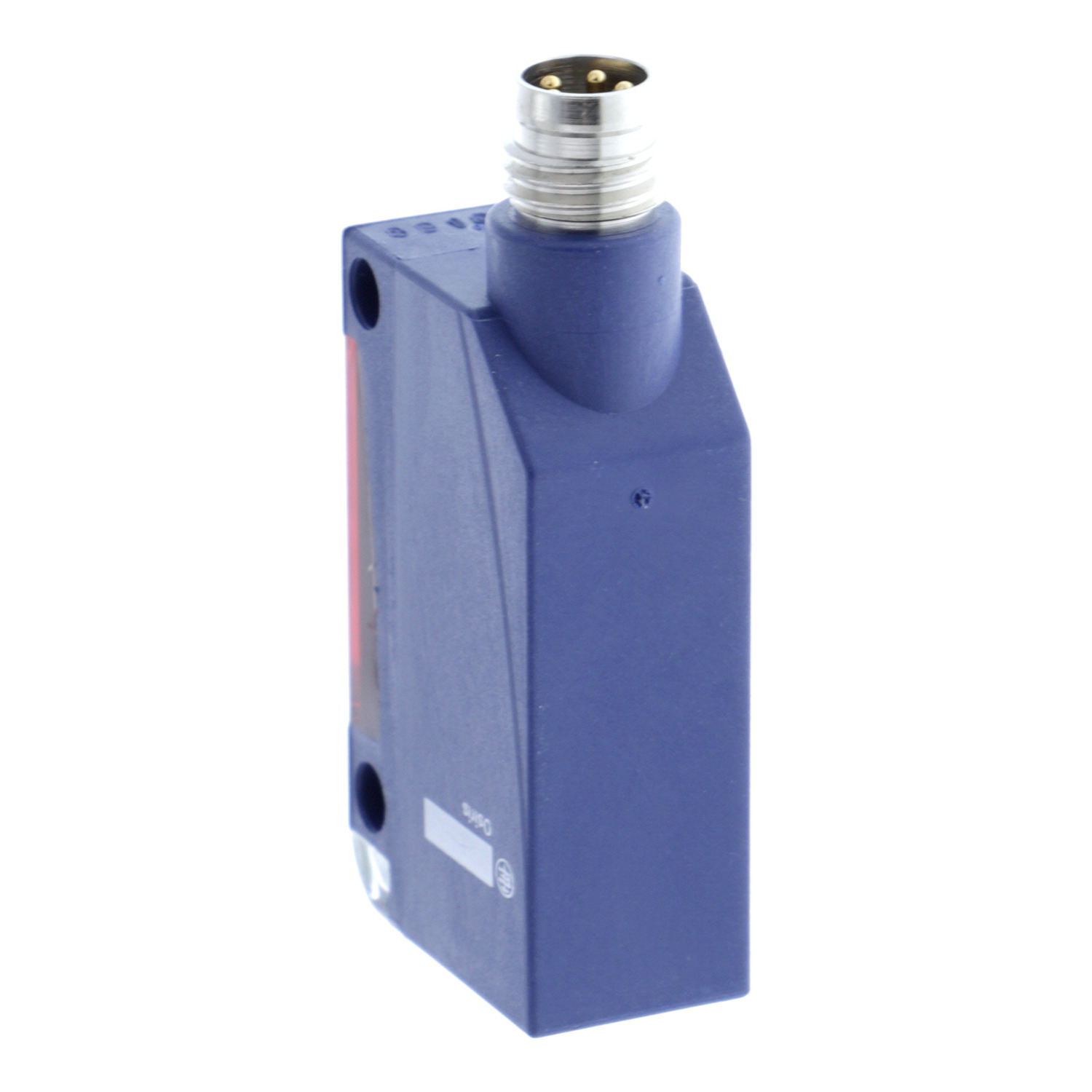

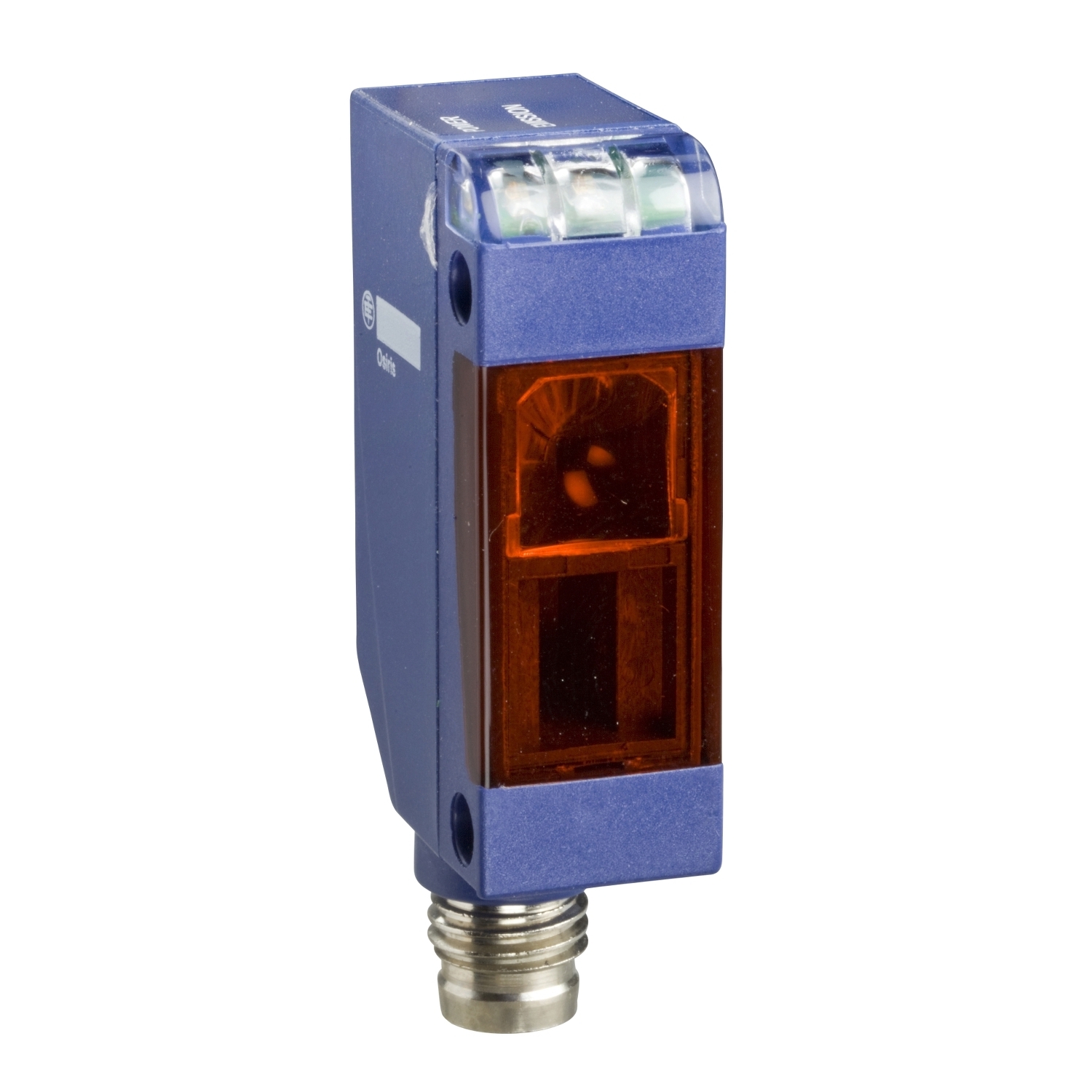

XUM0AKSAM8T OsiSense XU 3-Wire Dusttight/Oiltight/Watertight Miniature Submersible Photoelectric Sensor, Rectangle Shape, 14 m, Infrared Sensing Beam, 2 ms Response

MFR:
Telemecanique Sensors
MFR #:
XUM0AKSAM8T
UPC:
785901233381
Item #:
665271

This miniature design single mode (thru-beam system) photo-electric transmitter has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This multi-mode rectangular photoelectric emitter has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and troubleshoot issues. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M8 connector, compatible with all existing market sensor cabling. It is CSA and UL certified.

Manuals & Documentation
Catalog Number XUM0AKSAM8T
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application -
Connection 1 male connector M8, 4 pins
Enclosure IP67 CONFORMING TO IEC 60529,PBT
Operating Cycles <= 250 Hz
Sensing Range 10-10 M THRU BEAM NEED A RECEIVER,> 16.4...49.21 FT (> 5...15 M)
Special Features 1 LED green)supply on
Standard IP67 IEC 60529,UL-CSA-CE
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=874300&lang=en-us
UPC 785901233381
GTIN 03389110164626
Item Type General purpose multimode;Thru beam;Miniature;Photo-electric sensor transmitter
Size 0.79
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND SUBMERSIBLE (INDOOR/OUTDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
