Catalog Number T3225K0013B
Manufacturer Acme Electric, a Hubbell affiliate
Brand ACME ELECTRIC
Country of Origin Mexico
Made in USA No

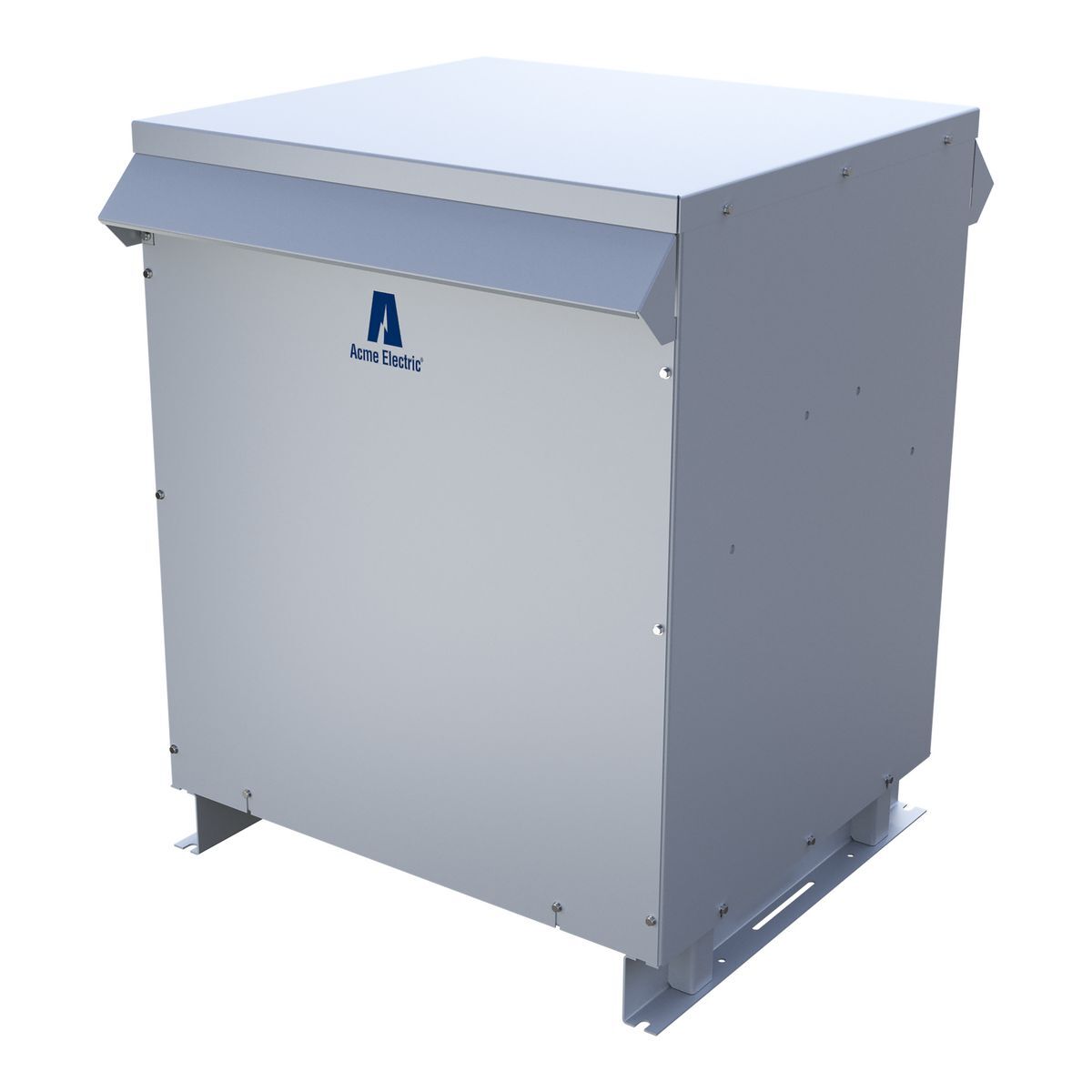

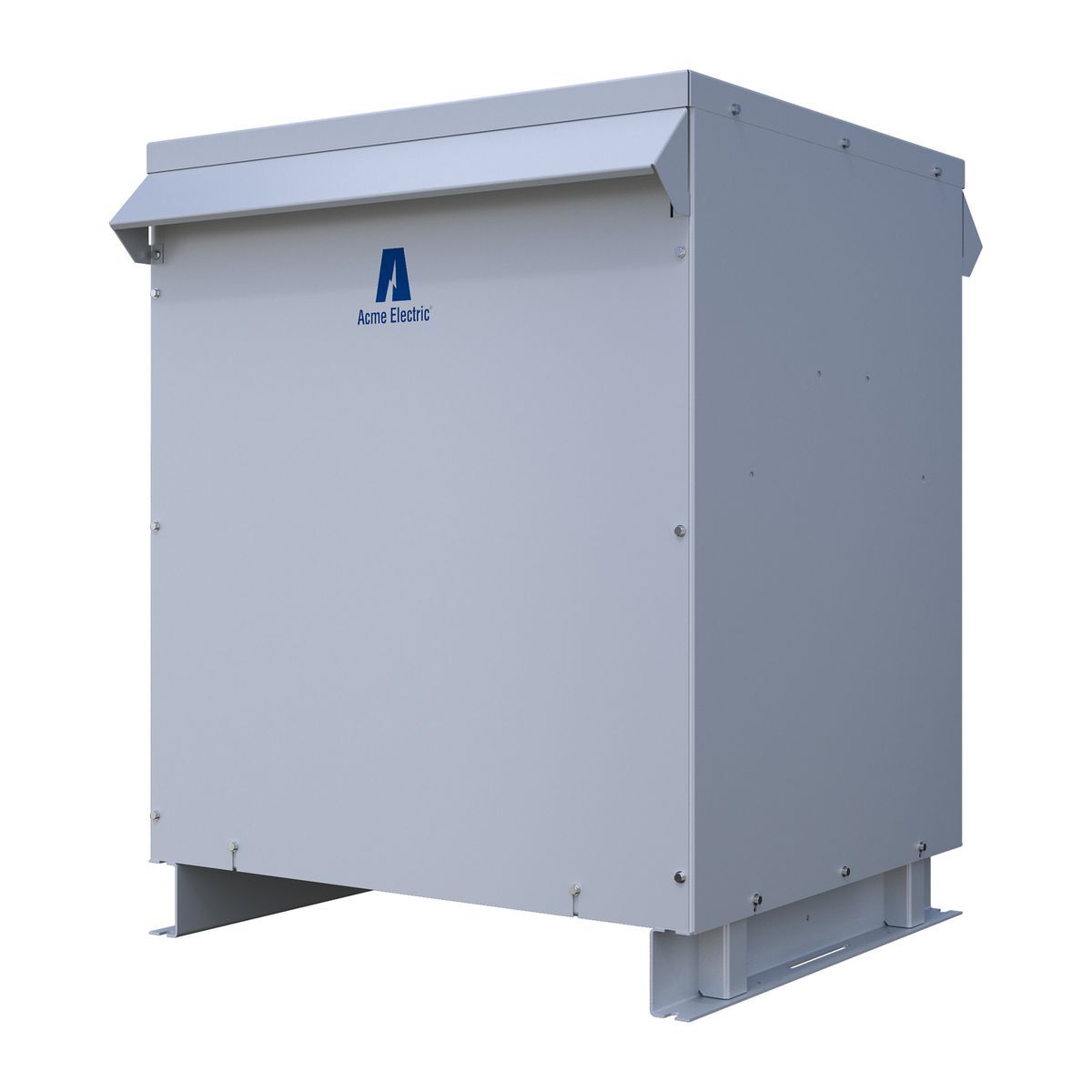

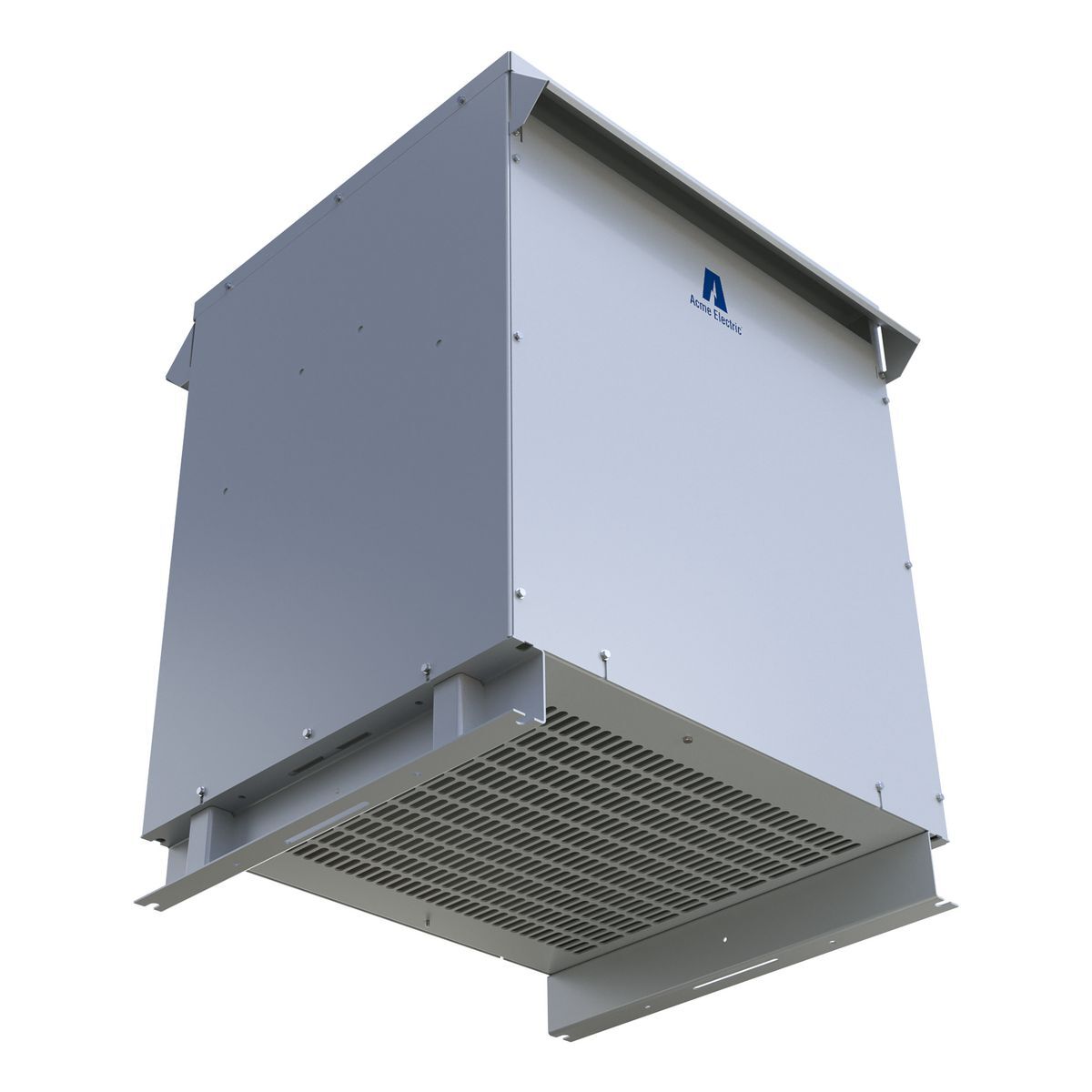

Application Dry Type Distribution Transformer
Enclosure NEMA 3R
Frequency Rating 60 HZ
Mounting Floor
Number of Taps Two 2-1/2% (+) & Four 2-1/2% (-)
Primary Voltage 480D V
Secondary Voltage 208Y/120 V
Special Features Meet DOE 2016 efficiency requirements
Standard UL 1561, UL File Number E12547, UL Control Number 542B, UL Insulation Number C3222, CSA Certified, OSHA Compliant, ANSI, IEEE
UPC 047503092446
GTIN 00047503092446
Item Type Isolation transformer
Length 29.87
Length UOM Inch
Width 32.9
Width UOM Inch
Height 41.52
Height UOM Inch
Temperature Rating 150 Degrees C
