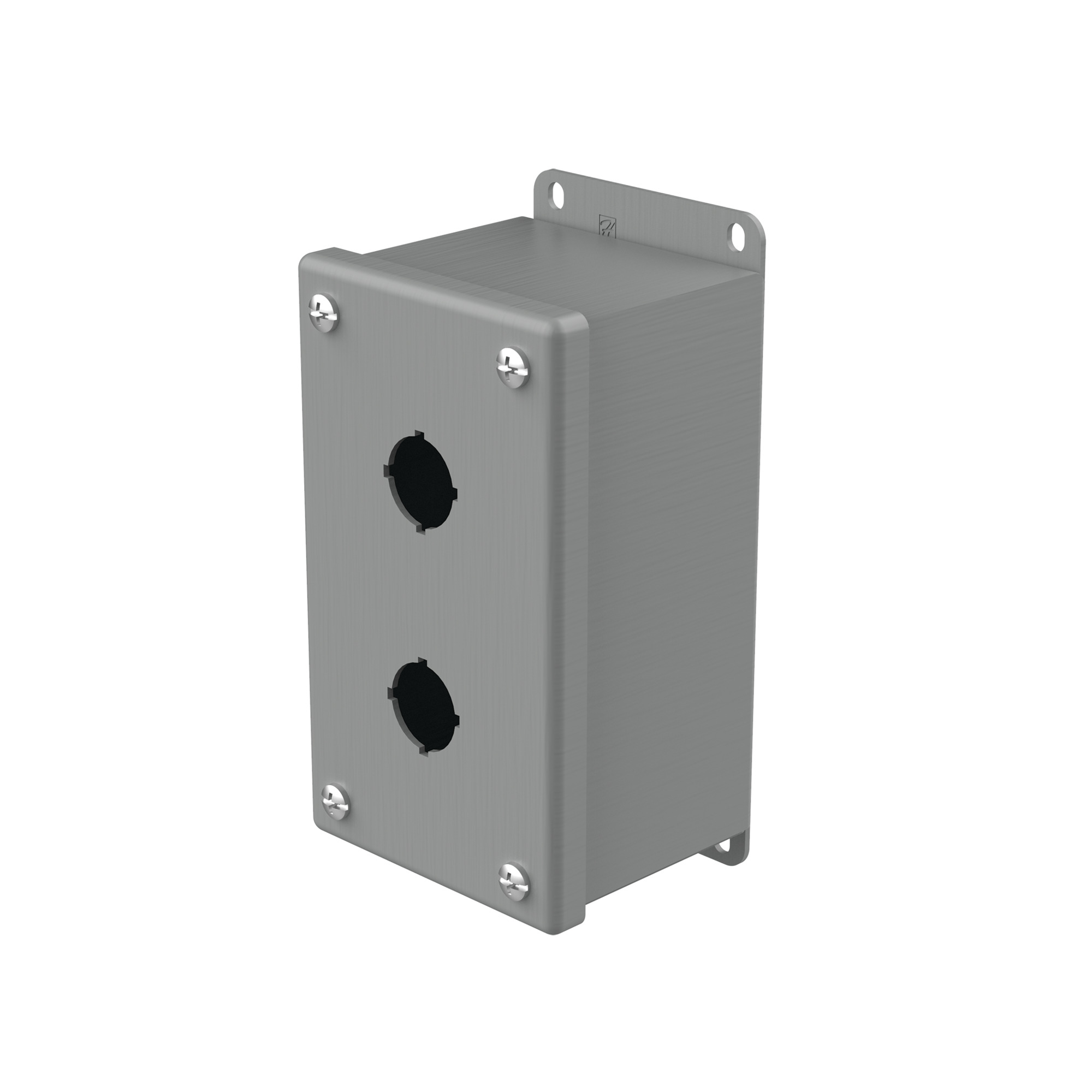

Pushbutton housing PB, mini, material: Sheet steel, surface: Polyester powder coating on a phosphated surface finish, color: RAL 7035, supply includes: Cover screws, captive, Wall mounting brackets, description: The NEMA rated PB series pushbutton box enclosure is designed for indoor use to house pushbuttons, selector switches, and pilot lights. This enclosure protects equipment from dirt, dust, sprayed water, oil, and coolants.
Features
- Size: 69 mm Width x 88 mm Depth x 146 mm Height
- 2 rows X 1 column
| Catalog Number | 8017665 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | RAL 7035 |
| Material | Carbon Steel |
| Mounting | Wall |
| NEMA Rating | 12, 13 |
| Number of Holes | 2 |
| RoHS Indicator | Yes |
| UPC | 639889811553 |
| GTIN | 00639889811553 |
| Item Type | Miniature Push Button Box |
| Length | 7.0870 |
| Length UOM | Inch |
| Width | 6.6140 |
| Width UOM | Inch |
| Height | 4.0940 |
| Height UOM | Inch |
| Weight | 1.920 |
| Weight UOM | Pounds |
| Size | 5.1 (H) x 2.7 (W) x 3.5 (D) |
