Leviton®
Leviton

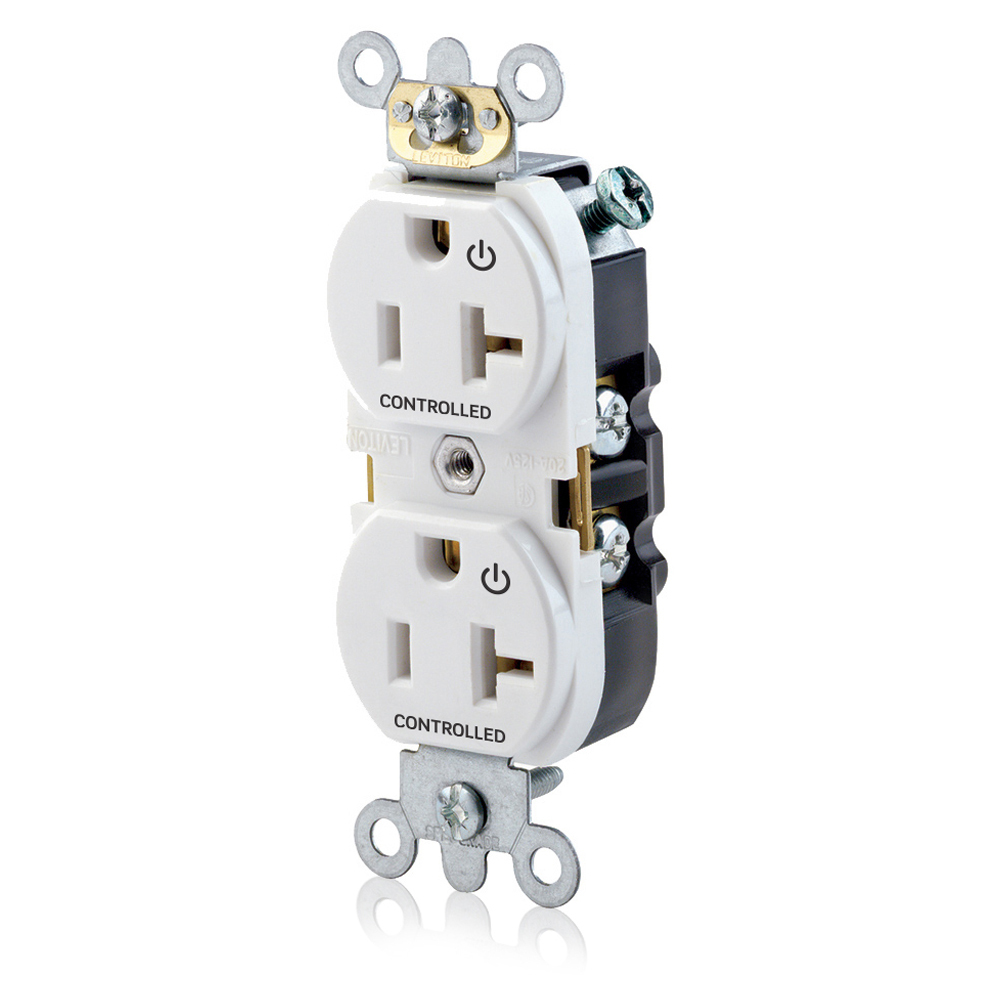

5362-S2W Heavy Duty Narrow Body Straight Blade Duplex Receptacle With 2 Plug Controlled Markings, 125 V AC, 20 A, 2 Poles, 3 Wires, White
- MFR #:
- 5362-S2W
- UPC:
- 078477711491
- Item #:
- 358325
Product Details
Leviton® offers custom imprinting solutions to meet the 2014 National electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Manuals & Documentation
Features
- Two marked controlled receptacles
Specifications
Identifiers
| Manufacturer Part Number |
5362-S2W
|
|---|---|
| GTIN |
00078477711491
|
| UPC |
078477711491
|
|---|
General Information
| Manufacturer |
Leviton
|
|---|---|
| Brand |
Leviton®
|
| Country Of Origin |
MX
|
| Warranty |
10 Years Limited
|
|---|---|
| Standards Approvals |
ANSI (C-73) | CSA C22.2 No. 42 NOM-ANCE FedSpec W-C 596 | UL 498
|
| Application |
Commercial and Residential Applications
|
Dimensions
| Dimensions |
4.06 in H x 1.53 in W x 1.27 in D
|
|---|
Technical Information
| Amperage Rating |
20 A
|
|---|---|
| Color |
White
|
| Enclosure |
NEMA WD-1/WD-6
|
| Grade |
Industrial/Specification
|
| Horsepower |
1 hp
|
| Material |
Nylon
|
| Nema Rating |
NEMA 5-20R
|
| Number Of Poles |
2
|
|---|---|
| Number Of Wires |
3
|
| Temperature Rating |
-40 to 75 deg C
|
| Terminal Type |
Back/Side Wire
|
| Type |
Heavy Duty Narrow Body
|
| Voltage Rating |
125 V AC
|
