Telemecanique

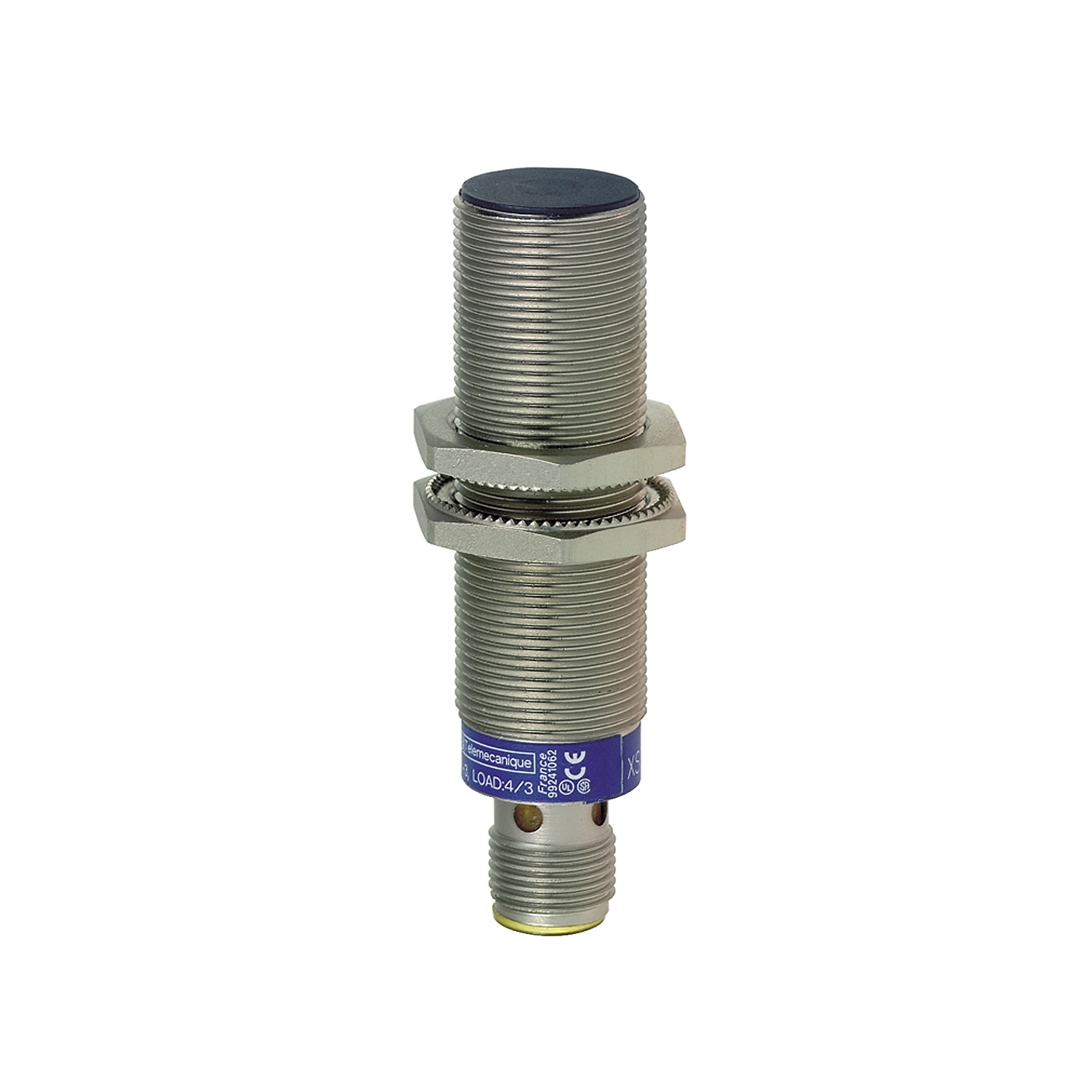

XS1M18MA250K OsiSense XS Fixed Cylindrical Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 20 to 264 V AC/DC, 24 to 240 V AC, 24 to 210 V DC

MFR:
Telemecanique Sensors
MFR #:
XS1M18MA250K
UPC:
785901915683
Item #:
271144

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a multivoltage, cylindrical, flush mountable sensor. Diamter 18mm, threaded M18 x 1. It features a nickel plated brass case and a 1/2-20UNF connector. It has a sensing distance of 5mm. Two-wire, AC or DC supply, 24V to 240V, NO output, with short-circuit protection.

Manuals & Documentation
Catalog Number XS1M18MA250K
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application General purpose;2-wire DC short-circuit protection
Connection Male connector 1/2"20 UNF, 3 pins
Connector MALE CONNECTOR 1/2IN20 UNF, 3 PINS
Control Output 1 NO
Enclosure Nickel Plated Brass
Indicator OUTPUT STATE 1 LED YELLOW)-SUPPLY ON 1 LED GREEN)
Material Metal
Mounting Flush
Output 1 NO;Discrete;AC/DC
Sensing Range 5 MM,> 0.16...0.31 IN (> 4...8 MM)
Sensor 18 MM,72 MM,INDUCTIVE PROXIMITY SENSOR
Special Features Output state 1 LED yellow);supply on 1 LED green);Frontal
Standard IP67 conforming to IEC 60529;CE
Supply Voltage 24...210 V DC-24...240 V AC 50/60 HZ
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=866668&lang=en-us
UPC 785901915683
GTIN 03389110915686
Item Type Inductive proximity sensor
Operating Temperature -25-70 A Degrees C
Voltage Rating 24...210 V DC;24...240 V AC 50/60 Hz
