ABE7CPA412 Advantys Telefast 25-Way SUB-D Connection Sub-Base, Screw Wire Clamp, Direct Connection of 4-Thermocouples with Cold Junction Compensation Function
- MFR:
- Schneider Electric
- MFR #:
- ABE7CPA412
- Item #:
- 251004
ABE7CPA412 Advantys Telefast 25-Way SUB-D Connection Sub-Base, Screw Wire Clamp, Direct Connection of 4-Thermocouples with Cold Junction Compensation Function
- MFR #:
- ABE7CPA412
- Item #:
- 251004

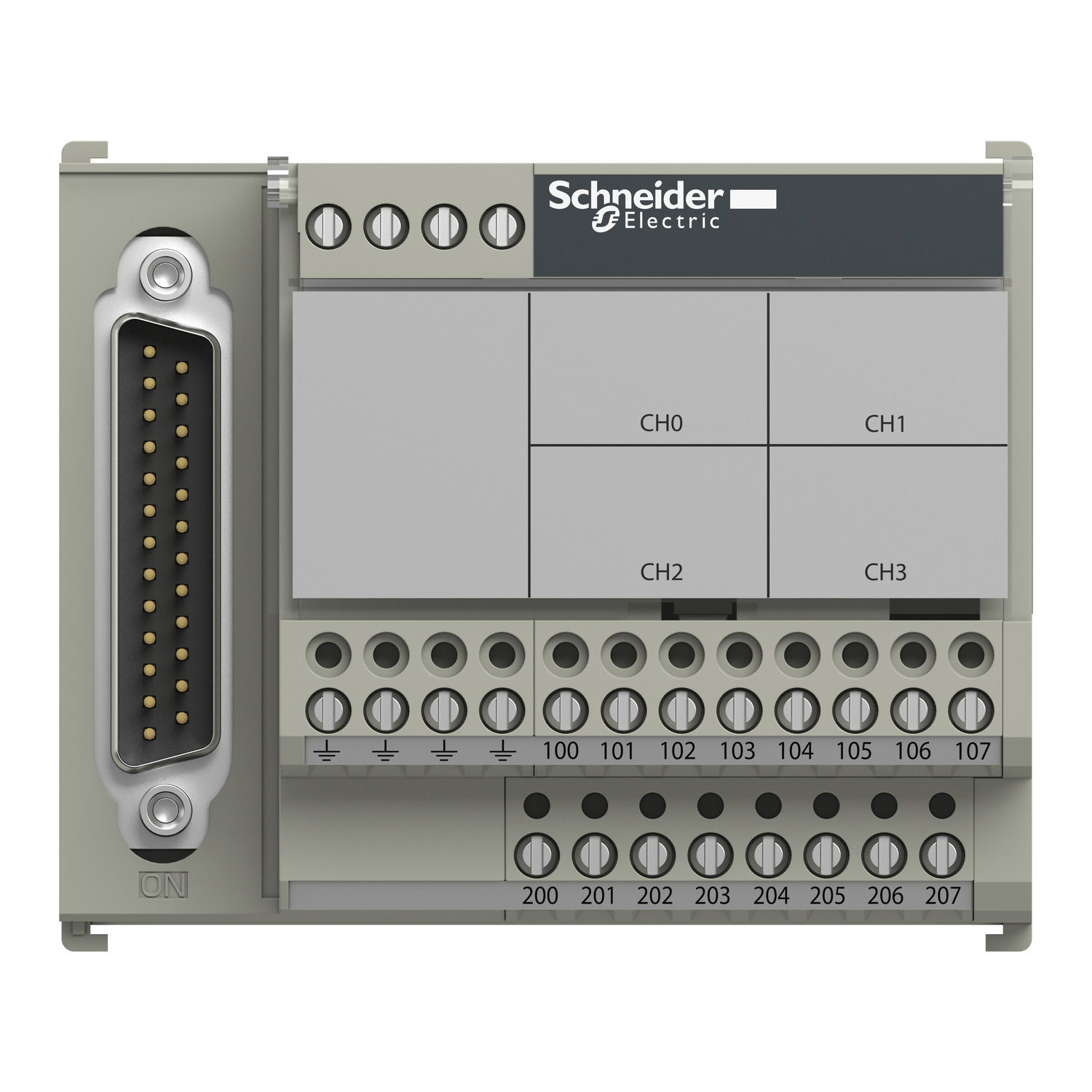

This connection sub-base is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. It is for distribution of 4 thermocouples. It distributes isolated sensor power supplies by means of a converter. It supplies cold-junction compensation for the connected thermocouple input. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.18kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon M340 BMXART0414 analog input module and Modicon M340 BMXART0814 analog input module. It is delivered in 2 packages (PCE and SO3 types). It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Manuals & Documentation
| Catalog Number | ABE7CPA412 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Communication | SUB-D 25 |
| Mounting | Din Rail |
| Special Features | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end;screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid;screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end;screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end;screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=698260&lang=en-us |
| GTIN | 03595863914696 |
| Item Type | Connection sub-base for analogue channels |
