AFC Cable Systems

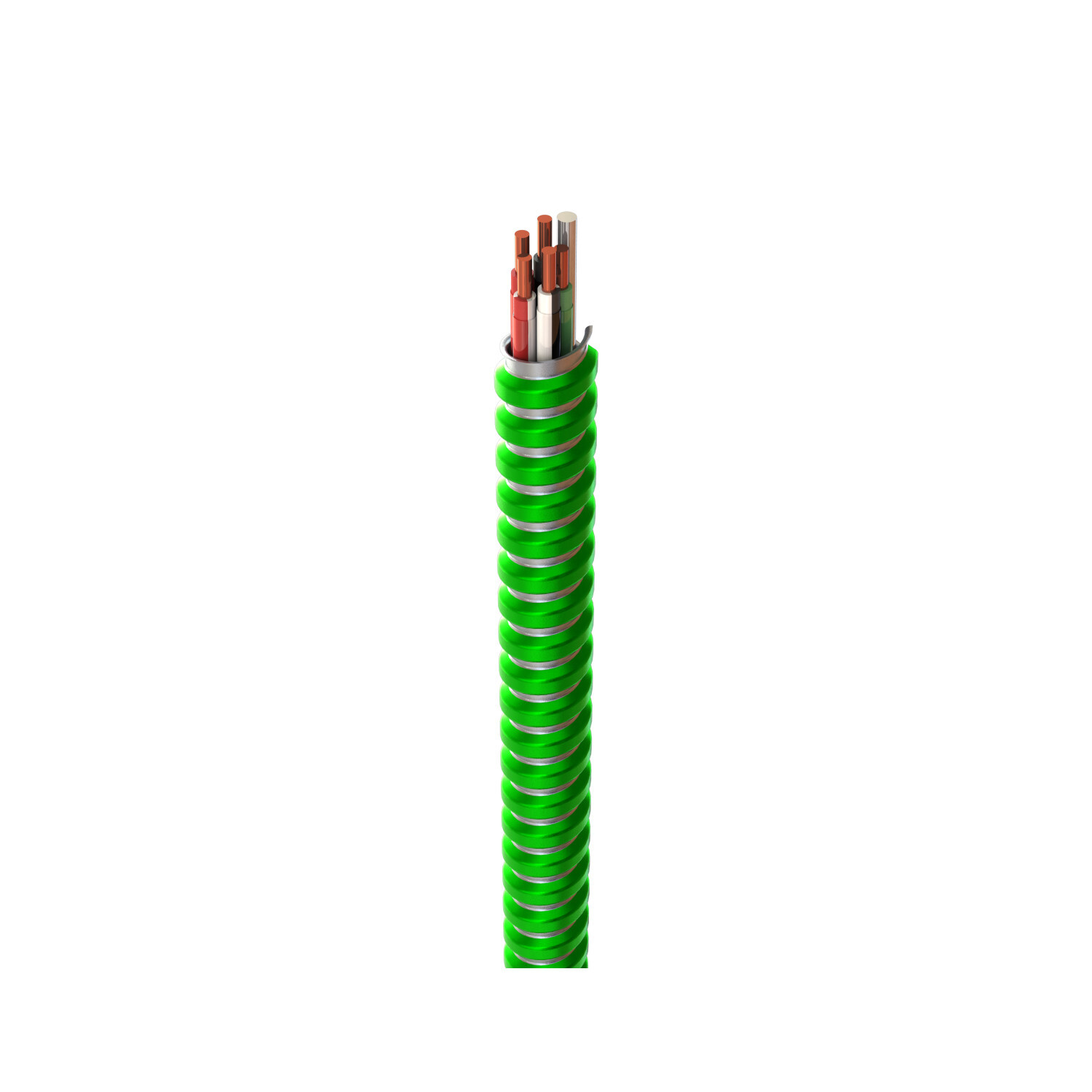

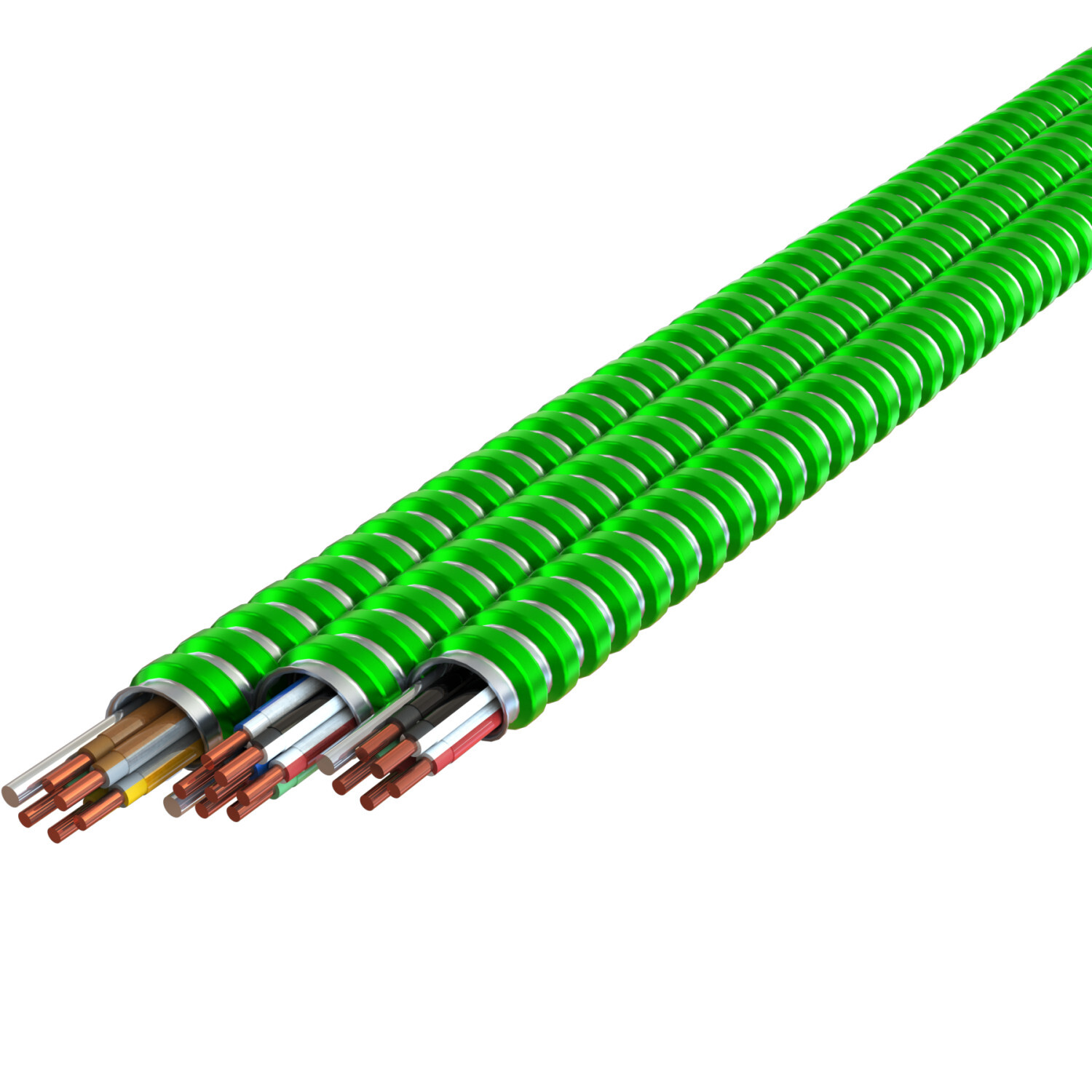

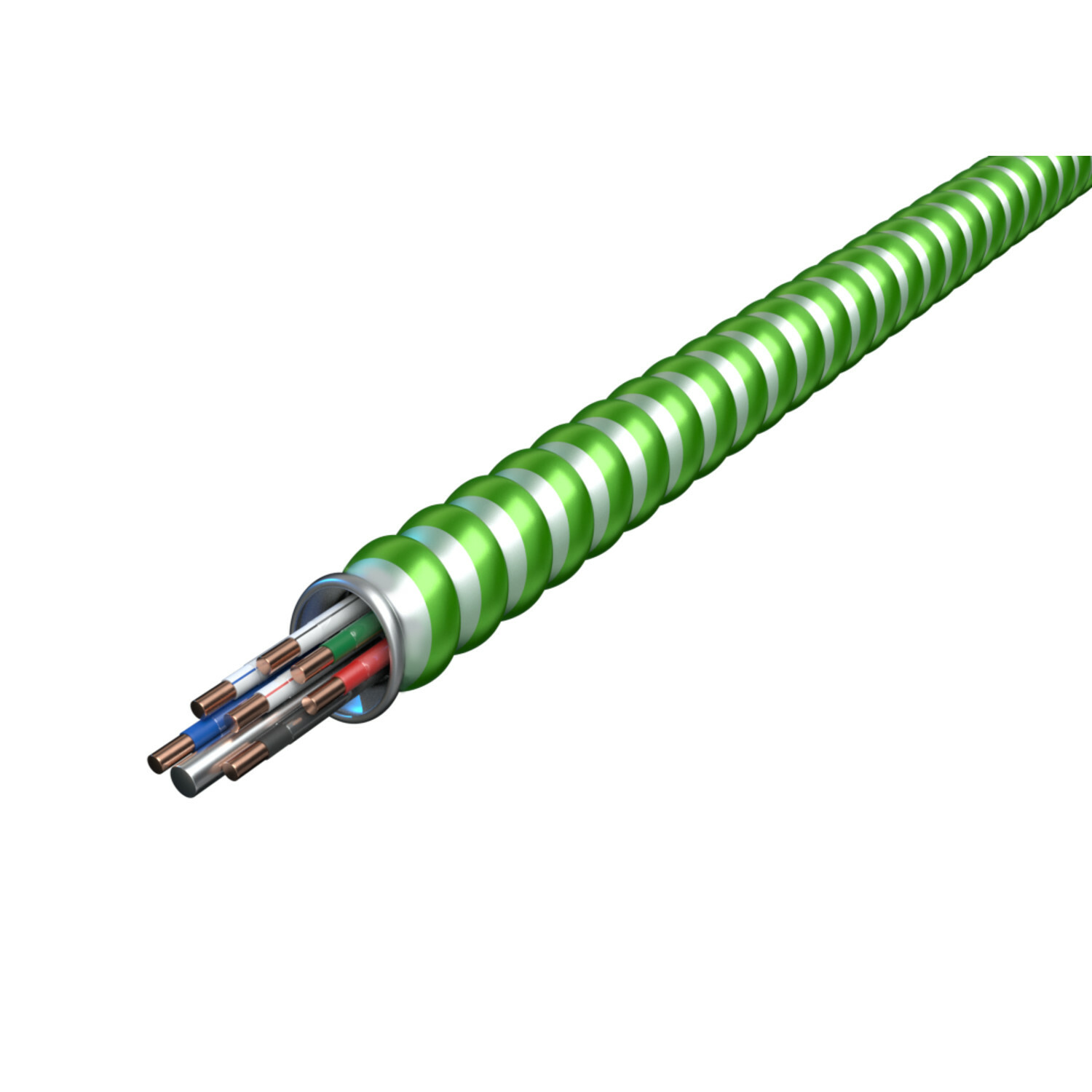

7005-60-00 MC-Stat Plus Type MCI-A Metal Clad Cable With Grounding and Neutral Conductor, Reel Packaging, 600 V AC, (6) 12 AWG Solid Copper Conductor, 1000 ft L

MFR:
ATKORE - AFC CABLE
MFR #:
7005-60-00
UPC:
077680270948
Item #:
214571

MC Stat Plus is designed for healthcare settings with neutral-per-phase and redundant ground required for NEC 517.13. Its design eliminates shared neutrals and reduces the risk of overloading, helping identify faulty circuits to reduce outages. This cable offers improved safety and efficiency for a range of applications. MC Stat Plus's unique features, including its ColorSpecID/ColorTrak ID, Neutral-per-phase design, wrap-free design, Patented Polypropylene covered THHN/THWN-rated conductors, make it a reliable and efficient choice for healthcare facilities.

Catalog Number 7005-60-00
Manufacturer ATKORE - AFC CABLE
Brand AFC Cable Systems
Sub Brand MC Stat
Country of Origin United States
Made in USA Yes
Armour Interlocked Galvanized Steel Strip
Bend Radius 9.945
Color Green
Conductor Material Copper
Conductor Size 12 AWG
Finish Lime Green Paint
Material Galvanized Steel
Number of Conductors 8
Standard UL 1569, UL 83, UL 1479, UL 1581, UL 2556, E80042 Federal spec A-A–59544 (formerly J-C–30B) NEC® 330, 300.22(C), 230.43, 250.118, 392, 396, 503, 530, 517, 518, 520, 645 UL Classified 1, 2, and 3 hour through (Fire) penetration product, R–14141 NEC® 300.22(C) Environmental Air Handling Spaces
UPC 077680270948
GTIN 00077680270948
Item Type MC-Stat® Plus Steel Cable
Length 1000
Length UOM Foot
Weight 0.309 LB/FT
Inside Diameter 0.483 IN
Outside Diameter 0.663 IN
Temperature Rating 194
Trade Size 12-3
Voltage Rating 600V
