Telemecanique

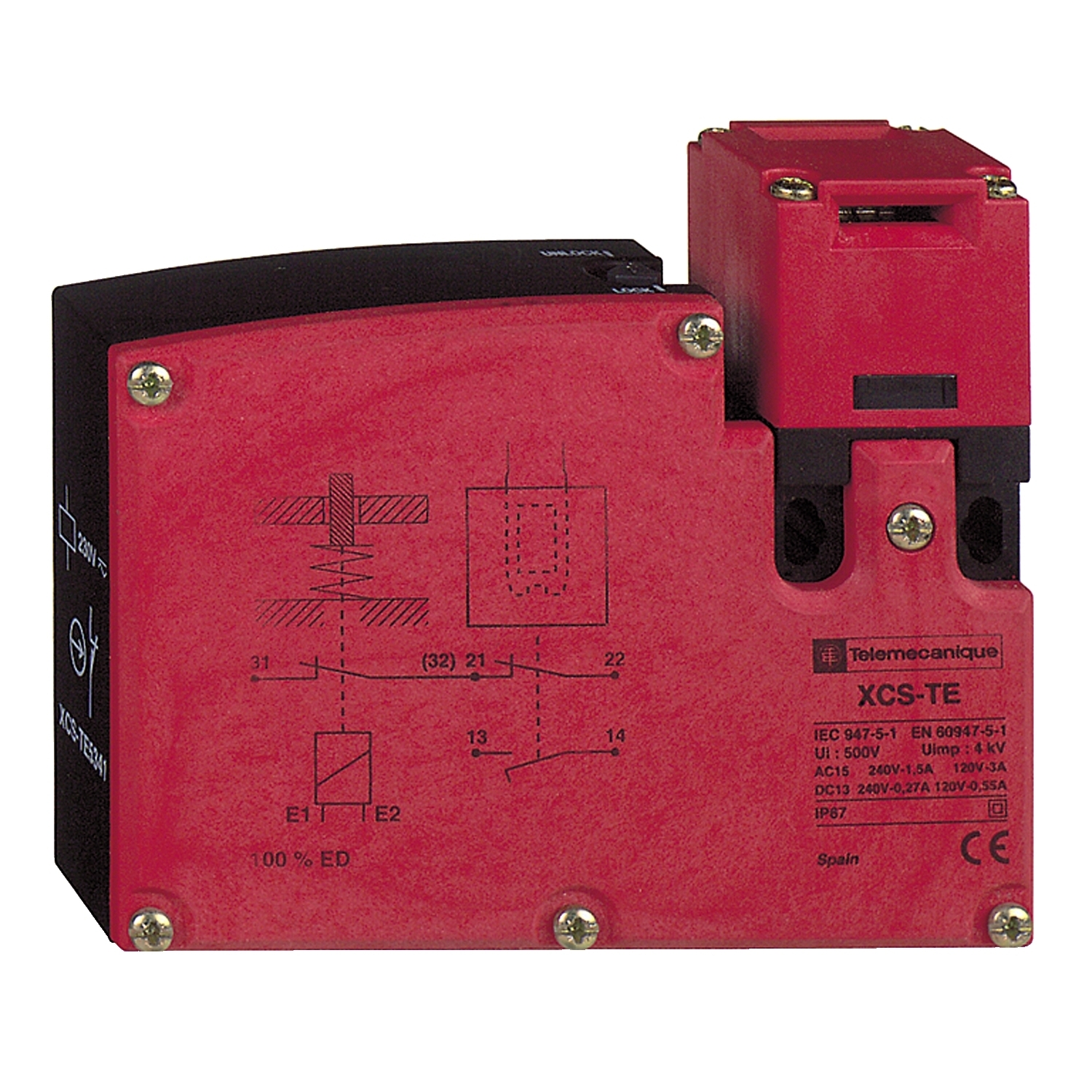

XCSTE5312 Preventa Corrosion-Resistant Dusttight/Watertight Turret Head Safety Interlock Switch, 300 V AC, 6 A, 50/60 Hz, 10 VA Power Rating, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCSTE5312
UPC:
785901466642
Item #:
150539

This XCSTE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a red coated polyamide body with a M16 cable gland entry, allowing for flexible installation. It has 1 normally open and 1 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals & Documentation
Catalog Number XCSTE5312
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Slow-break, break before make
Actuator KEY
Amperage Rating 6
Application KEY OPERATED TURRET HEAD
Connection Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 4/4X/12 - IP67
Insulation Double insulated
Number of Poles 2
Operating Cycles 10 CYC/MN FOR MAXIMUM DURABILITY
Special Features Locking on de-energisation and unlocking on energisation of solenoid
Standard 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-UL 508-EN/IEC 60947-5-1-EN/IEC 60204-1-EN 1088/ISO 14119-EN/ISO 12100,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,UL-CSA,CLASS II EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=860056&lang=en-us
UPC 785901466642
GTIN 03389110825084
Item Type Safety switch
Size 1.30
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Operating Temperature -25-60 A Degrees C
Voltage Rating 24 V - 20...10 %
