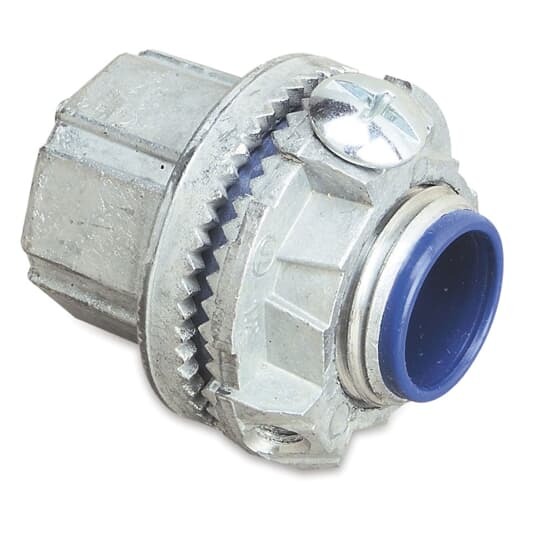

H125GR-TB T&B Grounding Hub With Thermoplastic Insulated Throat, 1-1/4 in Trade, Thread Connection, Locknut Installation, Zinc

T&B® ABB

Product Details

T&B® Grounding Hub, 1-1/4 in, Thread, Locknut Installation, 1/4 in Dia Throat, Zinc, 2-3/8 in Dia x 1-7/8 in L

Suitable for hazardous locations use in class I, Division 2, class II, Division 1 and 2, class III, Division 1 and 2 per NEC 501-4(b), 502-4 (a) and 503-3 (a)
Suitable for hazardous locations use in class II, groups E, F, G and class III locations per CEC 18-202, 18-252, 18-302, 18-352
T and b grounding hub has a trade size of 1-1/4 in and is made durable zinc
It comes with molded thermoplastic insulating throat to protect wire abrasion and an embedded nitrile ring to ensure watertight seal
Hub includes hexagonal/angled locknut with 30 deg space between spline enables easy application of torque by wrench or screwdriver that ensures quick/easy installation

Specifications

Identifiers
Manufacturer Part Number	H125GR-TB
GTIN	00786210913698

Identifiers
UPC	786210913698
EAN	5415022435597

General Information
Standards Approvals	UL E23018, CSA
Application	For rigid and IMC conduit
Includes	Thermoplastic Insulating Throat and Nitrile Buna-N Sealing Ring

Dimensions
Dimensions	2-3/8 in Dia x 1-7/8 in L

Technical Information
Material	Zinc

Technical Information
Specifications	1/4 in Dia Throat
