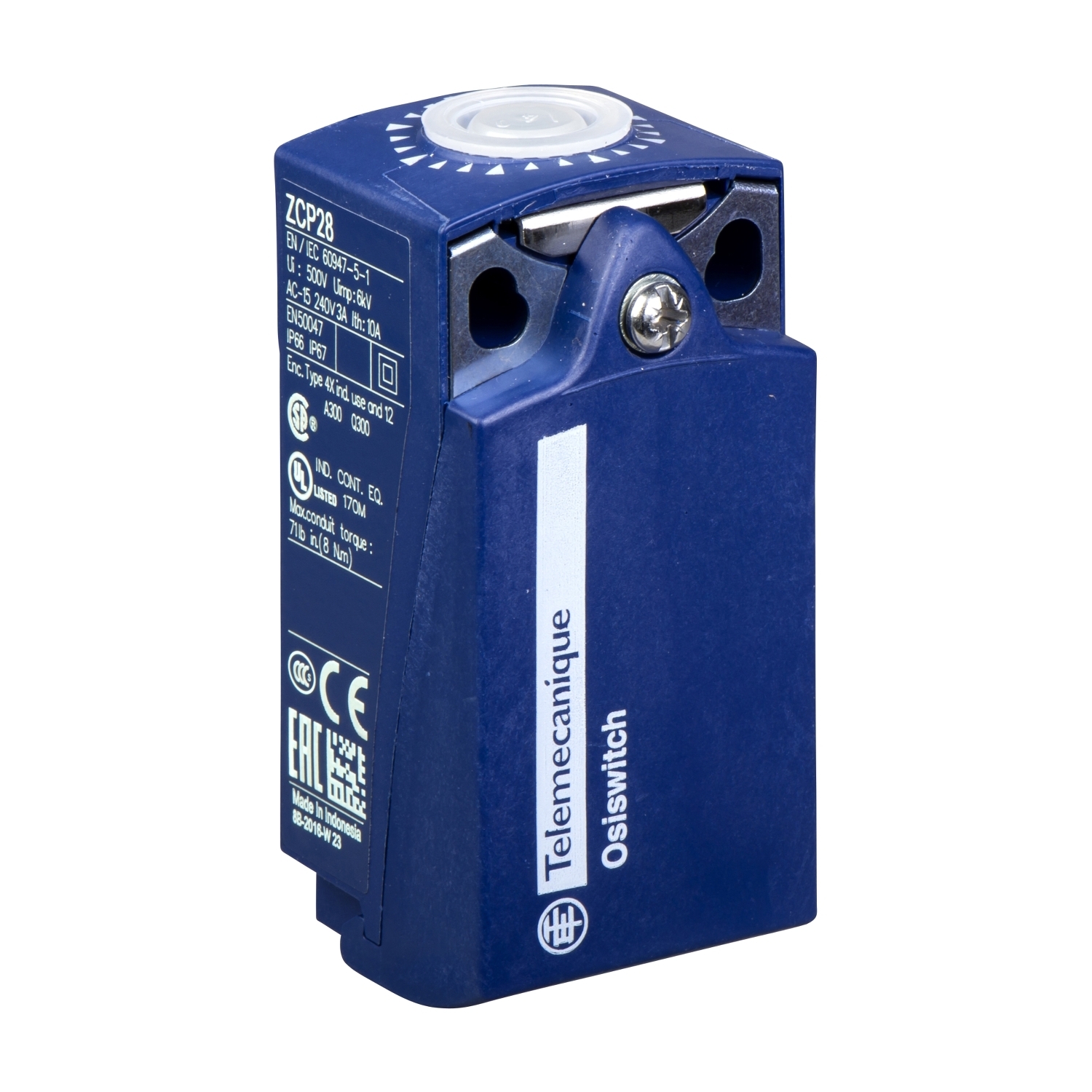

ZCP28 OsiSense XC 2-Pole Fixed Limit Switch Body, 2NO Contact, For Use With XCKP Standard Compact Limit Switch, 10 A, 1.5 A at 240 V AC, 0.1 A at 250 V DC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCP28
- UPC:
- 785901470816
- Item #:
- 99331
ZCP28 OsiSense XC 2-Pole Fixed Limit Switch Body, 2NO Contact, For Use With XCKP Standard Compact Limit Switch, 10 A, 1.5 A at 240 V AC, 0.1 A at 250 V DC Contact
- MFR #:
- ZCP28
- UPC:
- 785901470816
- Item #:
- 99331

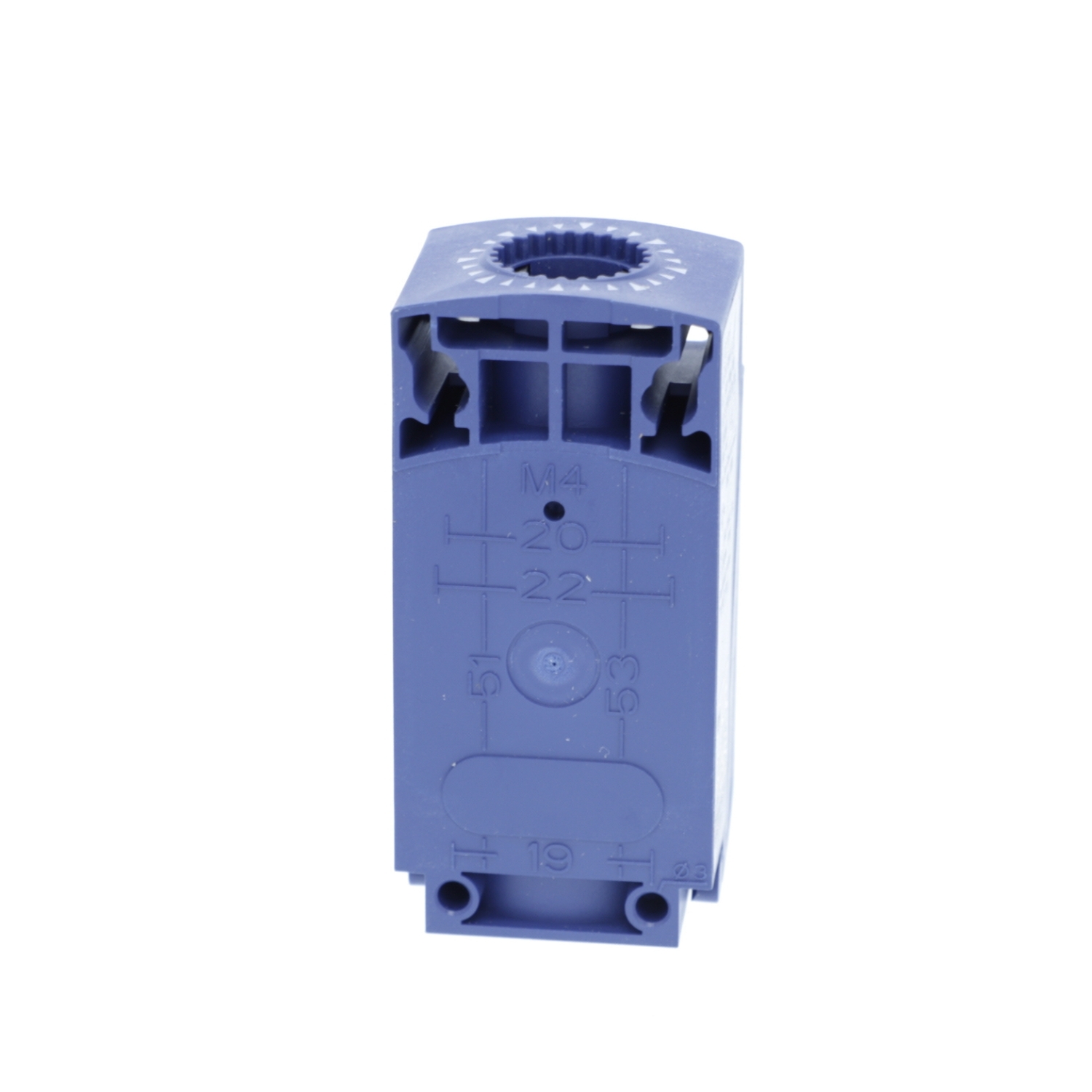

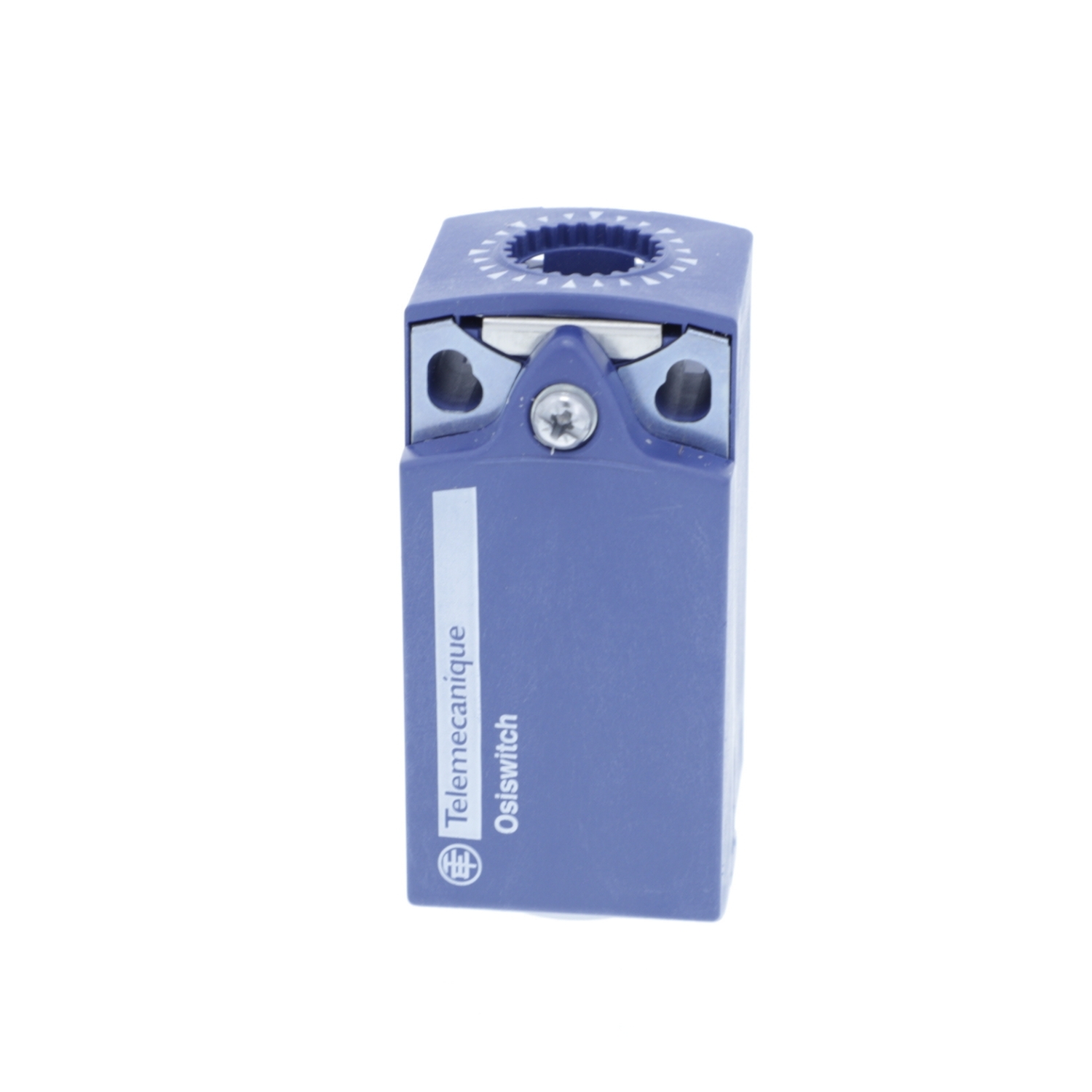

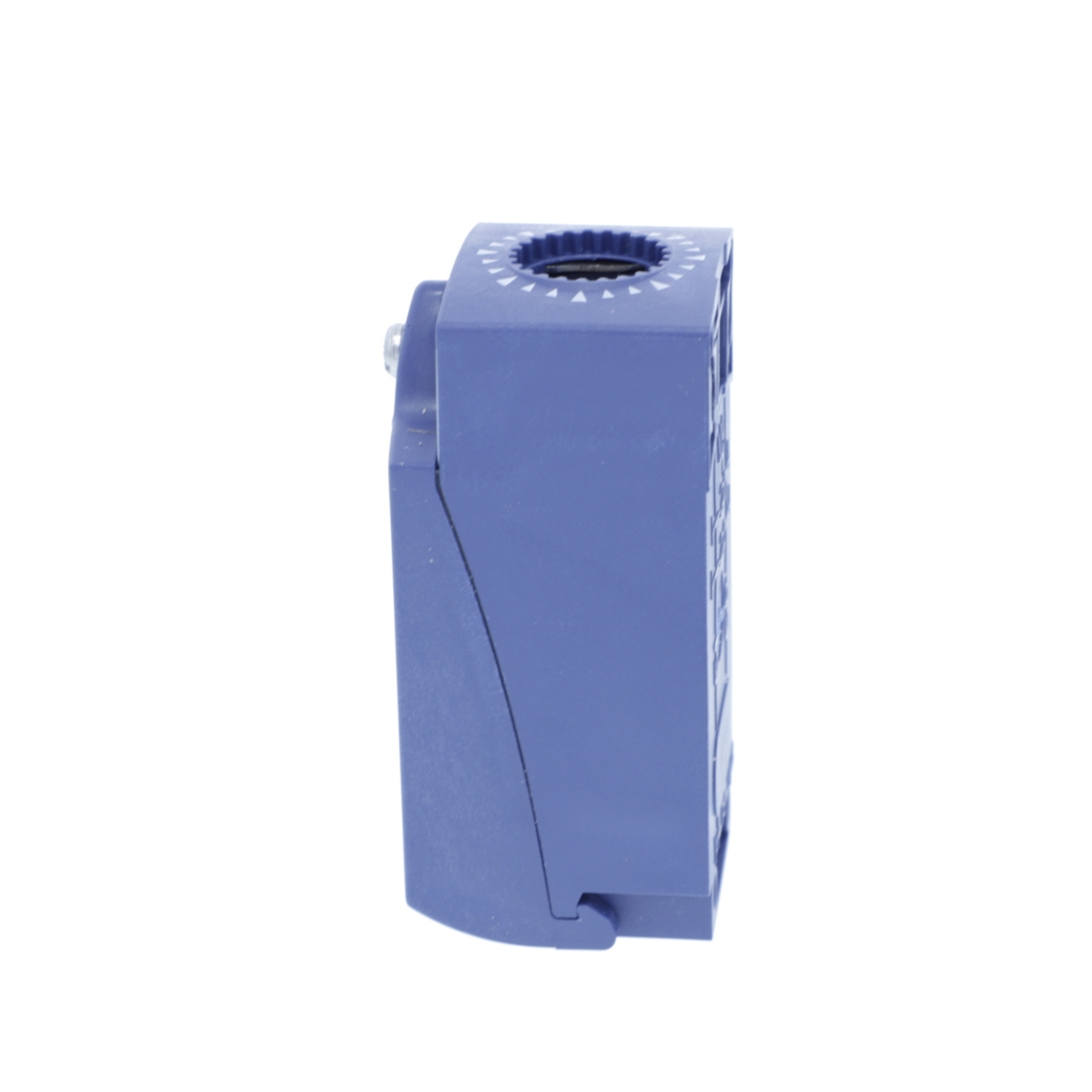

This ZCP body/contact assembly has standard contacts and a plastic body. It has 2 x NO simultaneous (slow break) contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Manuals & Documentation
| Catalog Number | ZCP28 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Japan |
| Made in USA | No |
| Action | Slow-break, simultaneous |
| Amperage Rating | 10 |
| Application | XCKP |
| Connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Contact Configuration | 2 NO |
| Operating Cycles | 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| Standard | IEC, UL LISTED, CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880402&lang=en-us |
| UPC | 785901470816 |
| GTIN | 03389110181487 |
| Item Type | Limit switch body |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
