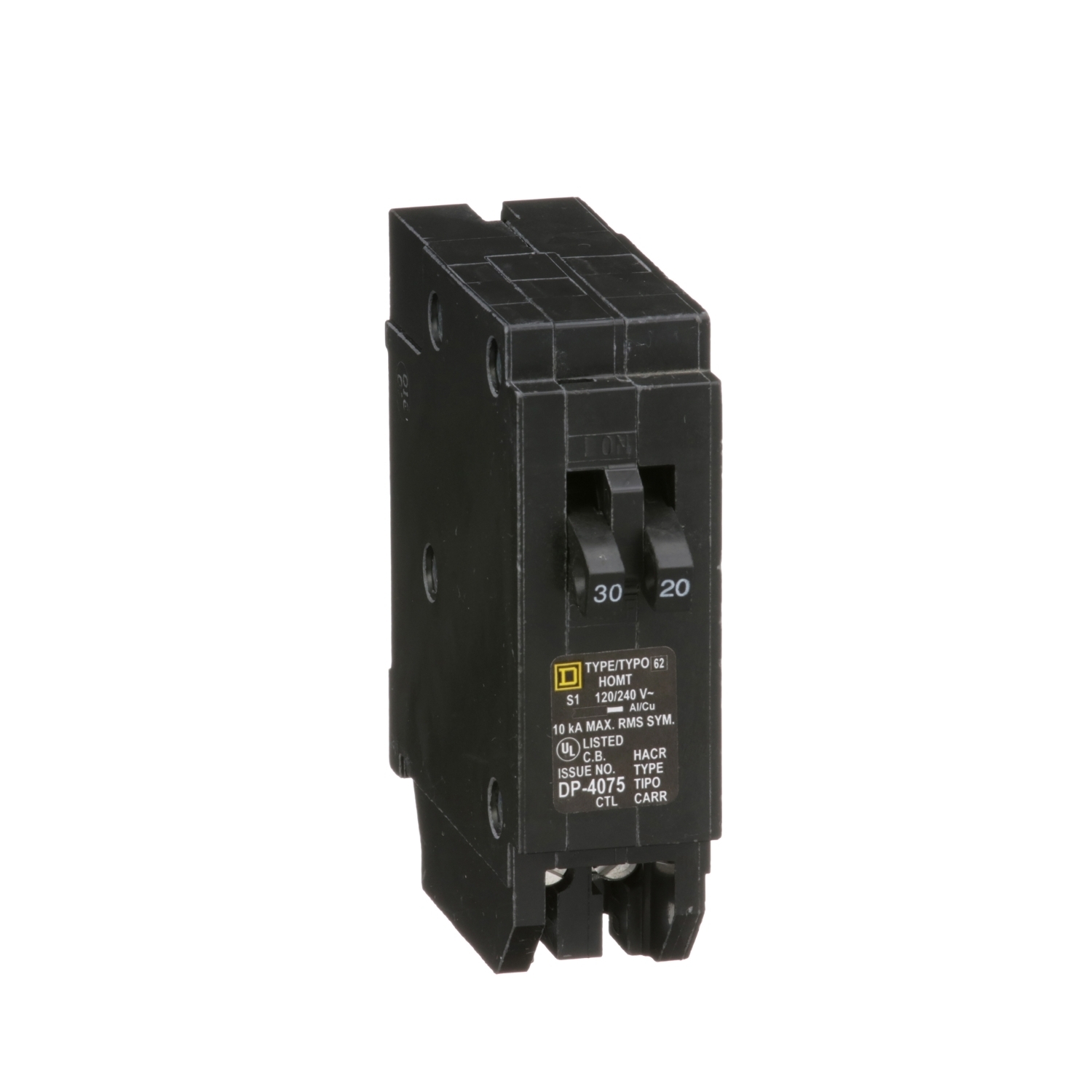

HOMT3020 Homeline Tandem circuit breaker, Homeline, 1 x 1 pole at 30A, 1 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL

MFR:
Schneider Electric
MFR #:
HOMT3020
UPC:
785901706366
Item #:
98804

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM miniature tandem breaker with plug in mounting is rated 30A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Manuals & Documentation
Catalog Number HOMT3020
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:Lifetime
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398165&lang=en-us
UPC 785901706366
GTIN 00785901706366
Width 1.000000000000000
Width UOM Inch
Height 3.130000000000000
Height UOM Inch
Depth 2.98 IN
Cross Reference Products Eaton BD2030|Eaton BD3020|ITE PCB2030|Schneider HOMT3020|SquareD HOMT3020
