SQUARE D

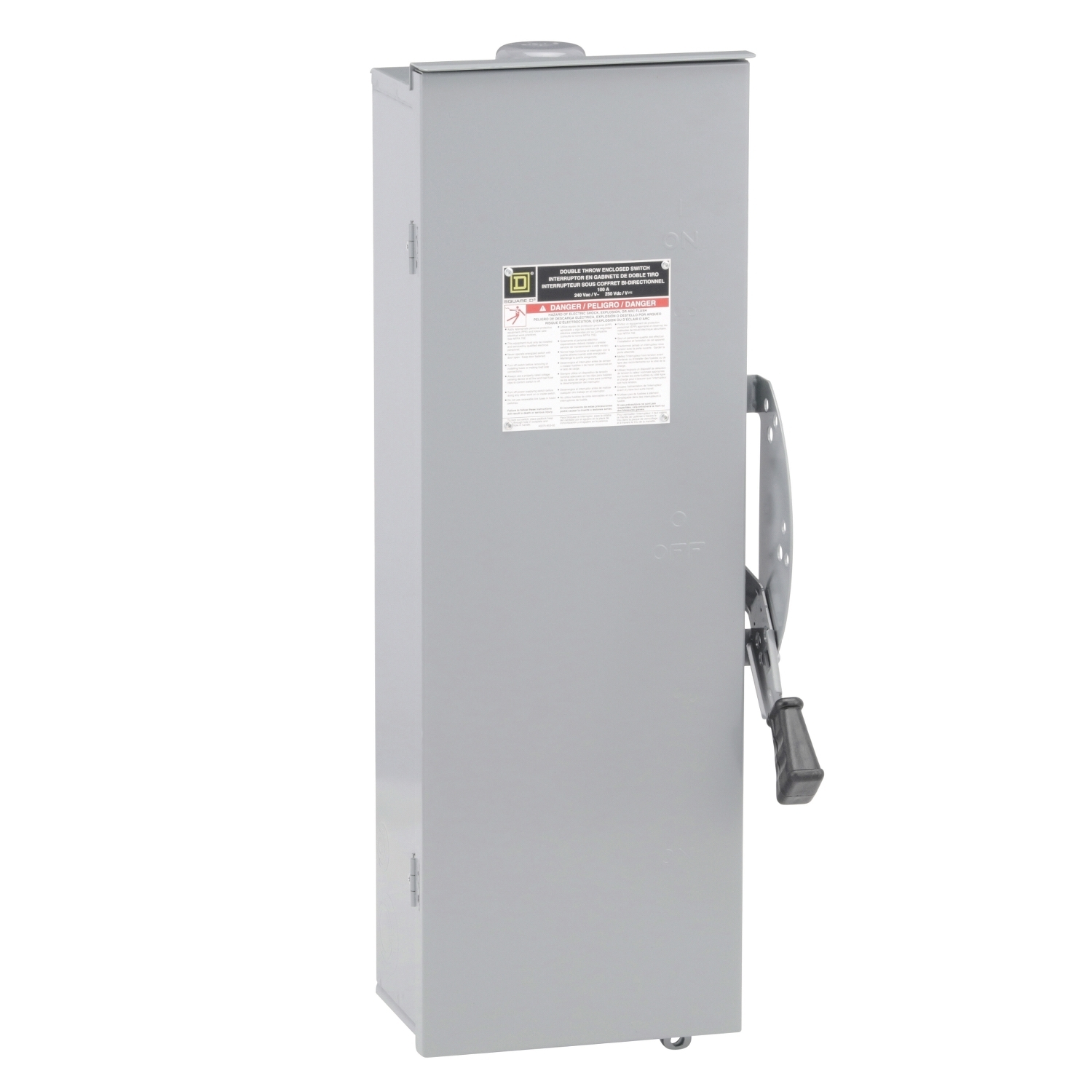

DT223RB F5 Fusible General Purpose Double Throw Safety Switch, 240 V AC/250 V DC, 100 A, 15 hp at 240 VAC 1-Phase, 30 hp at 240 VAC 3-Phase, 20 hp at 250 VDC, 2 Form C DPDT Contact, 2 Poles

MFR:
Schneider Electric
MFR #:
DT223RB
UPC:
785901308508
Item #:
9870

Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a fusible disconnect and has a rated current of 100A for 240VAC and 250VDC. This heavy duty switch has a 2 wire configuration with 2 poles. The device accepts H or K R or J fuse types. The enclosure is surface mounted and is a Type 3R with bolt on provisions. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.

Manuals & Documentation
Catalog Number DT223RB
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Fuse Type H or K;R or J
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=363537&lang=en-us
UPC 785901308508
GTIN 00785901308508
Width 8.12
Width UOM Inch
Height 38.0
Height UOM Inch
Depth 6.6 IN
