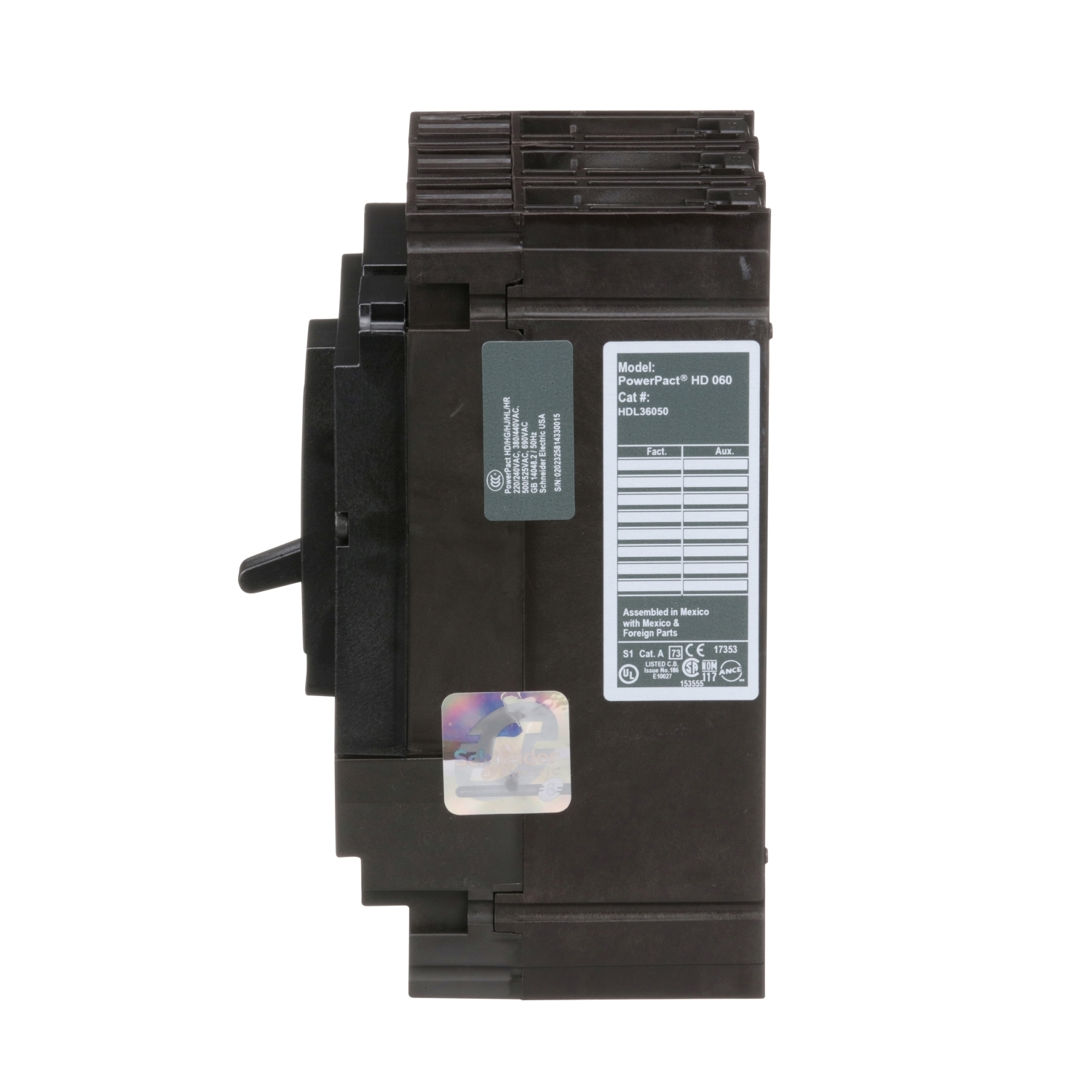

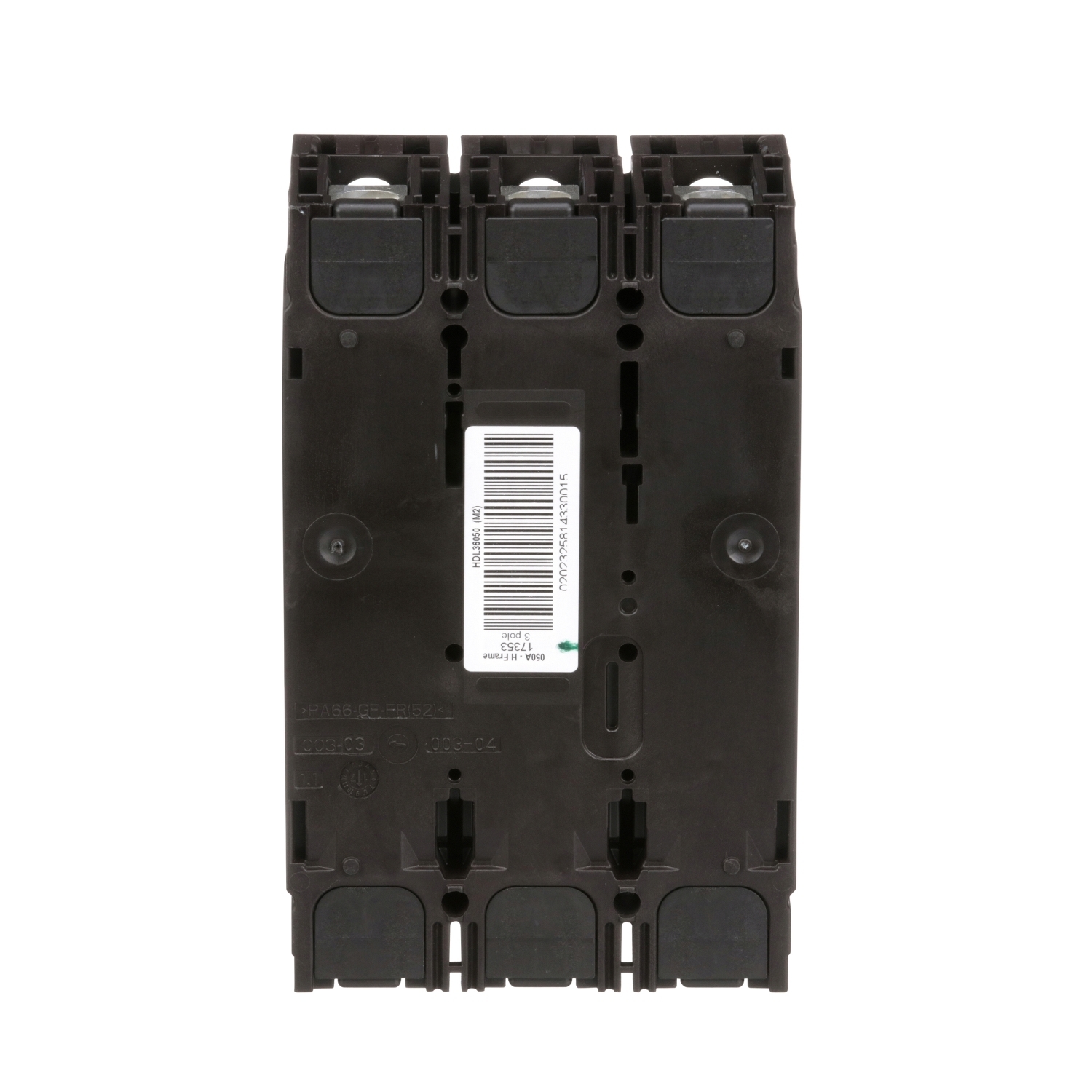

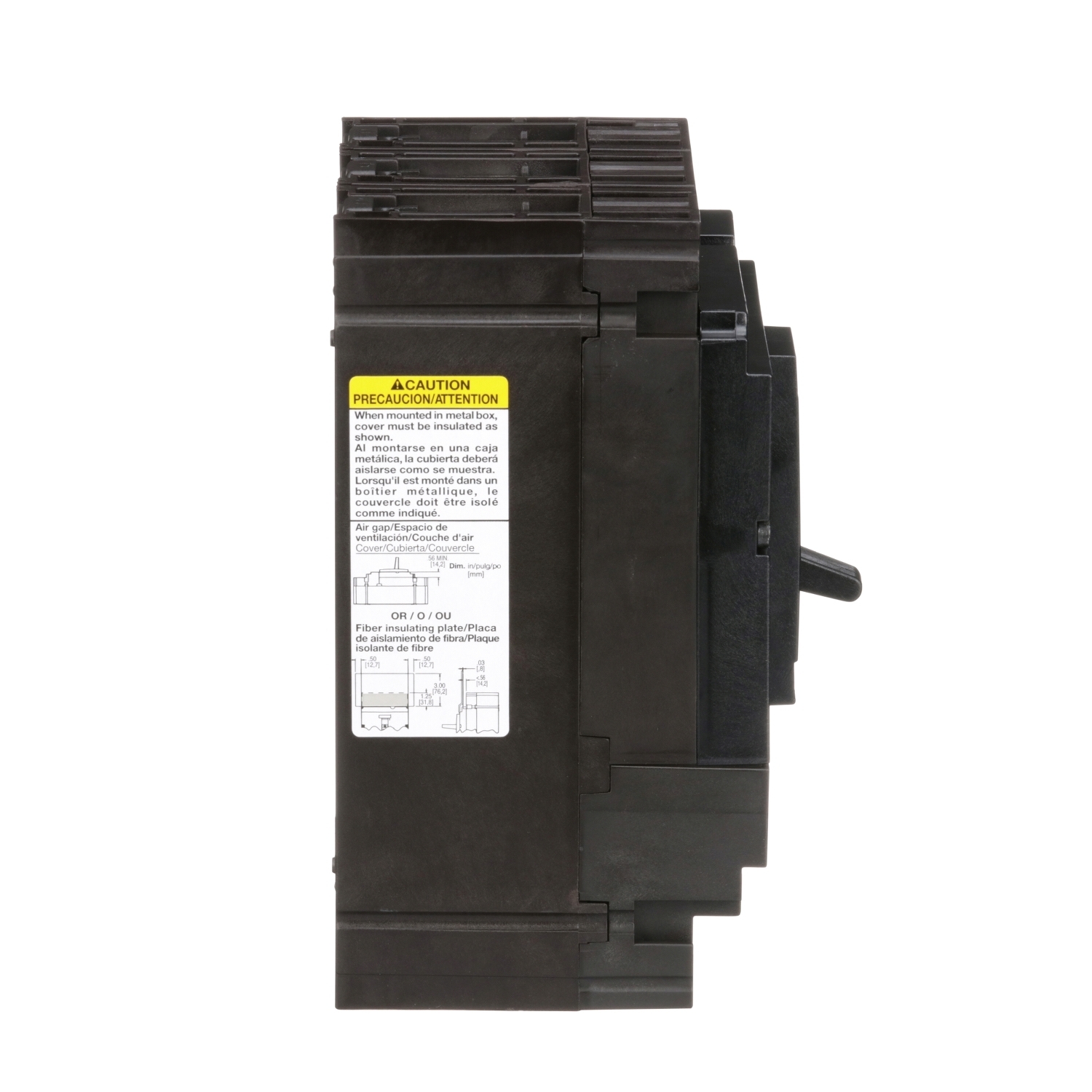

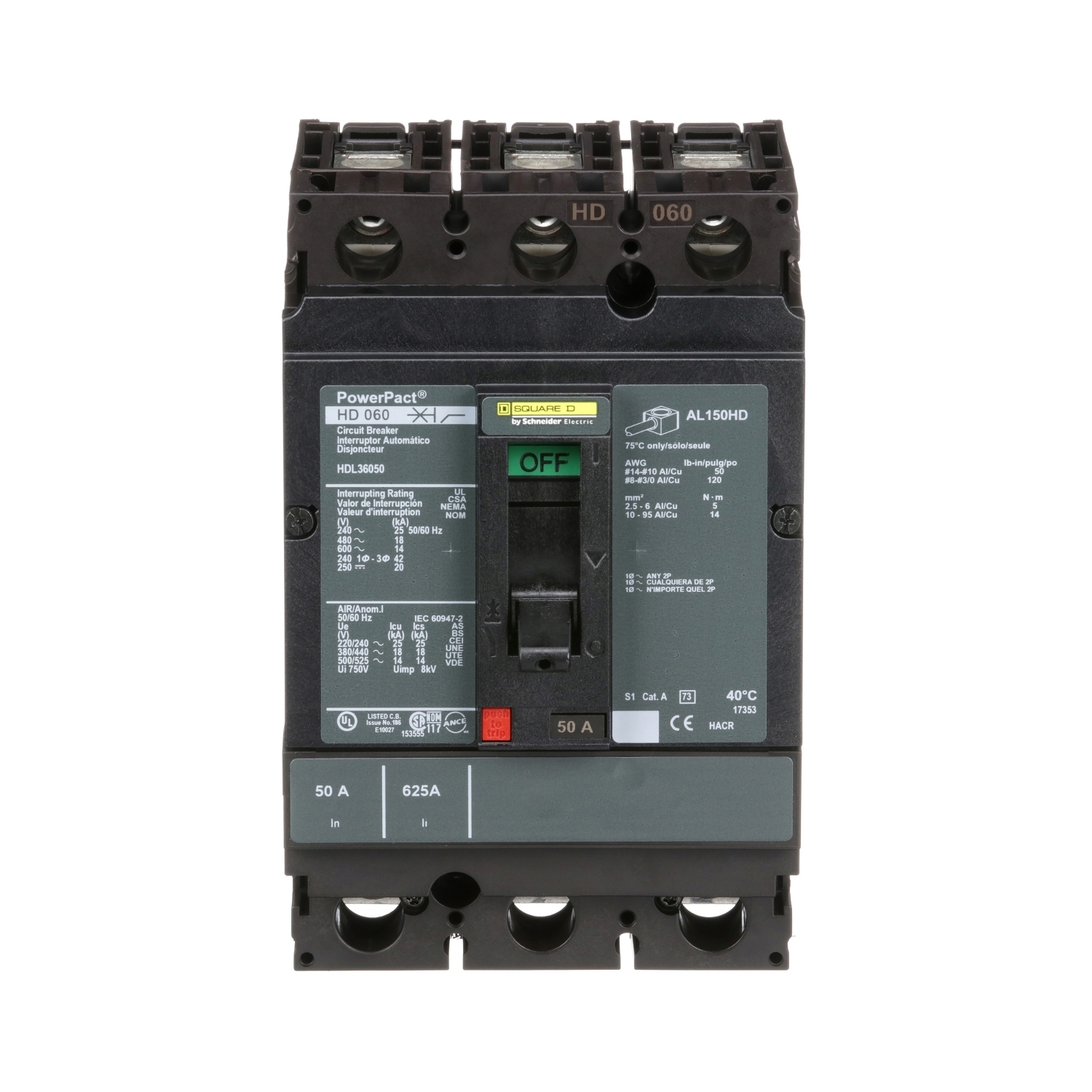

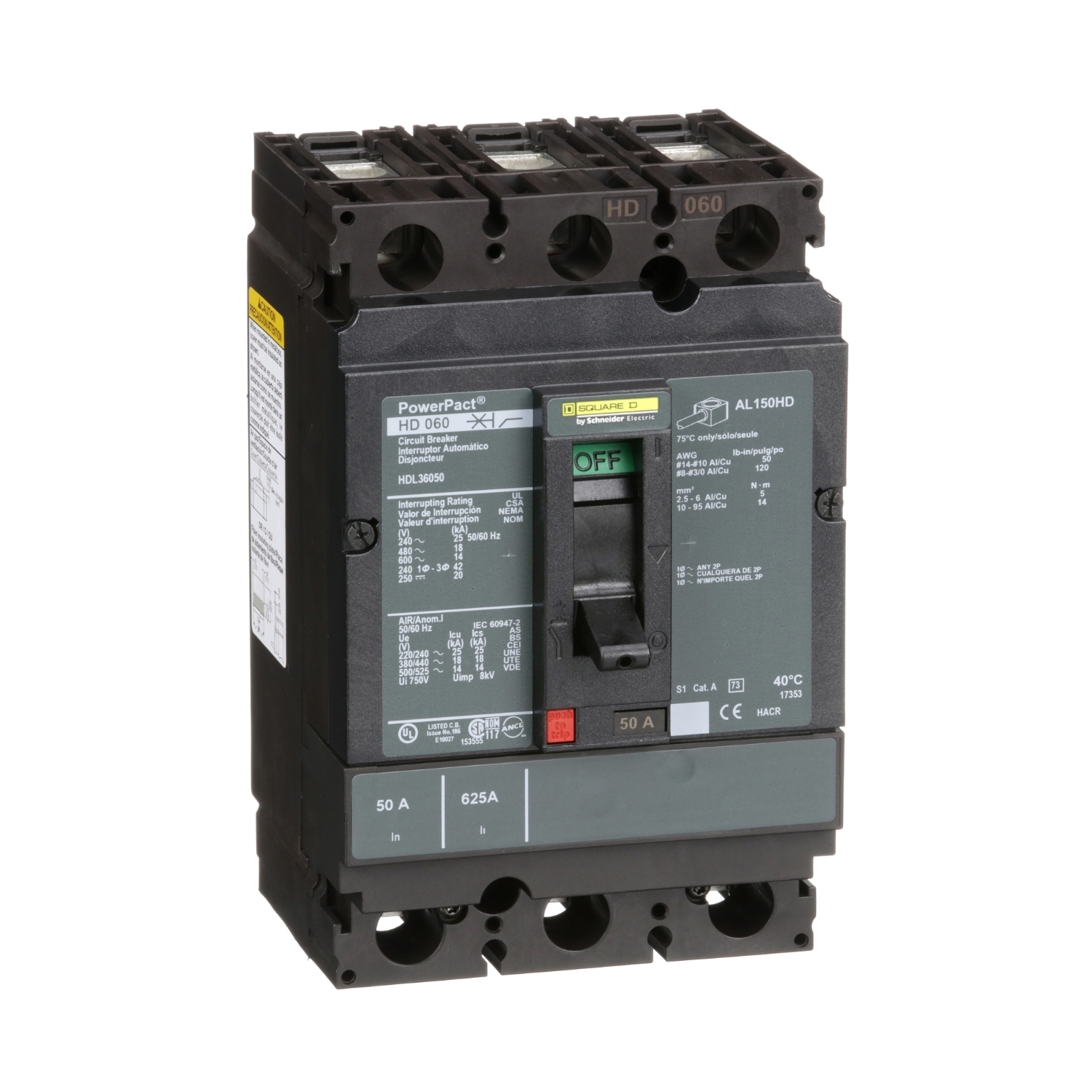

HDL36050 HDL Hda Molded Case Circuit Breaker, 600 V AC/250 V DC, 50 A, 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- HDL36050
- UPC:
- 785901706700
- Item #:
- 98552
HDL36050 HDL Hda Molded Case Circuit Breaker, 600 V AC/250 V DC, 50 A, 25 kA at 240 VAC/18 kA at 480 VAC/14 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- HDL36050
- UPC:
- 785901706700
- Item #:
- 98552
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 50A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | HDL36050 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Distribution |
| Color | Black |
| Connection | Lugs, line;lugs, load; AWG 14...AWG 3/0 aluminium/copper terminal |
| Control | Toggle |
| Number of Poles | 3 |
| Special Features | Modbus;Ethernet |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421711&lang=en-us |
| UPC | 785901706700 |
| GTIN | 00785901706700 |
| Item Type | Circuit breaker |
| Trip Type | Thermal-magnetic |
| Cross Reference Products | Delphi ELIN5101193|Eaton EGB305OFFG|Eaton EHD3050|Eaton FDB3050|Eaton GD3050|FujiElect SA53RCUL50|Grainger 5B859|Rockwell 140UH2C3C50|Rockwell CQD350|Rockwell S1N050TL |
