SQUARE D

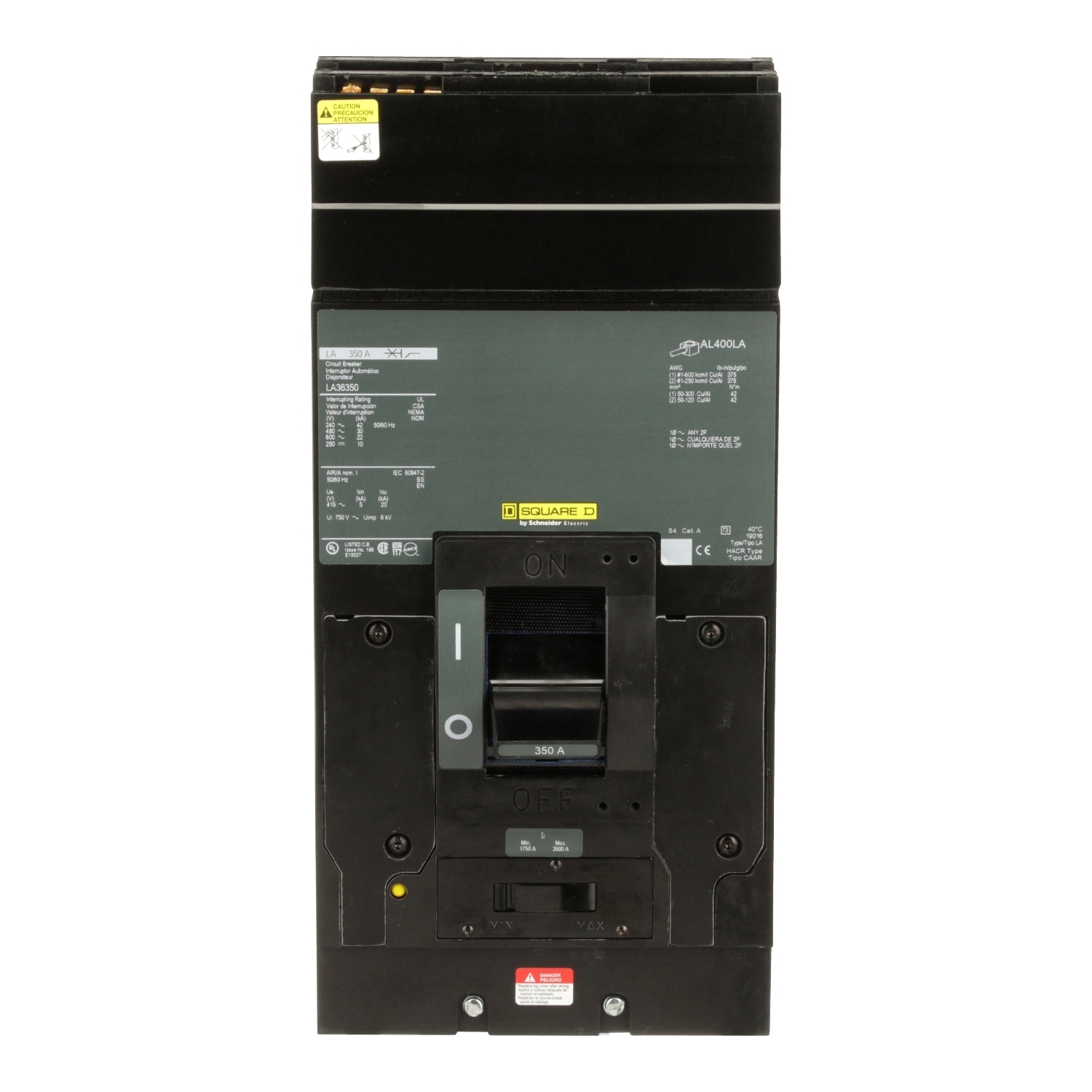

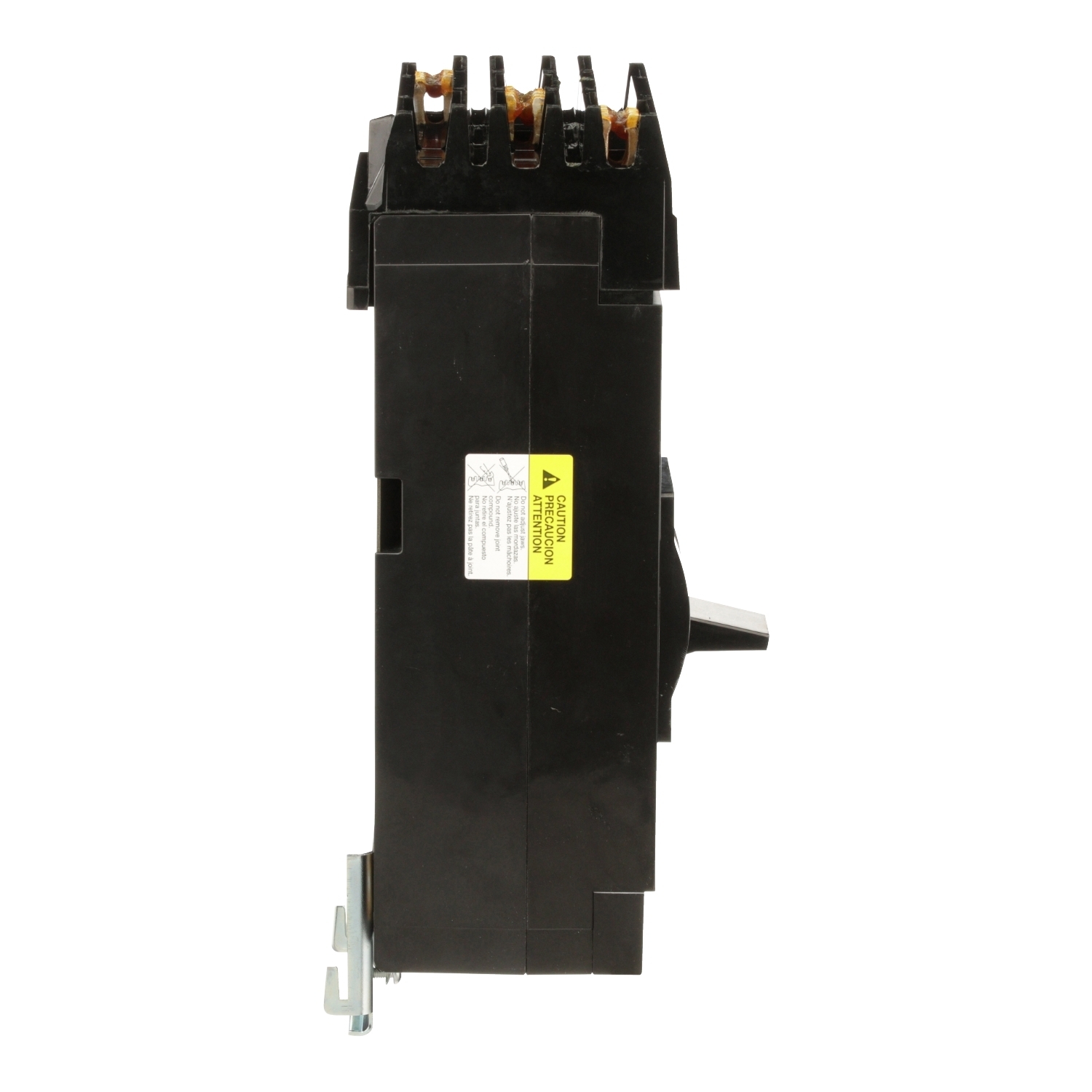

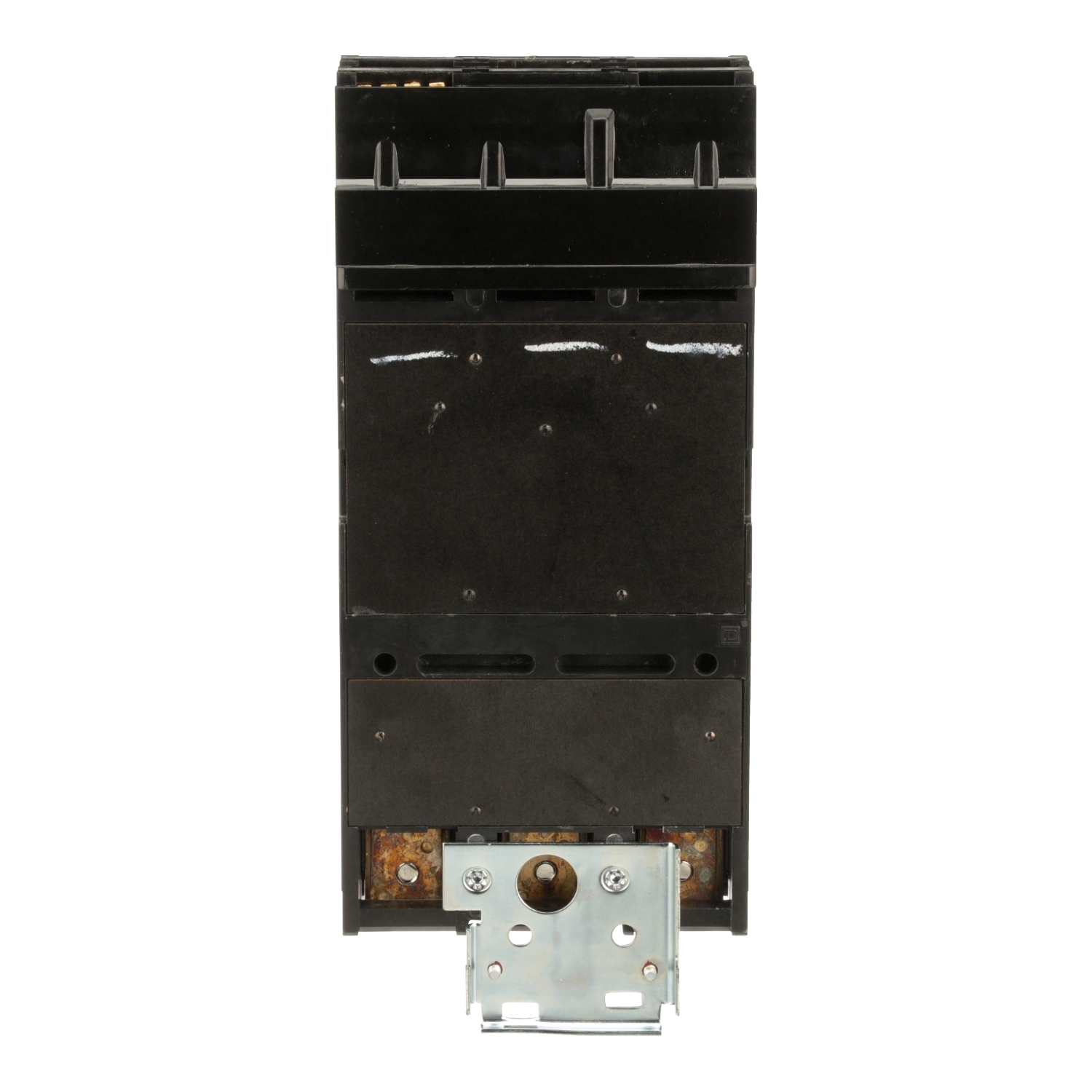

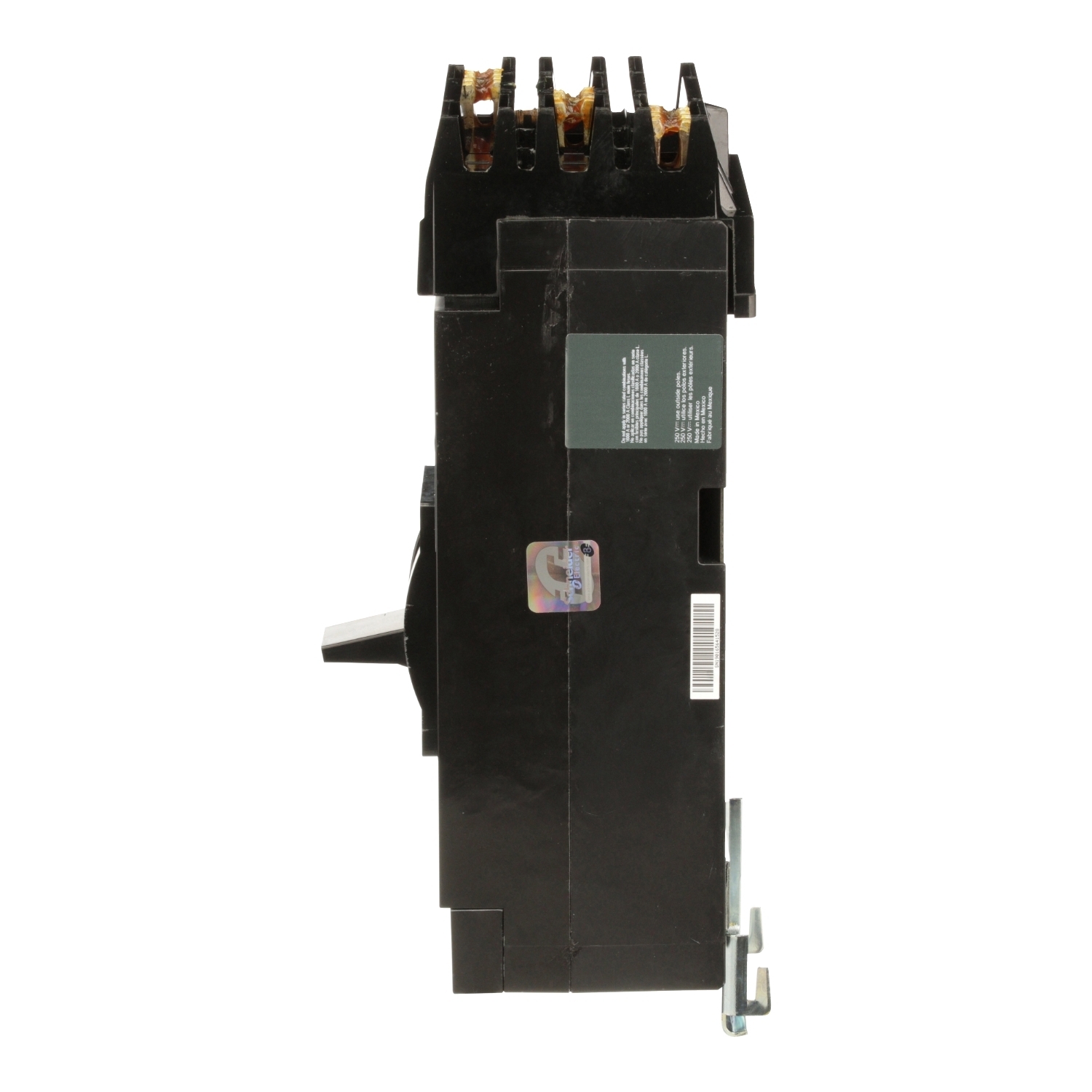

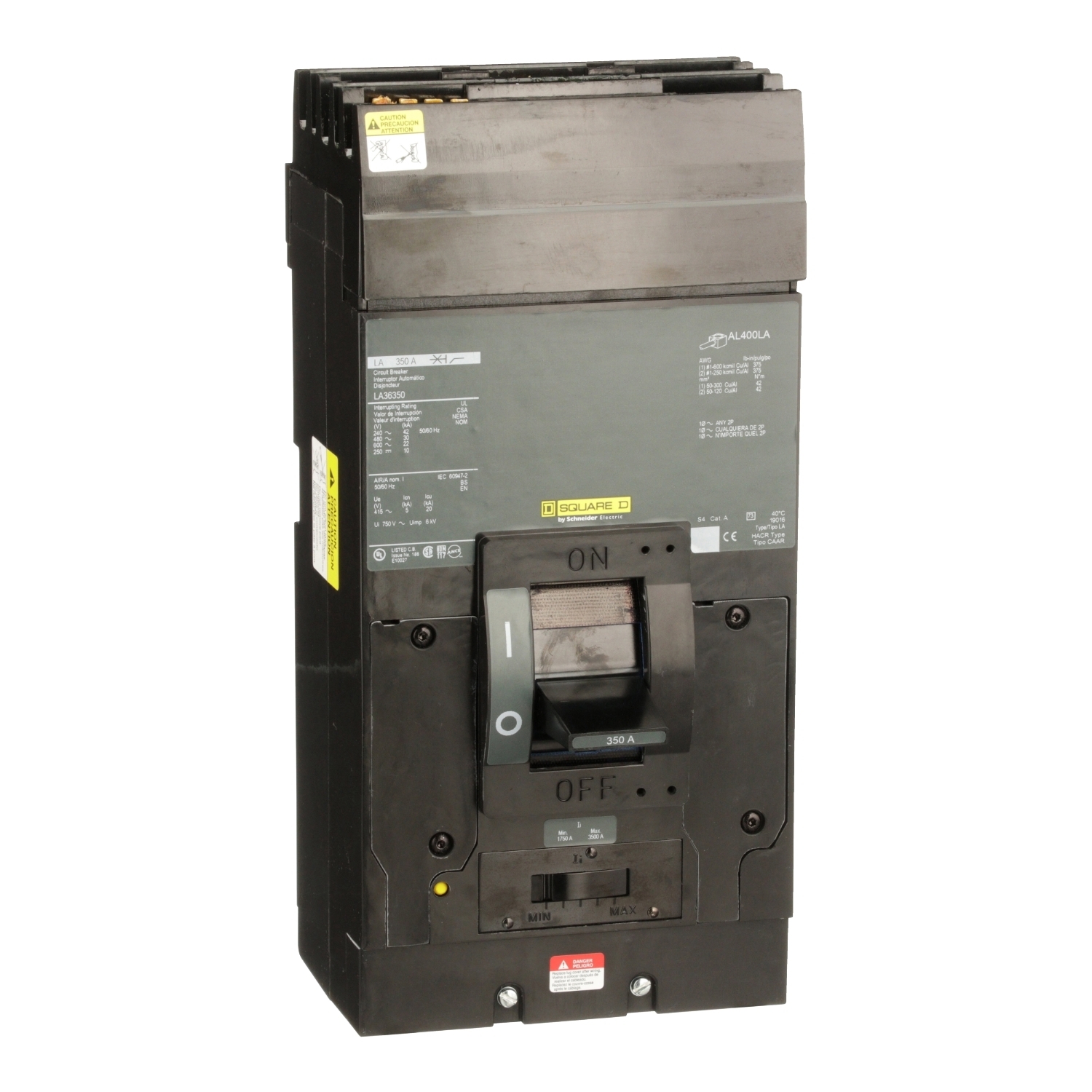

LA36350 Molded Case Circuit Breaker, 350 Amp, 3 Pole, 600V

MFR:
Schneider Electric
MFR #:
LA36350
UPC:
785901426288
Item #:
98456

Square D-brand I-Line circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 4001200 A main lugs only and 1001200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This I-Line, circuit breaker is a 3P breaker with a rated current of 350A. This product has a breakning capacity of 22kA@600VAC. This breaker has a thermal-magnetic trip unit trechnology. This product complys to UL listed & CSA standards. With a magnetic hold current of 1750A and a magnetic tripping current of 3500A. Dimensions for this product are 11 in (H), 6 in (W), 5.84 in (D).

Manuals & Documentation
Catalog Number LA36350
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=427351&lang=en-us
UPC 785901426288
GTIN 00785901426288
Width 6.0
Width UOM Inch
Height 11.0
Height UOM Inch
Depth 5.84 IN
