Broan-NuTone

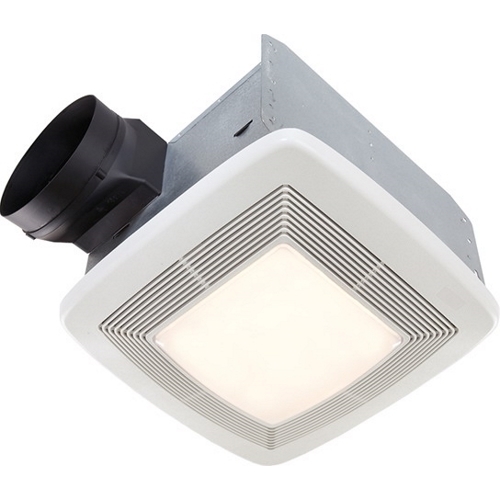

Broan QTXE Series 80 CFM Ventilation Fan Light, 36W Fluorescent Lighting, 4W Nightlight, 0.3 Sones; ENERGY STAR Certified

MFR:
Broan-NuTone
MFR #:
QTXE080FLT
UPC:
026715171774
Item #:
97998
Manuals & Documentation

Features

  • Energy Star
Catalog Number QTXE080FLT
Manufacturer Broan-NuTone
Brand Broan-NuTone
Country of Origin United States
Made in USA Yes
Application For Bathrooms Up To 75 SQ-FT
Special Features Ultra-quiet, high performance bath fan and light with a modern-styled grille; Plug-in, permanently lubricated motor engineered for continuous operation; Dynamically balanced centrifugal blower wheel for quiet, efficient performance; Maintains a high percentage of rated CFM in less than ideal installations; Innovative design grille with white enamel finish durable steel reflector; Rugged 26 GA galvanized steel construction housing; 6 IN round ducting for superior performance; Watts: 23.3 WTT at 0.1 IN, 23.2 WTT at 0.25 IN; Polymeric duct connector with tapered sleeve and no metallic clatter; Sturdy, easy, four-point mounting directly to joist; Includes unique spacer (patent pending) for mounting to engineered �I� joists; Includes hanger bars to position housing anywhere between 16 - 24 IN on-center joists; Two sets of mounting holes for hanger bars allow flush installation with bottom or top of drywall; Can be mounted in ceilings up to 12/12 pitch; 3 YR warranty
Standard UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit (Ceiling Mount Only) And For Use In Insulated Ceilings (Type IC), HVI 2100 Certified, Energy Star Certified, California Title 24 Complaint
UPC 026715171774
GTIN 00026715171774
Item Type Ventilation Fan
Length 1.3
Length UOM Inch
Width 1.29166
Width UOM Inch
Height 1.18333
Height UOM Inch
Weight 13.05
Weight UOM Pounds
