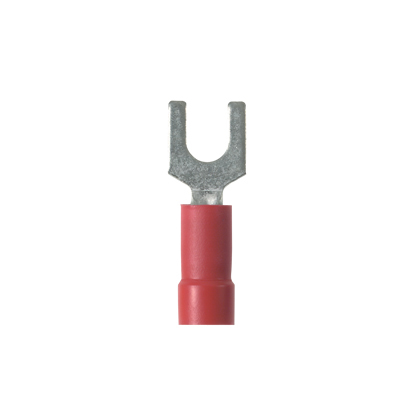

Fork Terminal, vinyl insulated, funnel entry, 22- 16 AWG, #8 stud size, bulk package.
Manuals & Documentation
| Catalog Number | PV18-8F-MY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel Entry |
| Enclosure | Fork shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| UPC | 074983417018 |
| GTIN | 00074983417018 |
| Item Type | Fork Terminal |
| Size | #8 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #16 AWG |
| Cross Reference Products | 3M MV18-10FK|3M MV18-8F-BK|3M MV18-8FK|3M MVU18-8FBK|ABBInstall KV18-8F-M|Ideal 84-712|Panduit PV18-8F-MY|ThomasBett KV18-8F-M |
