SQUARE D

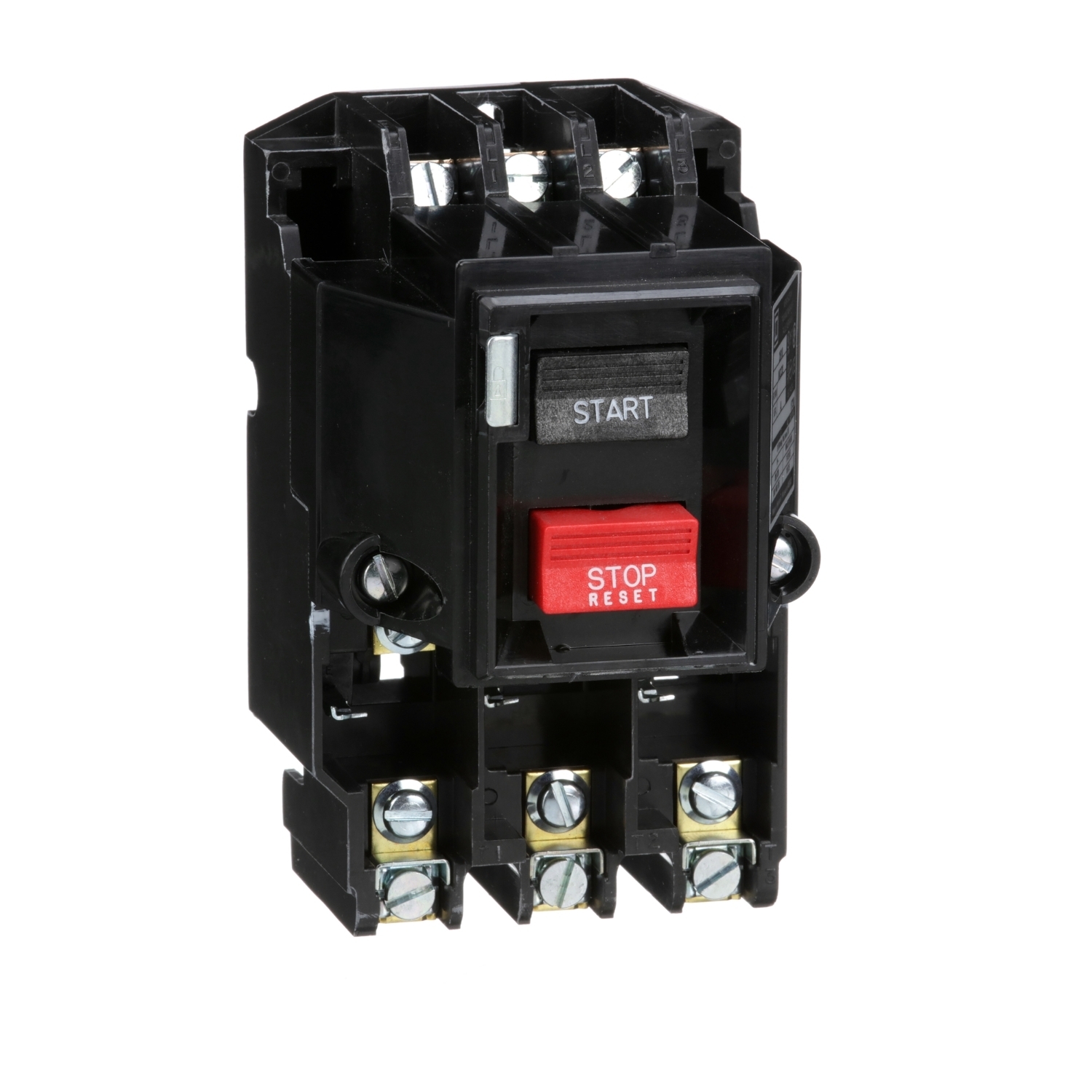

2510MCO3 Type M Integral Horsepower Non-Reversing Starter, 3 Poles, Open Enclosure

MFR:
Schneider Electric
MFR #:
2510MCO3
UPC:
785901792208
Item #:
97496

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1 three pole starter is rated for 7.5 HP at 200-230 VAC and 10 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. This manual motor starter is not supplied with an enclosure. This manual starter is 5.72 inches tall, 3.50 inches wide and 4.03 inches deep. This device weighs 2.20 lbs. 2510M integral horsepower starters are UL listed and CSA certified.

Manuals & Documentation
Catalog Number 2510MCO3
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=506329&lang=en-us
UPC 785901792208
GTIN 00785901792208
Width 3.5
Width UOM Inch
Height 5.72
Height UOM Inch
Depth 4.03 IN
