BURNDY

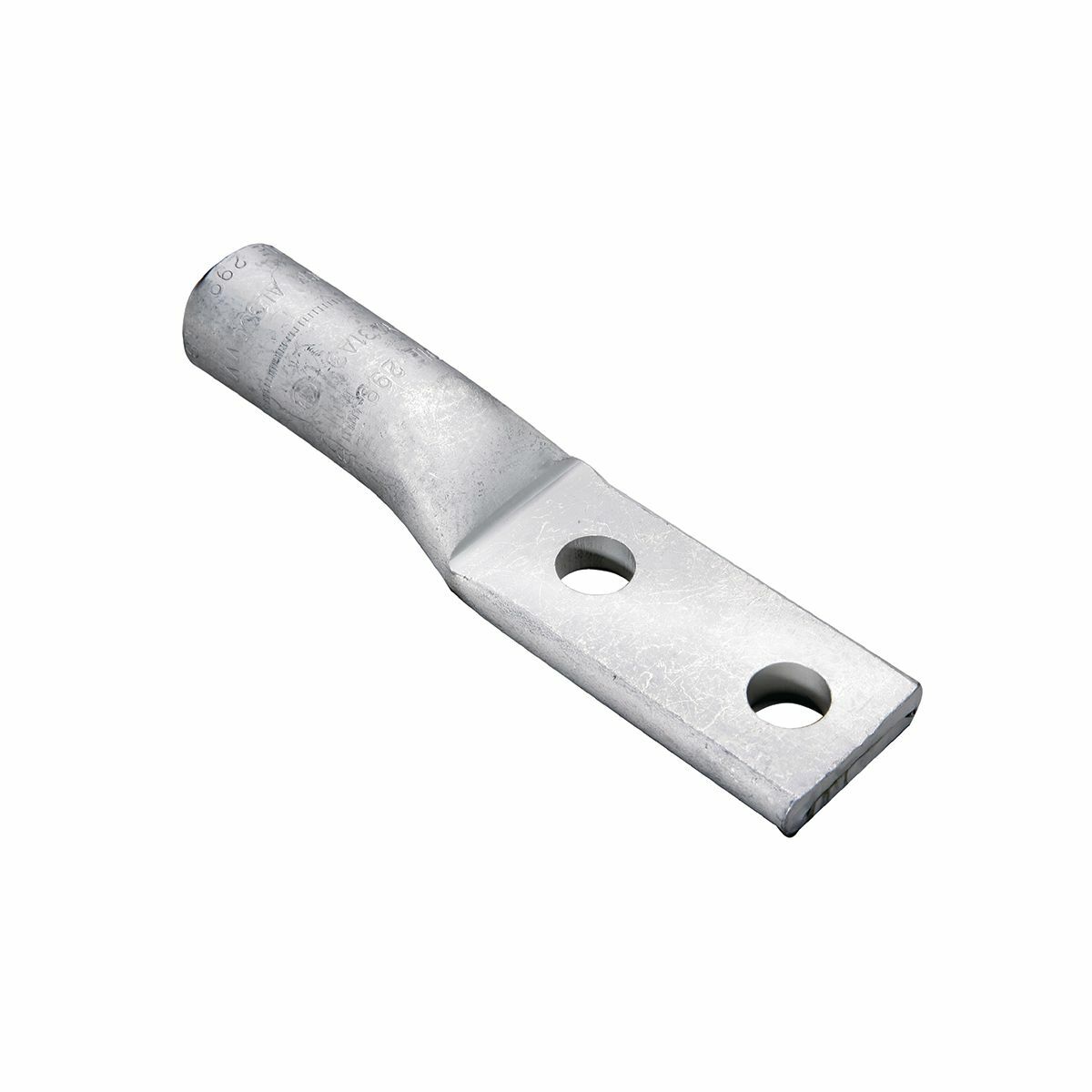

YA25A7 YA-A 2/4-Hole Dual Rated Uninsulated Compression Lug, 1/0 AWG Aluminum/Stranded Copper Conductor, Die Code: 296, 1/2 in Stud, Tin Plated Aluminum

MFR:
Burndy, a Hubbell affiliate
MFR #:
YA25A7
UPC:
781810753118
Item #:
97110
Manuals & Documentation
Catalog Number YA25A7
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Termination
Material ALUMINUM
Special Features Features: For Aluminum And Copper Conductors, 2-Hole And 4-Hole Designs Ul Listed 90 DEG C, 600 V To 35 KV, Type Ya-A 2- And 4-Hole Pads Inhibit Connector Rotation And Increase Area Contact, These Aluminum Terminals Have The Same Design Features And Benefits As The 1-Hole Ya-A , With An Added Stud Hole For A More Secure Termination To Various Types Of Equipment Pads, They Are Dual-Rated For Use On Both Aluminum And Copper Conductors, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, Y46 Tool, U25ART Die, (1), Dieless Tools (number Of Crimps): Mechanical: MY29-3 Tool, (1), Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Wire Strip Length: 1-1/16 IN, Stud Hole (spacing): 1-3/4 IN, Finish: Tin Plated, Temperature Rating: 90 DEG C, Die Index: 296 Element A
Standard UL 486A-486B
UPC 781810753118
GTIN 00781810753118
Item Type YA-A
Voltage Rating 35
Cross Reference Products AL1/0N
