SQUARE D

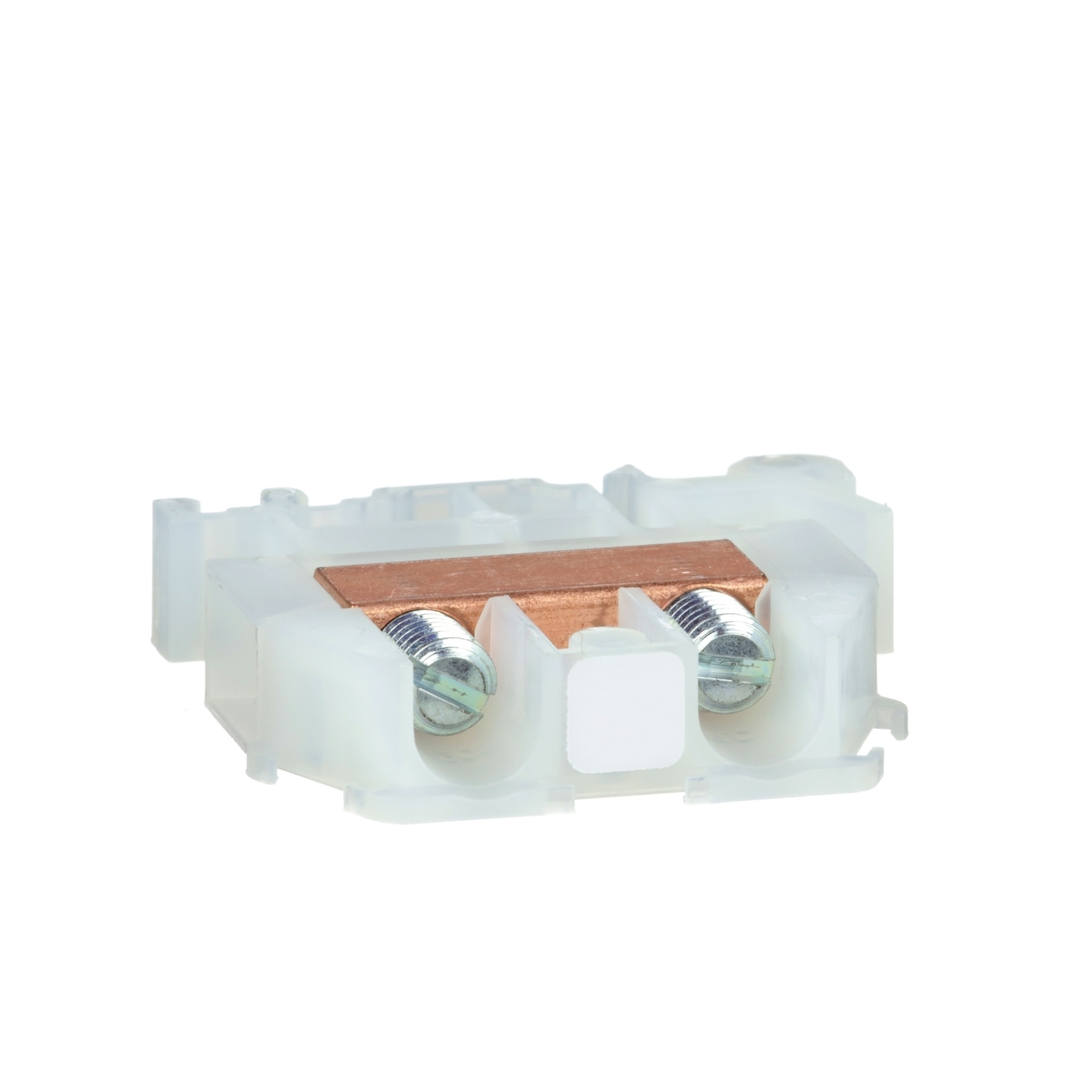

9080GR6 9080G Standard Terminal Block, 600 V AC/DC, 60 A, 22 to 8 AWG Wire, 1 Poles, DIN Rail Mount

MFR:
Schneider Electric
MFR #:
9080GR6
UPC:
785901000716
Item #:
97074

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.

Manuals & Documentation
Catalog Number 9080GR6
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372531&lang=en-us
UPC 785901000716
GTIN 00785901000716
Width 1.72
Width UOM Inch
Height 1.82
Height UOM Inch
Depth 0.35 IN
