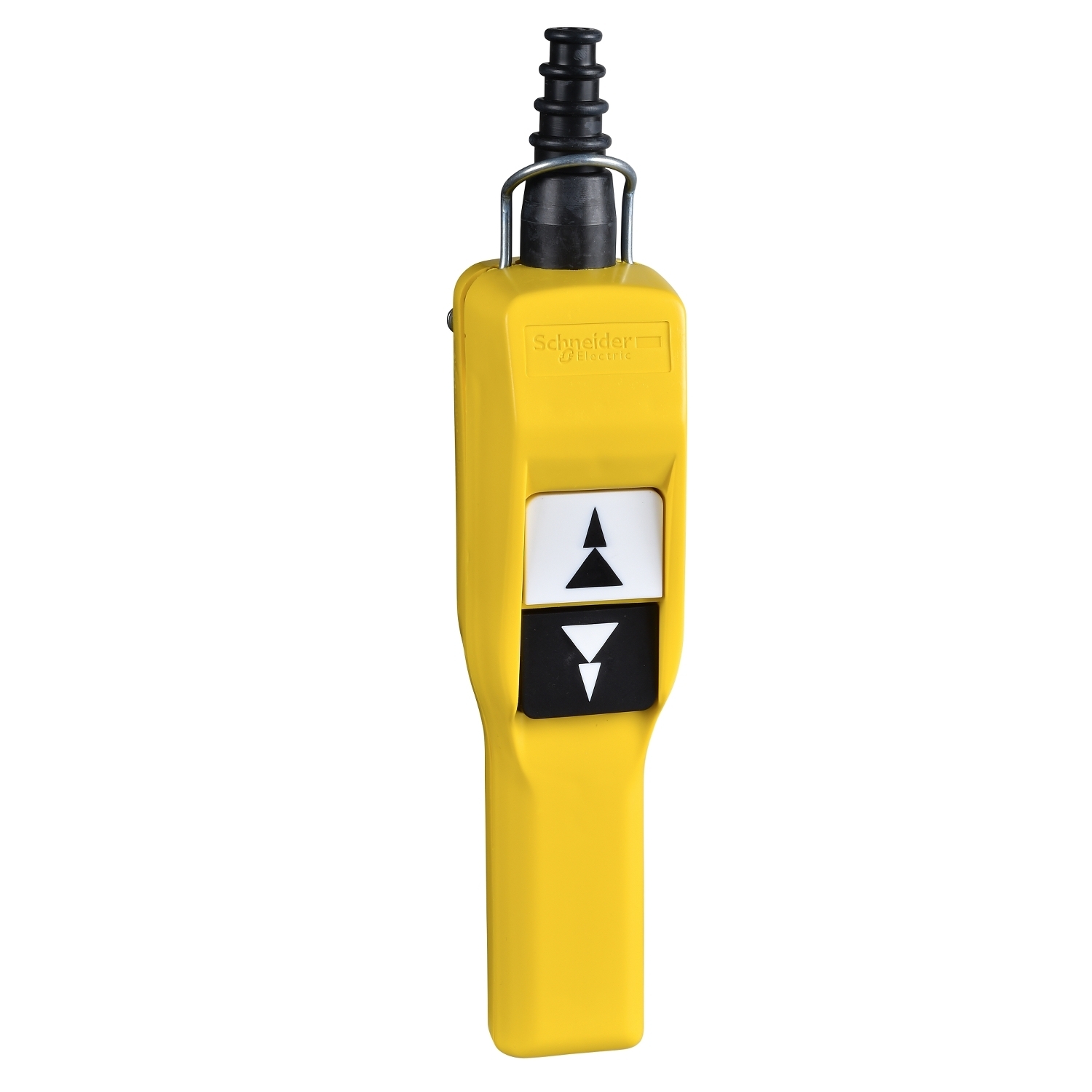

XACA207 XAC XACA Pendant Control Station, 600 V AC, 10 A, 2NO 2 Form A Contact, NEMA 4/4X NEMA Rating
- MFR:
- Schneider Electric
- MFR #:
- XACA207
- Item #:
- 97016
XACA207 XAC XACA Pendant Control Station, 600 V AC, 10 A, 2NO 2 Form A Contact, NEMA 4/4X NEMA Rating
- MFR #:
- XACA207
- Item #:
- 97016

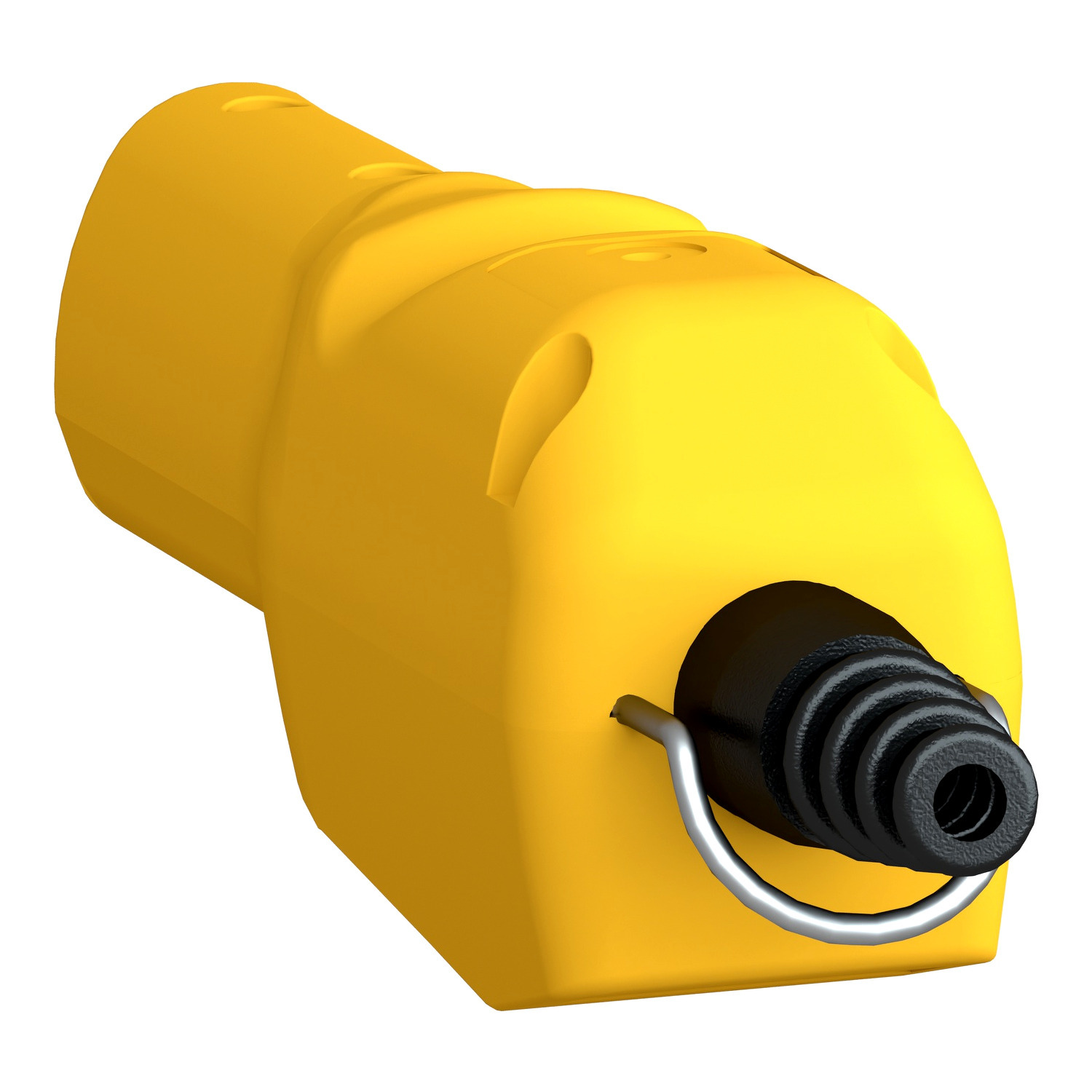

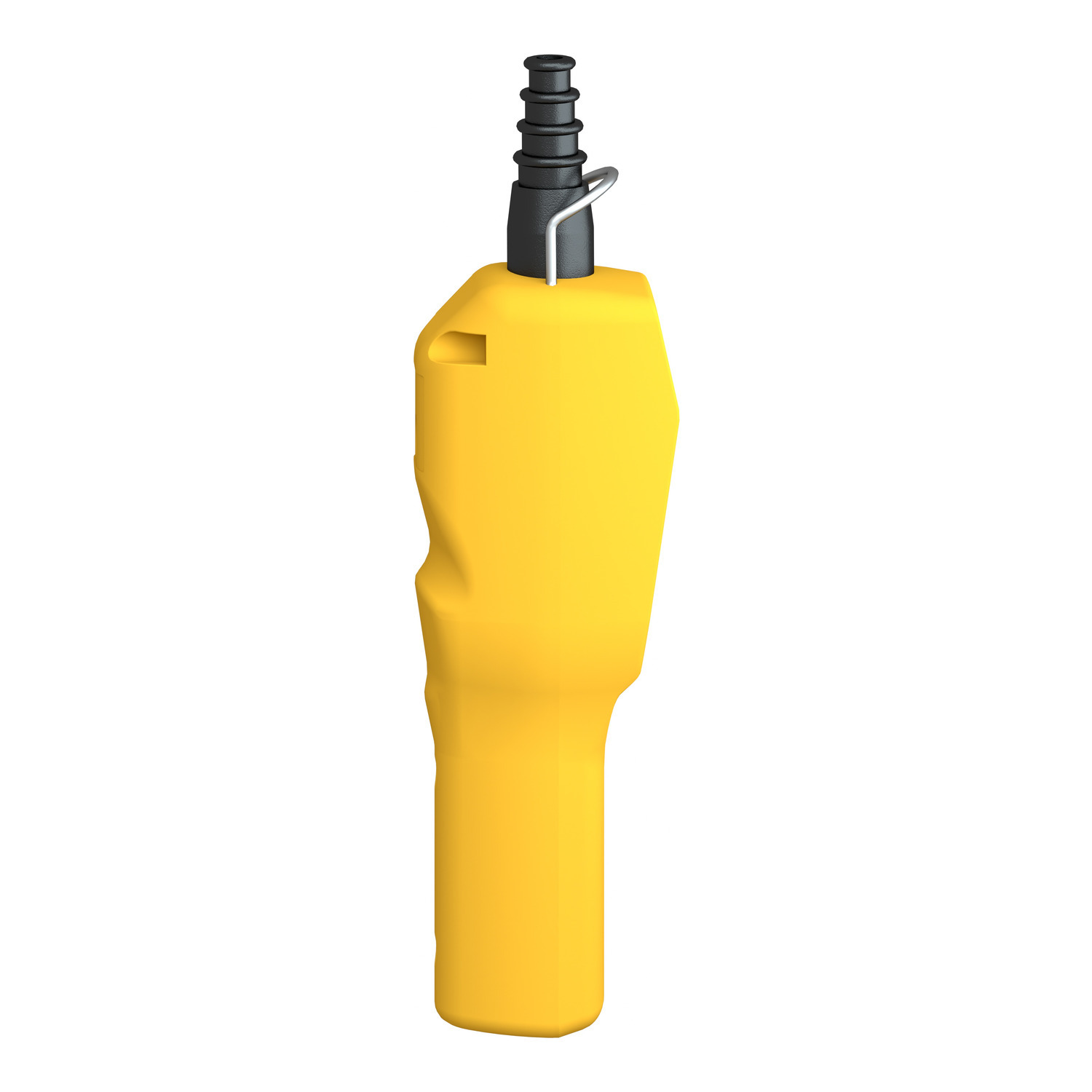

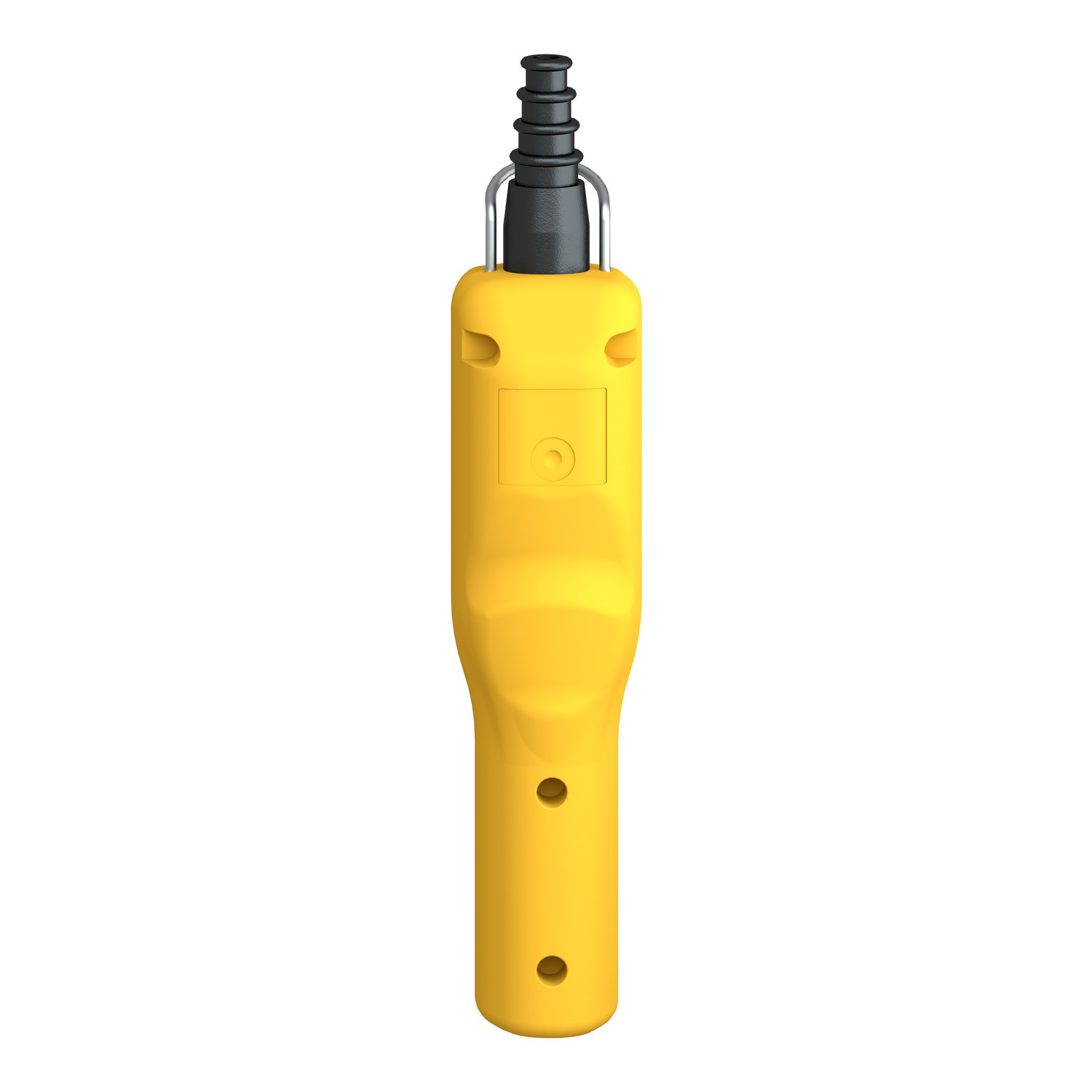

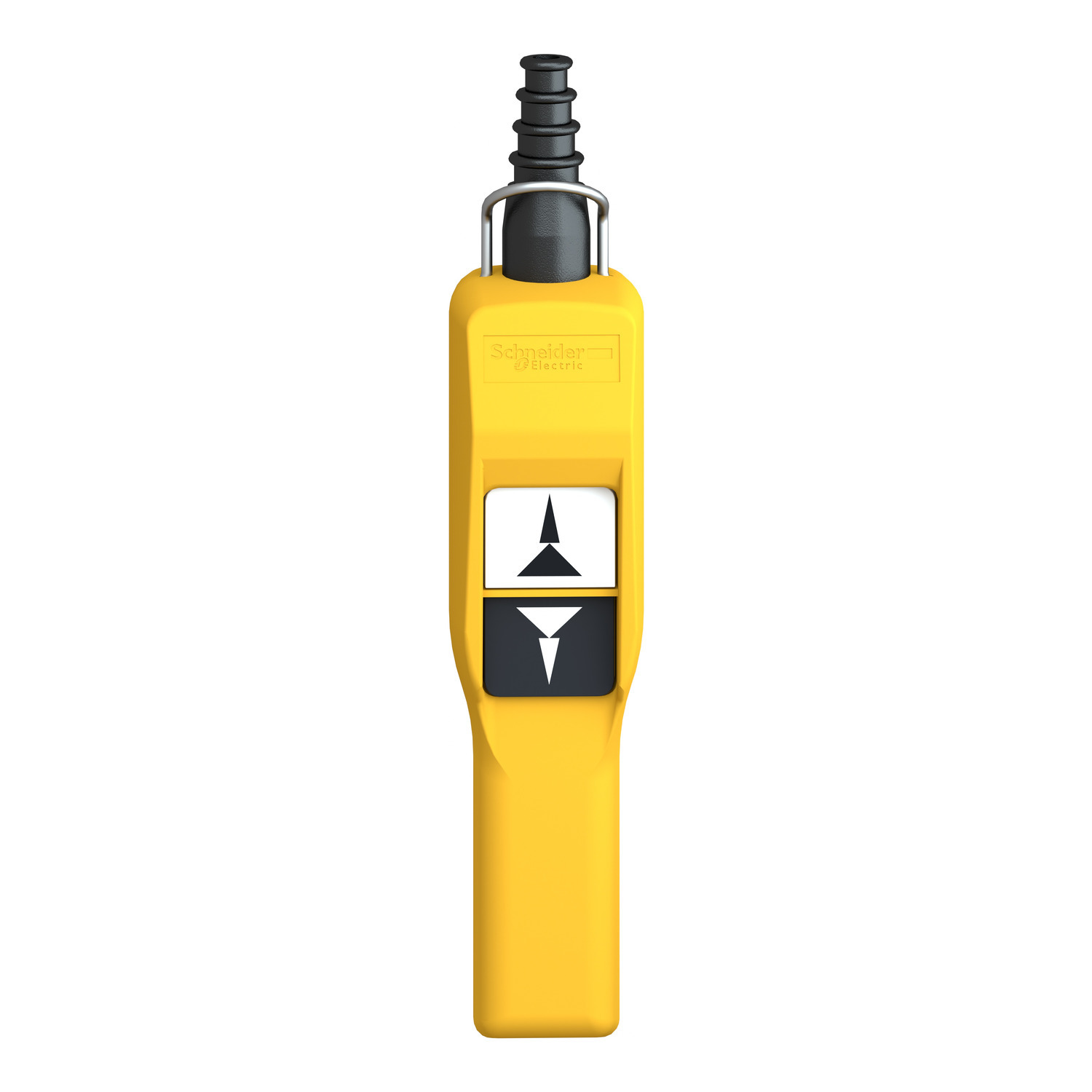

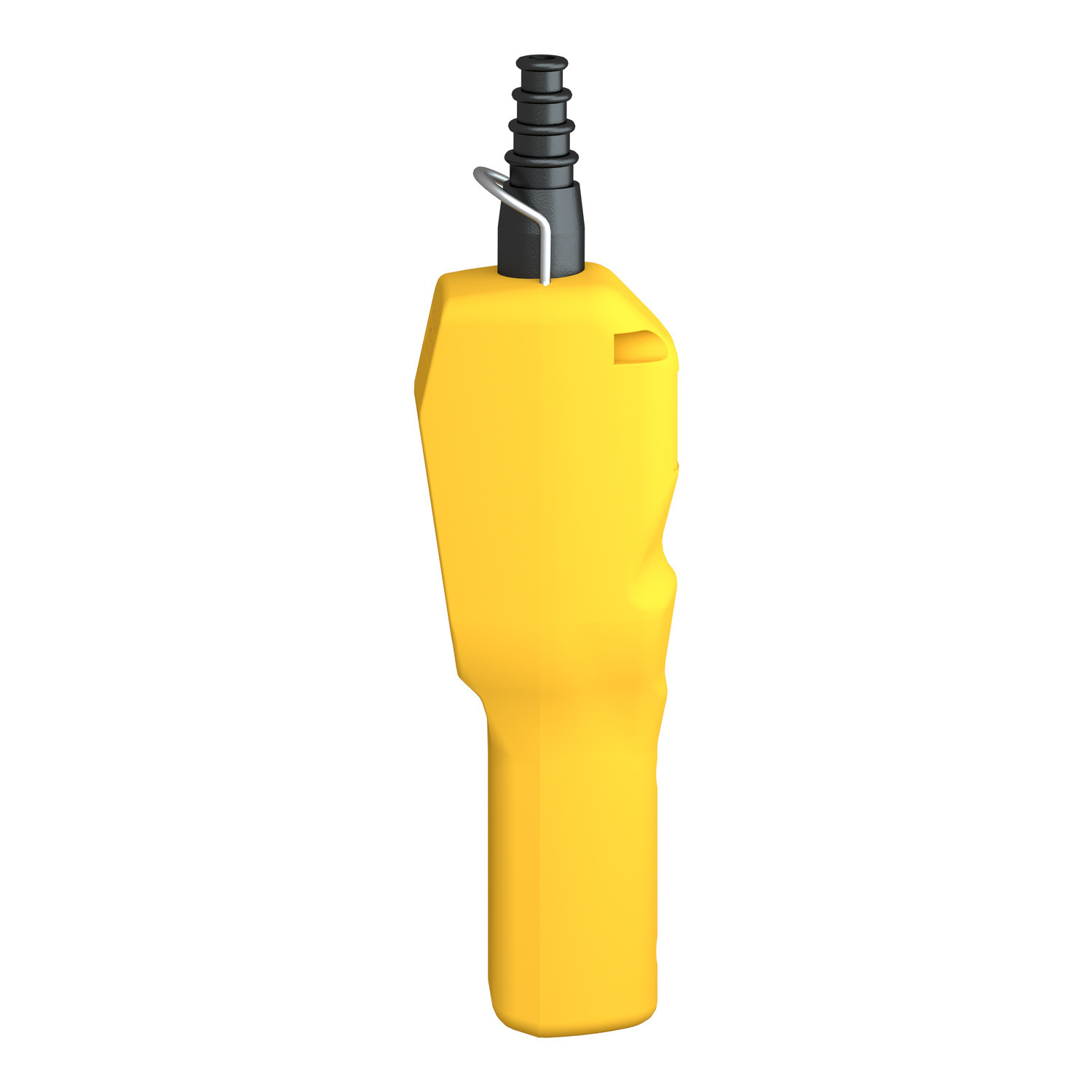

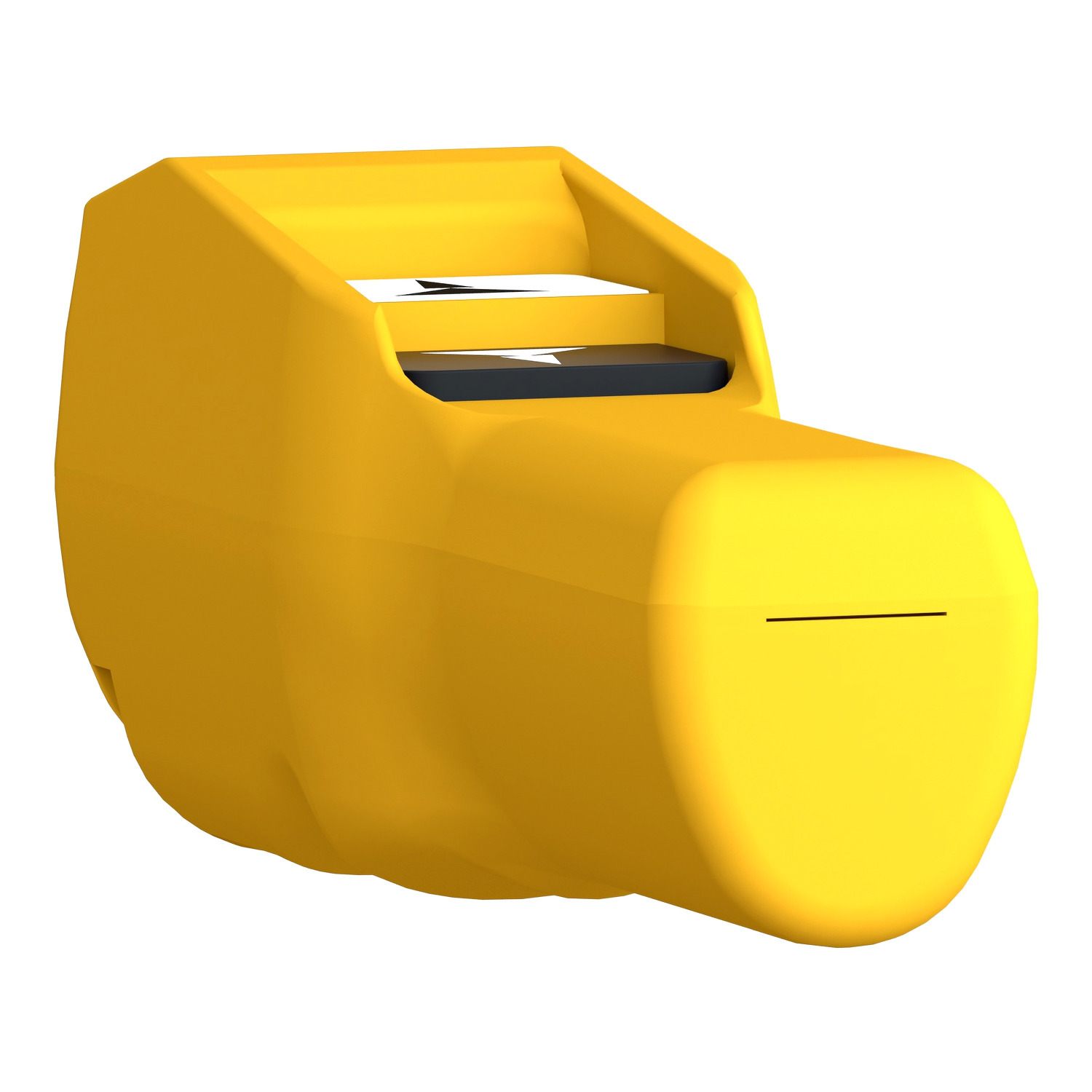

This Harmony XACA207 is a pendant station pistol grip with 2 push button for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Manuals & Documentation
| Catalog Number | XACA207 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Control of 2-speed hoist motor;ZB2BE101 + ZB2BE201 for each direction;Control circuit |
| Cable Entry | Rubber sleeve with stepped entry 7-15 mm |
| Connection | Screw clamp terminals, 1 x 2.5 mm² with or without cable end;screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Contact Rating | Staggered;slow-break |
| Enclosure | Polypropylene |
| Special Features | Complete ready for use;With mechanical interlocking |
| Standard | CSA;UL;IK08 conforming to EN 50102;EN/IEC 60204-32;CSA C22.2 No 14;UL 508;EN/IEC 60947-5-1;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=674340&lang=en-us |
| GTIN | 03389110645033 |
| Item Type | Pendant control station;Double insulated;Intuitive |
