BURNDY

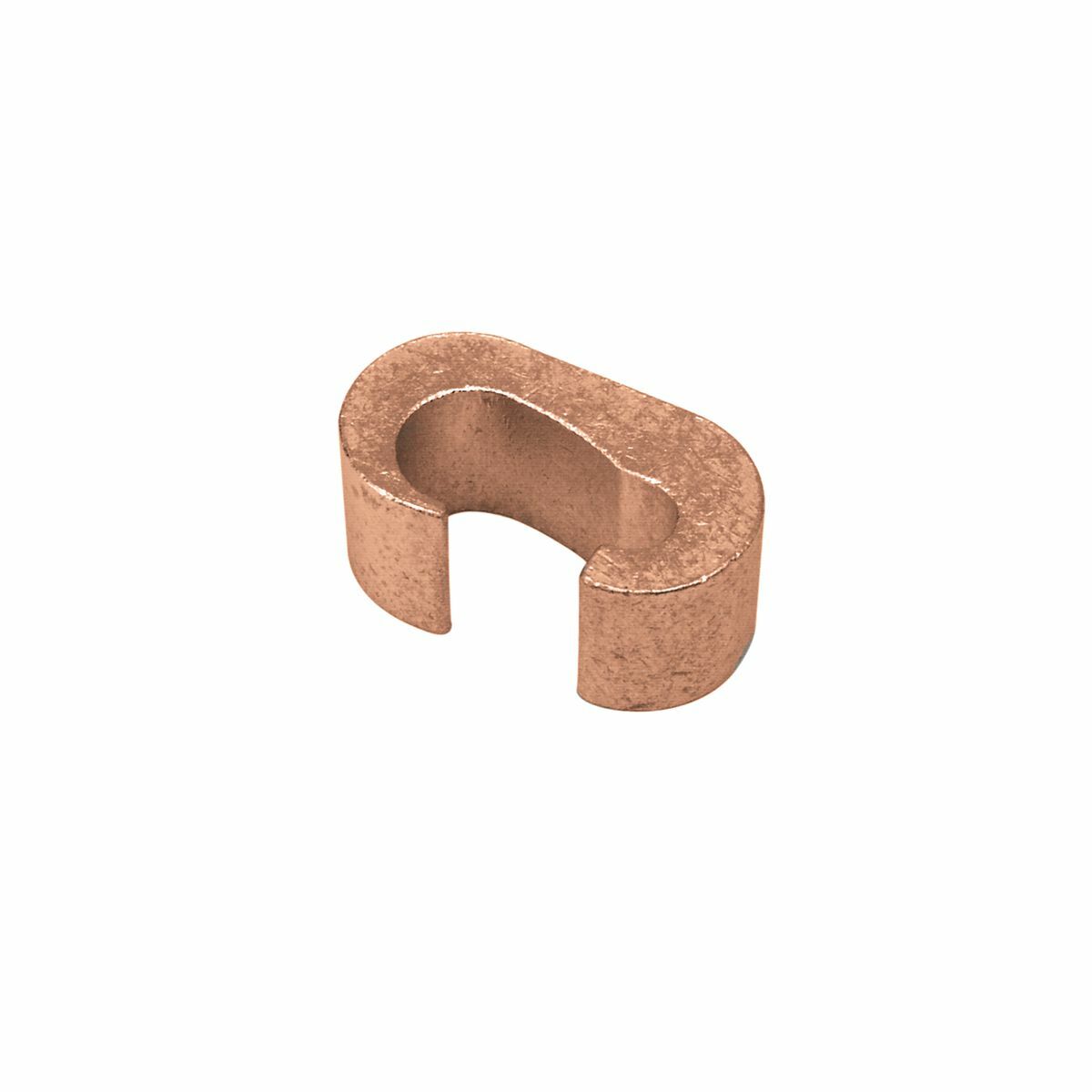

YCHC34TC34 Type YCHC Compression C-Tap, Figure C Shape, 4/0 AWG, 250 to 500 kcmil Main/Run, 4/0 AWG, 250 to 500 kcmil Tap, Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
YCHC34TC34
UPC:
781810013724
Item #:
96512
Manuals & Documentation
Catalog Number YCHC34TC34
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Tap
Finish Tin-Plated
Material COPPER
Special Features Features: Wide Range Of Run/Tap Combinations Including Class B Code I And Locomotive Flexible Conductor Combinations, All (B/B, B/I, I/I) Combinations Are Recommended: Each Connector Accommodates Many Cable Combinations, Allowing Maximum Flexibility For The Design And Installation Of A System, Color-Coded On The Connector That Matches The Die: Provides Matched System For Fast And Easy Installation, Each Connector Has A Recommended Insulating Cover Available, Flame Retardant Type CF-FR Covers Meet Oxygen Index 28 And UL94 V-O Requirements: A Complete Insulated UL Listed Installation Is Provided, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connector Is Insure Consistently Reliable And Dependable Connections, Use PUADP-1 Adaptor With U Dies In Y46, Tools, Die Set Catalog Number, And (number Of Crimps): Y750 Tool, U1104 Die, (2), Y46 Tool, P1104 Die, (1), Color Code: Brown, Die Index: 1104 Element A, Flame Retardant Cover: CFN-FR, Wire Strip Length: 1-1/4 IN, Conductor Type: Run: Commercial Stranded Copper, Flexible Copper, Tap: Commercial Stranded Copper, Flexible Copper, Conductor Size (run - Range): Commercial Copper: 4/0 AWG - 500 KCMIL, Flex Copper: 4/0 AWG - 350 KCMIL, Shape: C, Conductor Size (tap Range): Commercial Copper: 4/0 AWG - 500 KCMIL, Flex Copper: 4/0 AWG - 350 KCMIL
Standard UL 486A-486B
UPC 781810013724
GTIN 00781810013724
Item Type YCHC Series
