SQUARE D

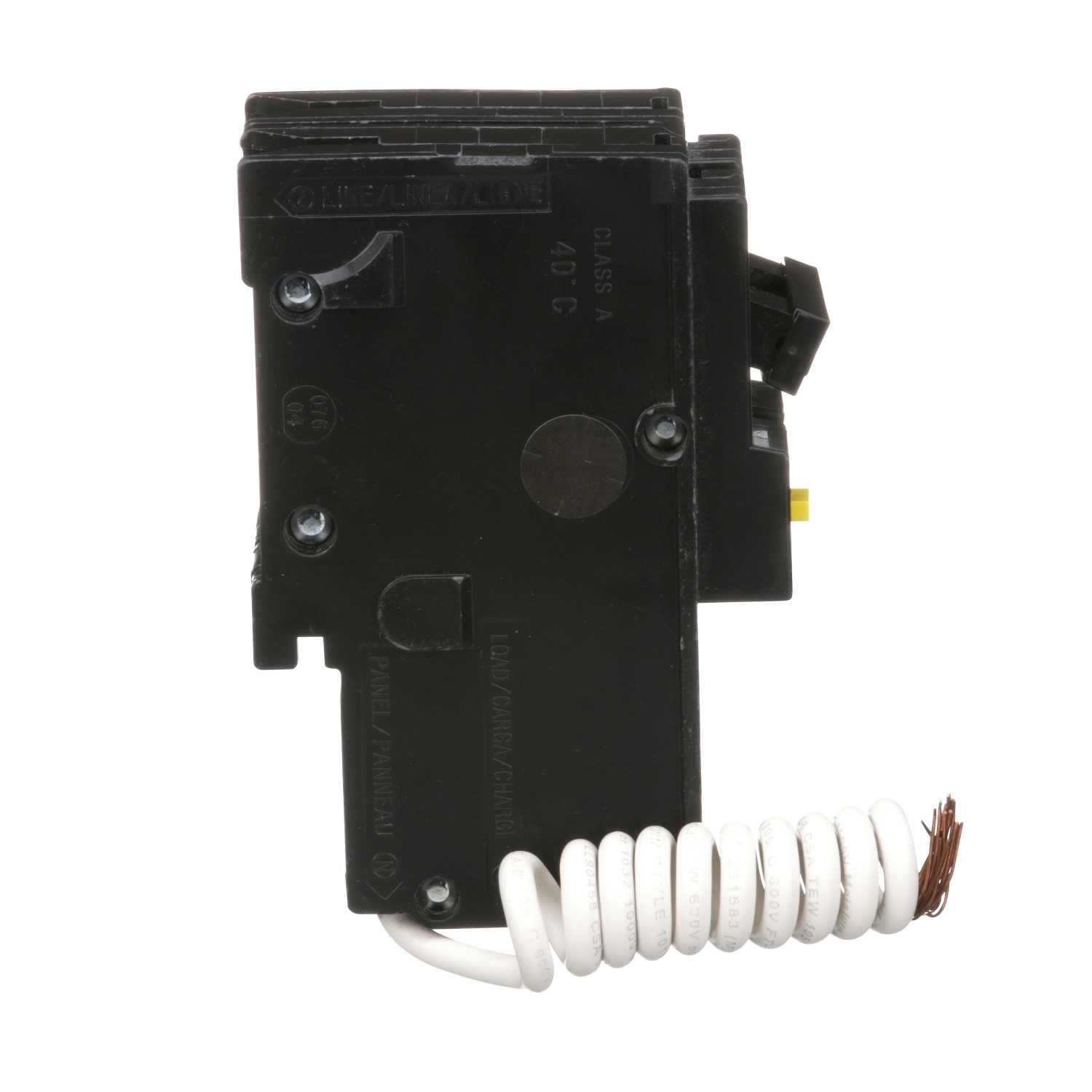

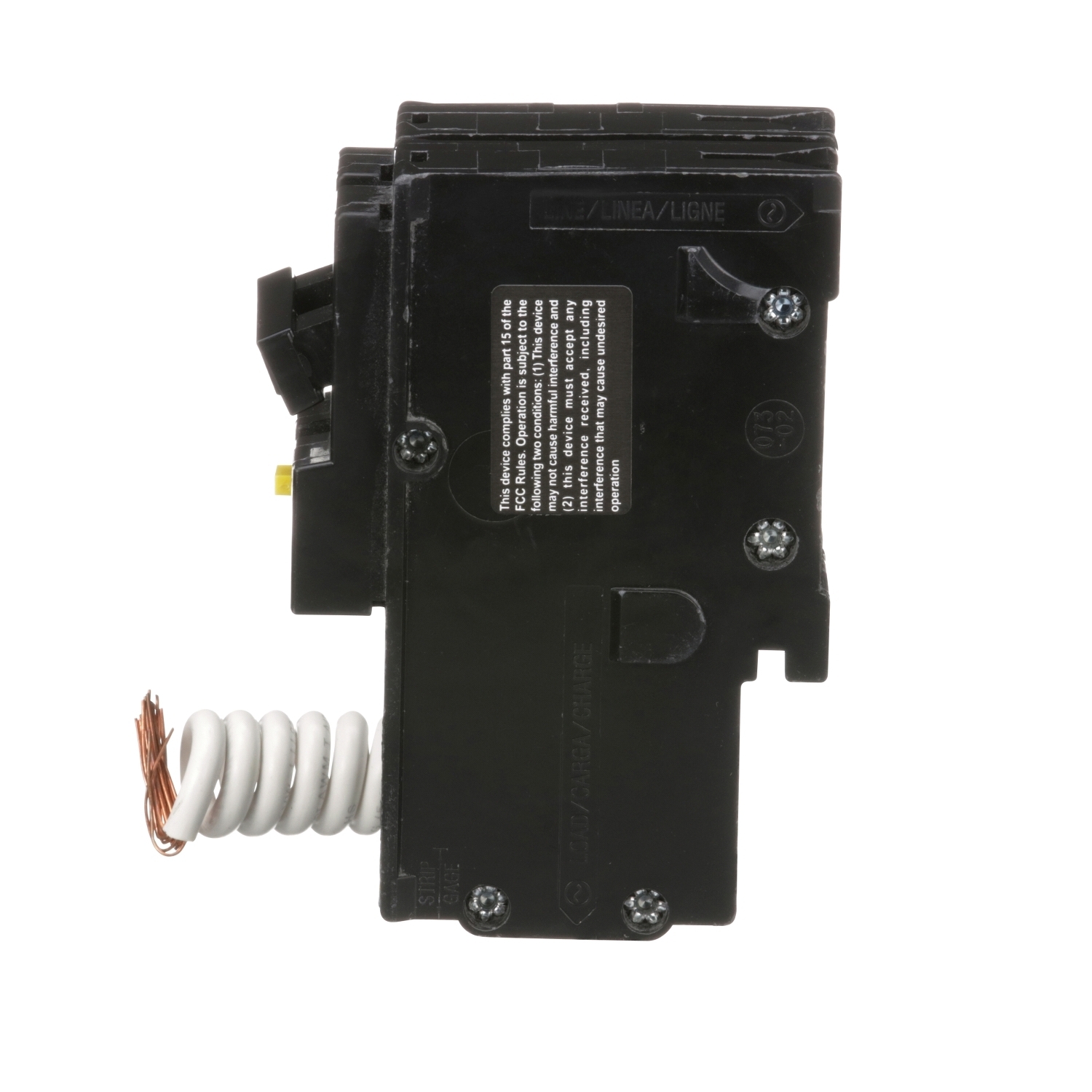

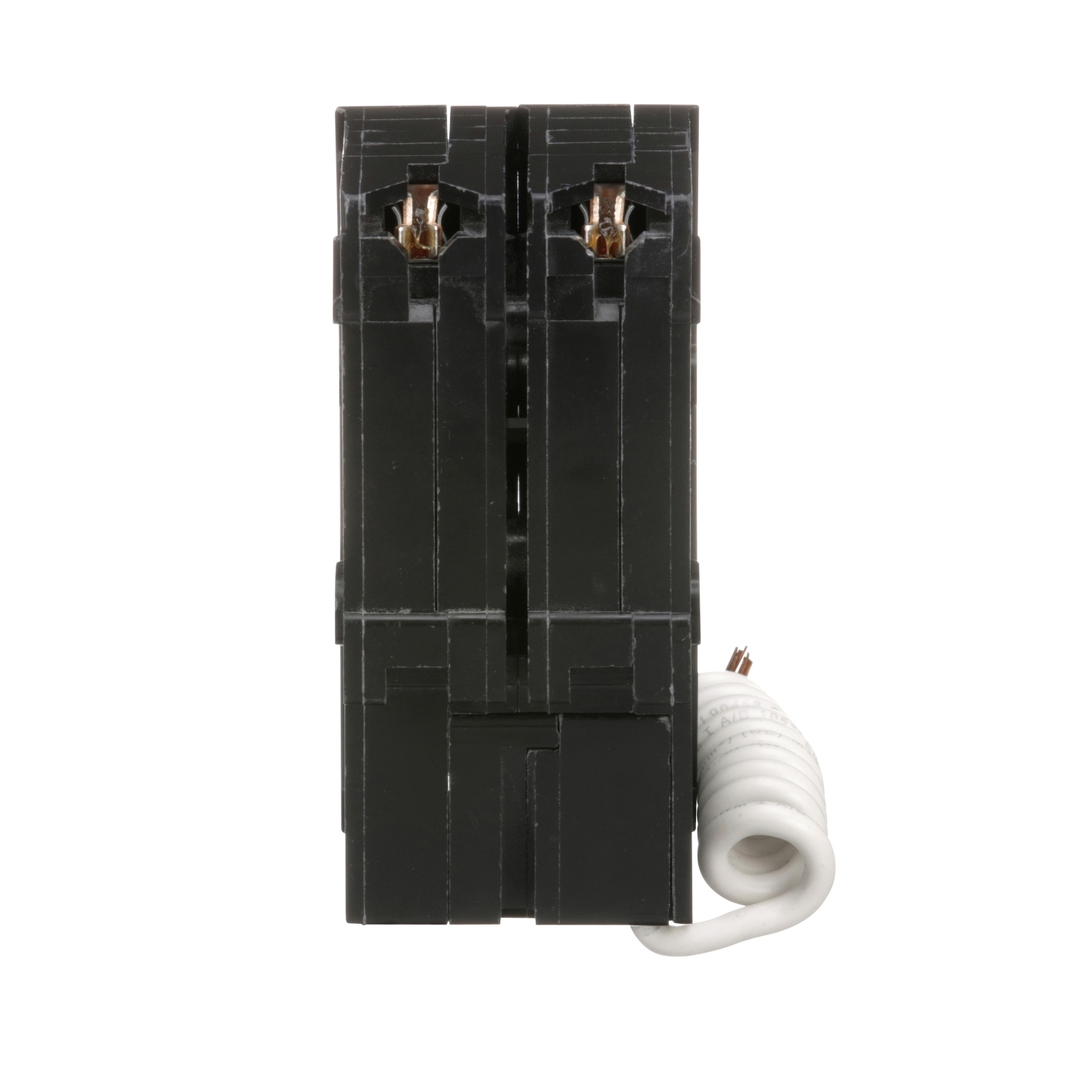

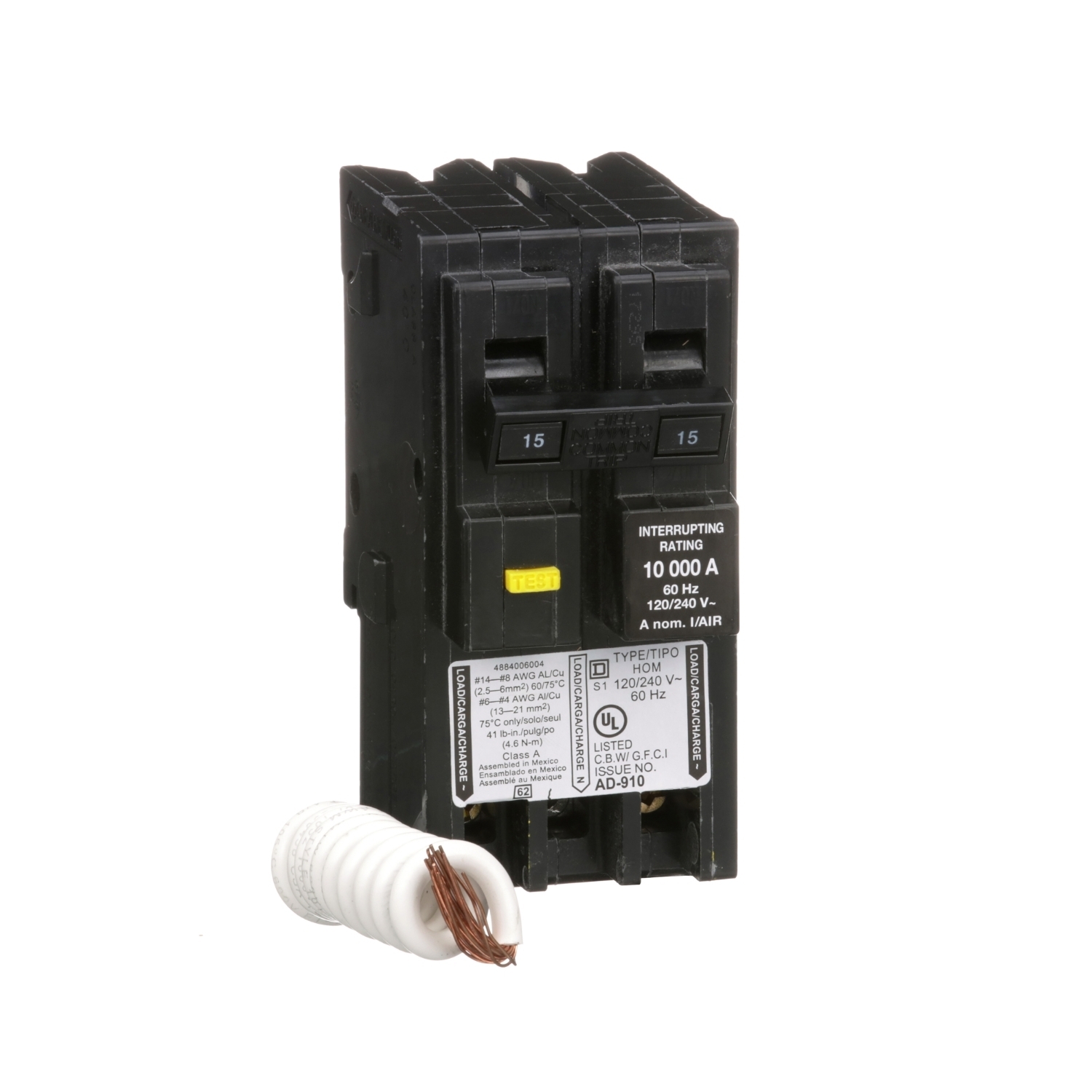

HOM215GFI Homeline Miniature Circuit Breaker, 15 Amp, 2 Pole, 120/240V

MFR:
Schneider Electric
MFR #:
HOM215GFI
UPC:
785901303190
Item #:
95871

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Manuals & Documentation
Catalog Number HOM215GFI
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:Lifetime
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398071&lang=en-us
UPC 785901303190
GTIN 00785901303190
Width 2.000000000000000
Width UOM Inch
Height 3.130000000000000
Height UOM Inch
Depth 2.98 IN
