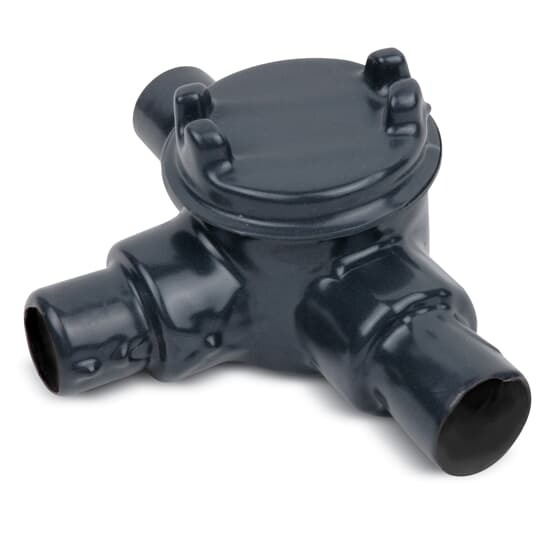

GUAT36-G Ocal Explosionproof T-Shape Conduit Outlet Box, 1 in, 3 in Cover Opening, 15.9 cu-in Capacity, PVC Coated/Zinc Plated
- MFR:
- ABB - Installation Products - Conduit
- MFR #:
- GUAT36-G
- UPC:
- 704508385965
- Item #:
- 95586
GUAT36-G Ocal Explosionproof T-Shape Conduit Outlet Box, 1 in, 3 in Cover Opening, 15.9 cu-in Capacity, PVC Coated/Zinc Plated
- MFR #:
- GUAT36-G
- UPC:
- 704508385965
- Item #:
- 95586
Manuals & Documentation
Features
- Grade 60-45-10 ductile iron bodies and cast aluminum covers
- Nominal 0.002 Inch blue urethane coating on both interior and exterior and nominal 0.040 Inch PVC coating bonded to exterior
- All hubs have a minimum of five full threads, integral bushing and pressure-sealing sleeves
- All units furnished with internal grounding screw and ship complete with aluminum cover with o-ring gasket
- Explosion-proof, dust-ignitionproof, rain-tight and suitable for use in the following environments- Class I, Division 1 & 2, Groups C & D - Class II, Division 1, Groups E, F, G - Class III, Division 1 & 2 - NEMA 3, 4, 7 CD, 9 EFG
| Catalog Number | GUAT36-G |
| Manufacturer | ABB - Installation Products - Conduit |
| Brand | Ocal |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Use in Hazardous Locations to Provide Access to Conductors for Pulling, Splicing, Maintenance and Future Changes/upgrades |
| Color | Gray |
| Cubic Capacity | 15.9 cu in |
| Knockouts | Yes |
| Material | Zinc Plated Iron Body with Aluminum Cover |
| Special Features | O-Ring Gasket Provided to Assure NEMA 4 Rating |
| UPC | 704508385965 |
| GTIN | 00704508385965 |
| Item Type | GUAT Type Hazardous Location Outlet Box, PVC Coated |
| Size | 1 Inch/27mm |
