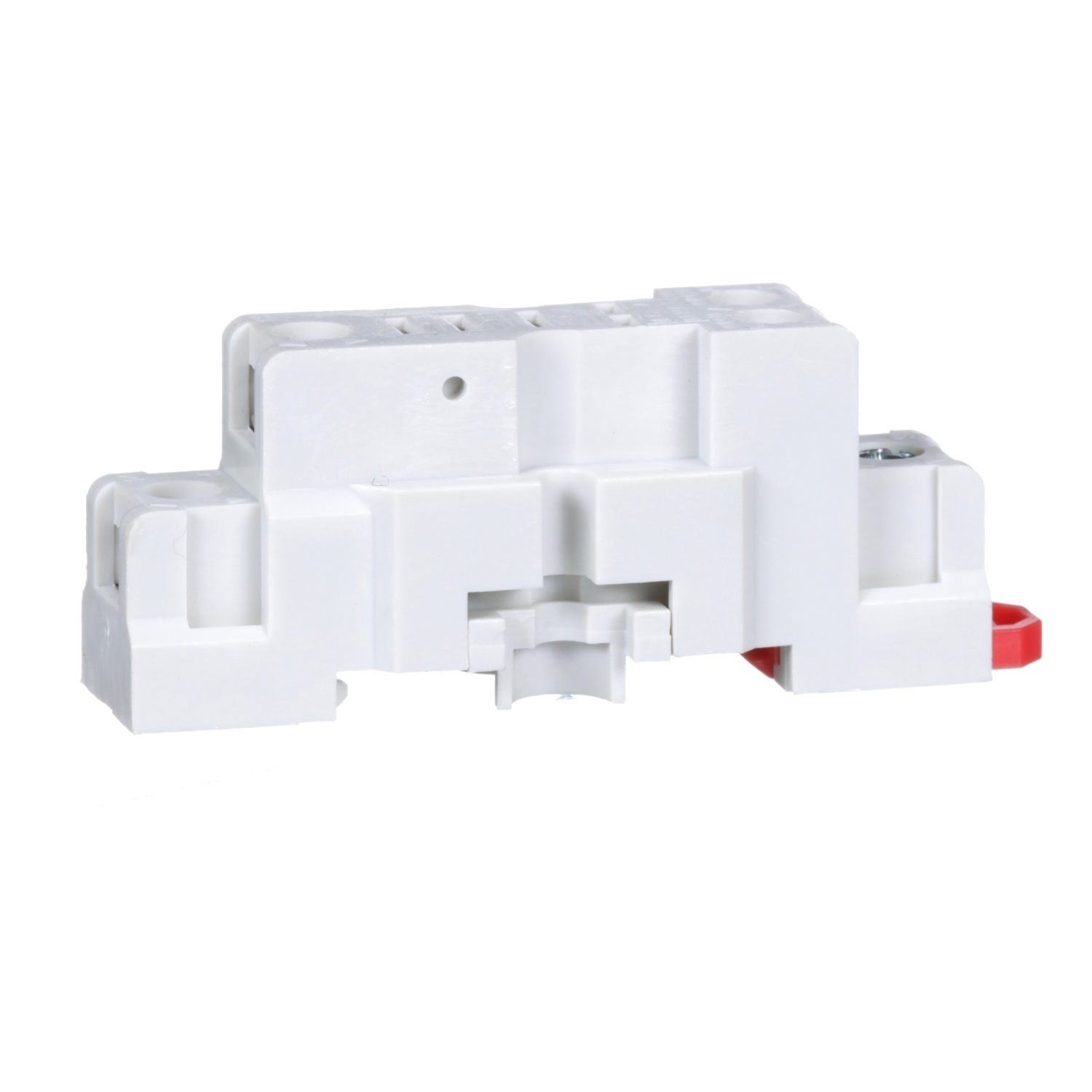

8501NR41 Type R Double Tier Relay Socket, 300 V AC, 15 A, For Use With 8501RS(D)41 Relay, 5 Pin
- MFR:
- Schneider Electric
- MFR #:
- 8501NR41
- UPC:
- 785901137276
- Item #:
- 95130
8501NR41 Type R Double Tier Relay Socket, 300 V AC, 15 A, For Use With 8501RS(D)41 Relay, 5 Pin
- MFR #:
- 8501NR41
- UPC:
- 785901137276
- Item #:
- 95130
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS41 or 8501RSD41 relay will plug into this relay socket which is designed for 5 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
| Catalog Number | 8501NR41 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Taiwan, Province Of China |
| Made in USA | No |
| Mounting | Din Rail |
| Special Features | 1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=367277&lang=en-us |
| UPC | 785901137276 |
| GTIN | 00785901137276 |
| Width | 0.78980 |
| Width UOM | Inch |
| Height | 2.87480 |
| Height UOM | Inch |
| Depth | 1.13980 IN |
