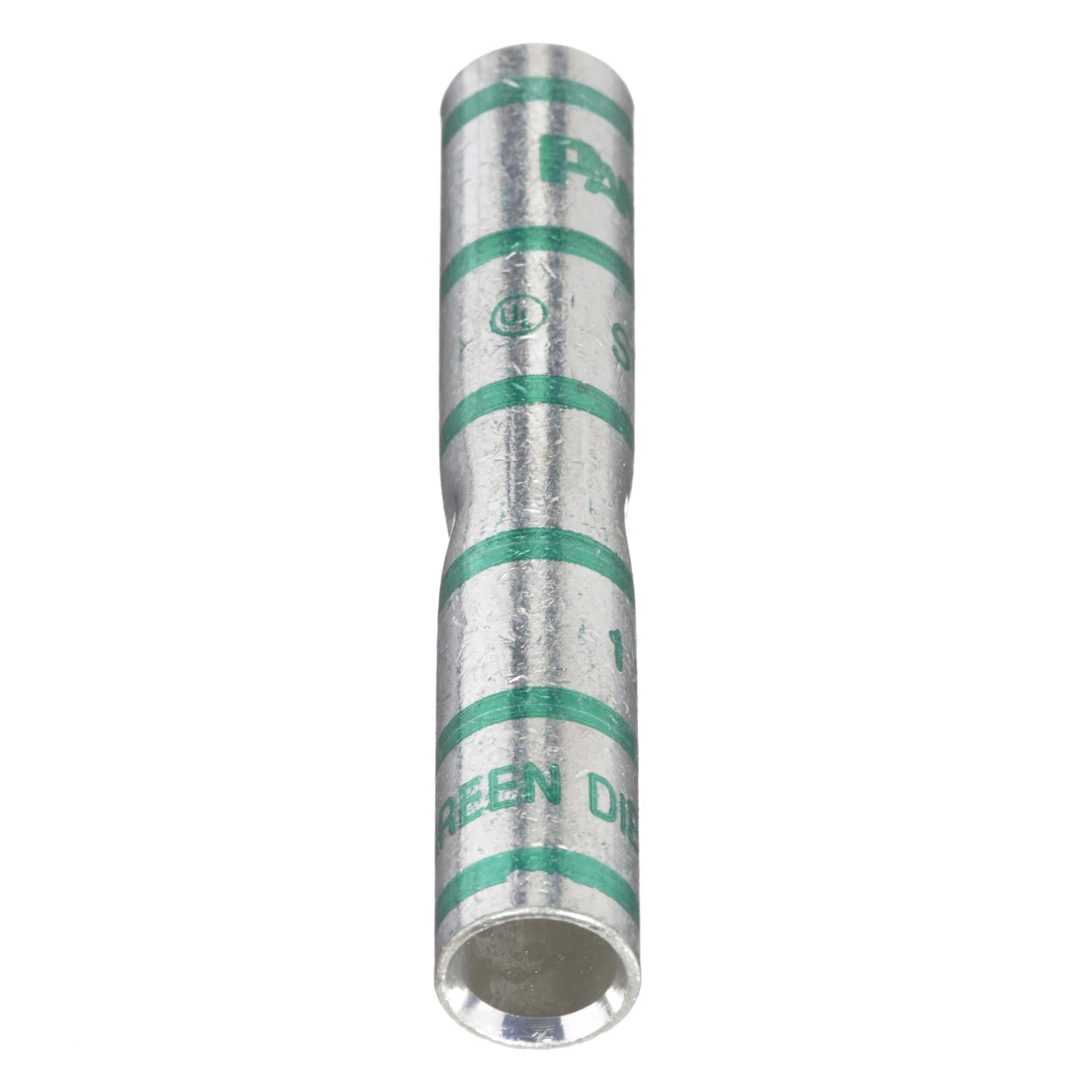

SCL1-E Pan-Lug Compression Butt Splice, 1 AWG Conductor, 2.87 in L, Beveled/Long Seamless/Standard Barrel, Copper, Green
- MFR:
- Panduit
- MFR #:
- SCL1-E
- UPC:
- 074983904464
- Item #:
- 95018
SCL1-E Pan-Lug Compression Butt Splice, 1 AWG Conductor, 2.87 in L, Beveled/Long Seamless/Standard Barrel, Copper, Green
- MFR #:
- SCL1-E
- UPC:
- 074983904464
- Item #:
- 95018
Panduit® Pan-Term® splices are designed and manufactured for fast assembly and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Manuals & Documentation
Features
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Internal solid center prevents over-insertion of conductor
- Tin-plated to inhibit corrosion
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- Premium pull out strength
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Internal solid center prevents over-insertion of conductor
- Tin-plated to inhibit corrosion
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies
| Manufacturer Part Number | SCL1-E |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983904464 |
| EAN | 0074983904464 |
| Country Of Origin | MX |
| Color | Green |
| Conductor Size | 1 AWG |
| Conductor Type | Stranded Copper |
| Finish | Tin Plated |
| Length | 2.87 in |
| Material | Copper |
| Series | SCL |
| Specifications | 1-3/8 in L Wire Strip |
| Temperature Rating | 90 deg C |
| Voltage Rating | 35 kV |
| Alternative Part Number | 7502136 | 8758848 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA Certified | NEBS Level 3 | RoHS Compliant | UL Listed | CSA Certified File No. LR31212 | UL 587H | UL Listed File No. E52164 |
| Application | For wide wire range taking capability when crimped with Panduit® Uni-Die™ dieless crimping tools |
| Barrel Size | 0.36 in ID x 0.47 in OD |
| Barrel Type | Beveled/Long Seamless/Standard |
