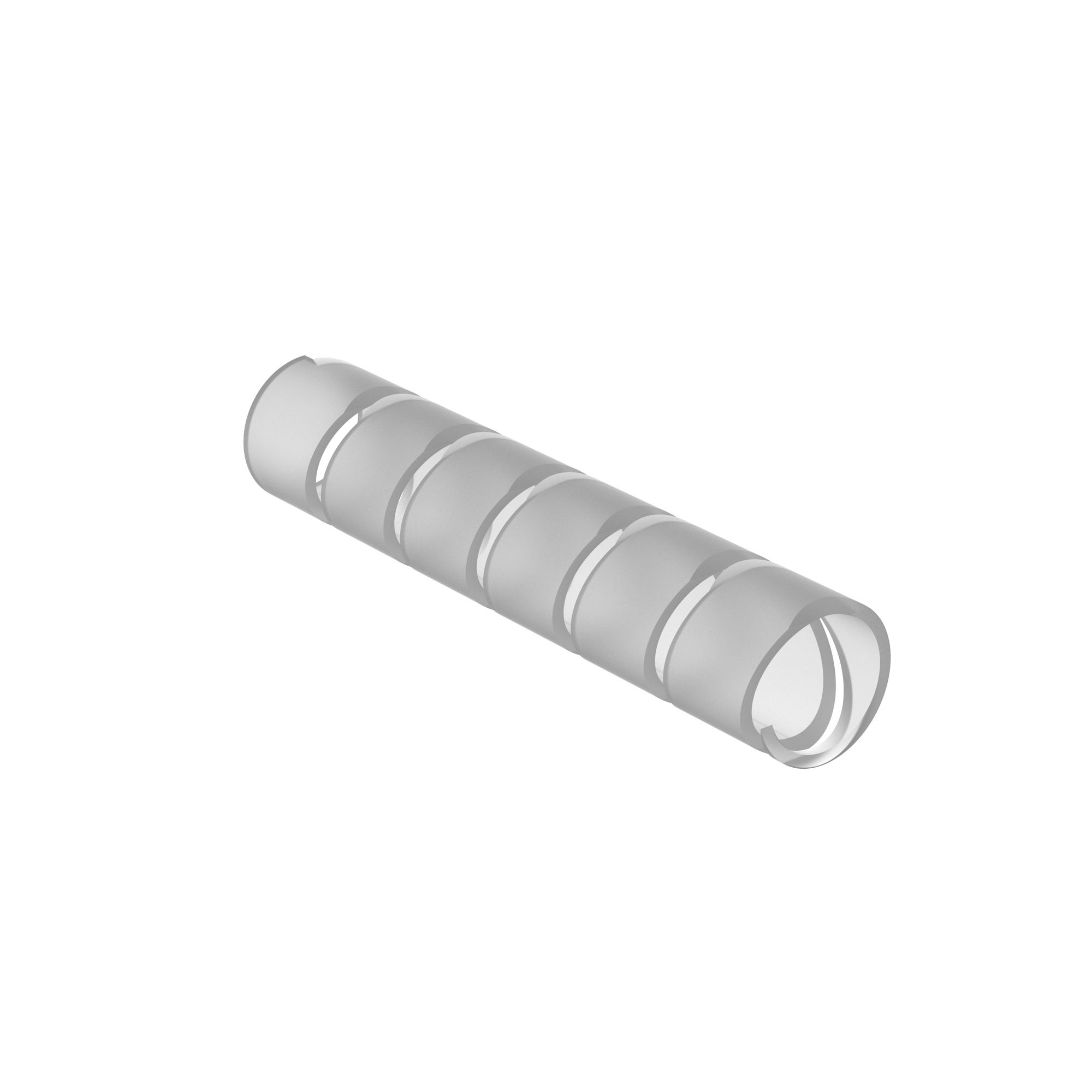

The T75F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122F (50C). 0.75 (19.1 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.625 to 5 (15.9 mm to 127.0 mm). Color Natural.
Manuals & Documentation
| Catalog Number | T75F-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color | Natural |
| Material | Polyethylene |
| Maximum Bundle Diameter | 5 IN |
| Standard | UL Recognized - E141152; UL94HB |
| UPC | 074983706198 |
| GTIN | 00074983706198 |
| Item Type | Spiral Wrap |
| Length | 100 |
| Minimum Bundle Diameter | 0.625 IN |
| Outside Diameter | 0.75 |
| Temperature Rating | 122 °F |
| Wall Thickness | 0.06 IN |
