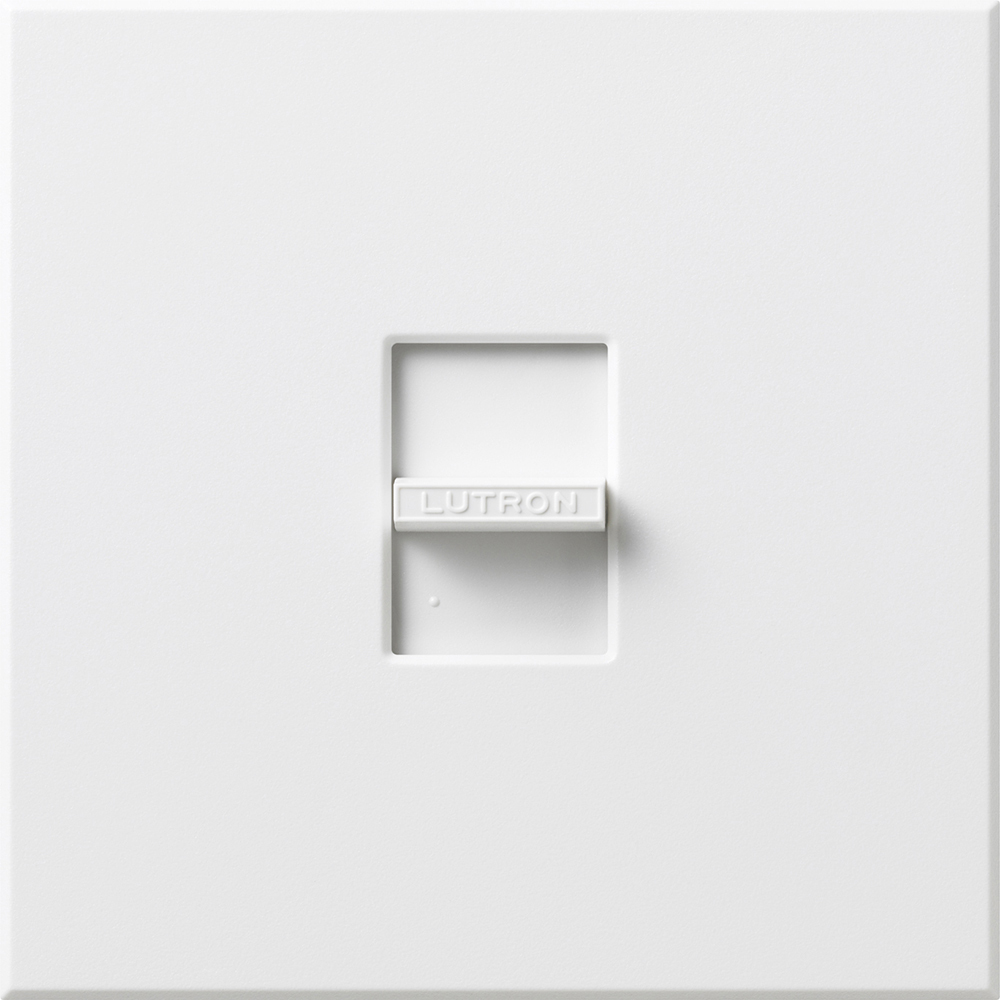

NF-10-277-WH Nova 3-Wire Dimmer Switch for Ballasts and LED Drivers with Wall Plate, 8 Amp, 1 Pole, 277V, Large Control, White
- MFR:
- Lutron Electronics
- MFR #:
- NF-10-277-WH
- UPC:
- 027557359153
- Item #:
- 94856
NF-10-277-WH Nova 3-Wire Dimmer Switch for Ballasts and LED Drivers with Wall Plate, 8 Amp, 1 Pole, 277V, Large Control, White
- MFR #:
- NF-10-277-WH
- UPC:
- 027557359153
- Item #:
- 94856
Manuals & Documentation
| Catalog Number | NF-10-277-WH |
| Manufacturer | Lutron Electronics |
| Brand | Lutron |
| Actuator | Slide |
| Amperage Rating | 8 |
| Application | Lighting Control |
| Color | White |
| Connection | Wire Leads |
| Enclosure | Plastic |
| Frequency Rating | 60 HZ |
| Insulation | Plastic |
| Material | Plastic/Metal |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Controls 8 A LED driver/3-wire fluorescent ballast loads. Higher capacity dimmer, requires large heat sink behind wallplate. Slide up to brighten, down to dim. Measures 4.56 in x 4.56 in. Requires large wallplate. Fits in 1-gang electrical backbox. |
| Standard | UL, CSA, NOM, ANSI/IEEE Std. C62.41-1980 |
| UPC | 027557359153 |
| GTIN | 00027557359153 |
| Item Type | Slide-to-off dimmer, single-pole |
| Size | 4.56 x 4.56 |
| Operating Temperature | 32 to 104 F |
| Voltage Rating | 277 |
| Wattage | 2216 W |
