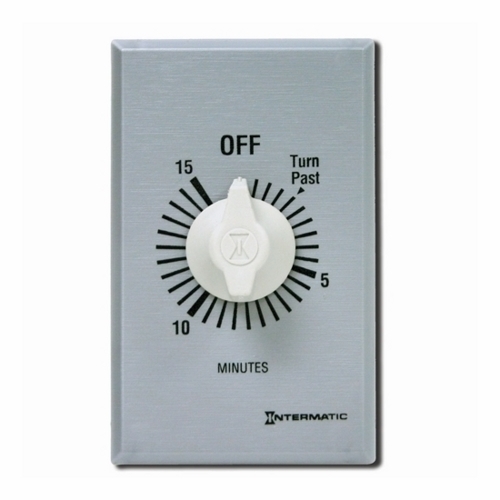

FF415M FF Series Auto Off Commercial Mechanical Spring Wound Timer, 15 min Setting, 125/257 V AC, 1 hp, 2 hp, 2NO 2 Form A DPST Contact, 2 Poles
- MFR:
- Intermatic
- MFR #:
- FF415M
- UPC:
- 078275184343
- Item #:
- 94850
FF415M FF Series Auto Off Commercial Mechanical Spring Wound Timer, 15 min Setting, 125/257 V AC, 1 hp, 2 hp, 2NO 2 Form A DPST Contact, 2 Poles
- MFR #:
- FF415M
- UPC:
- 078275184343
- Item #:
- 94850
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Manuals & Documentation
| Catalog Number | FF415M |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Tunisia |
| Made in USA | No |
| Action | 1 x DPST |
| Amperage Rating | 15 |
| Application | Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR |
| Connection | Teeter Type |
| Contact Configuration | 2 NO |
| Contact Rating | 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive) |
| Mounting | Wall |
| Number of Poles | 2 |
| Special Features | Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Rugged Time Dial Plate Easily withstands the Abuse Encountered in Commercial Environments, Commercial "Brushed Metal" (Plastic Construction) look meets NEC Requirements, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compatible, Provide Direct Replacement of a Standard Wall Switch in a Single Gang 2-1/2 IN Deep Junction Boxes, Spiral Time Scale to Provide Easy Selection of the Time Setting, Standard Industry Accepted Molded Plate and Knob, Secure Teeter-Type Terminal, 1 Year Warranty |
| Standard | cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC |
| UPC | 078275184343 |
| GTIN | 00078275184343 |
| Item Type | Commercial Spring Wound Auto-Off |
| Size | 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM |
| Timing Range | 15 MIN |
| Voltage Rating | 125 - 277 |
