Appleton

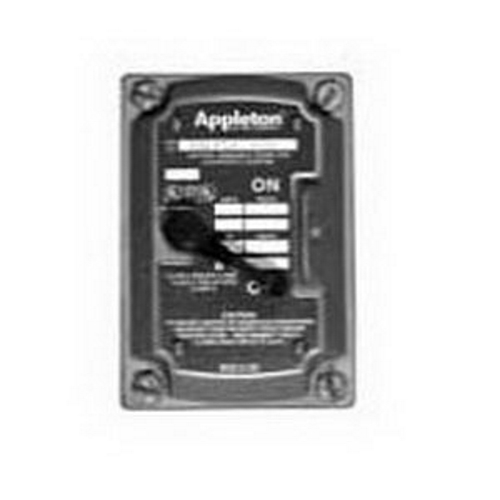

EDSF21Q Contender 1-Gang Sealed Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 3/7CD/9EFG NEMA Rating

MFR:
Appleton Electric
MFR #:
EDSF21Q
UPC:
781381709569
Item #:
94747

Contender Front Operated Switch Assembly, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Material: Malleable Iron, Standard: UL 894, 1203, UL File Number E10523, E81751, Class I, Division 1, Groups C, D, Class

Manuals & Documentation
Catalog Number EDSF21Q
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For Tumbler Switches
Special Features Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Choice of front-operating or side rocker arm handle each may be locked in ON or OFF position; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Enclosures furnished with internal ground screw; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; With sealing cover; 1 HP at 120 VAC and 2 HP at 240 VAC; For use in classified areas where ignitable vapors, gases or highly combustible dusts are present
Standard UL 894, 1203, UL File Number E10523, E81751; Class I, Division 1, Groups C, D; Class I, Division 2, Group B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
UPC 781381709569
GTIN 00781381709569
Item Type Front Operated Switch Assembly
Voltage Rating 120 - 277
