Broan-NuTone

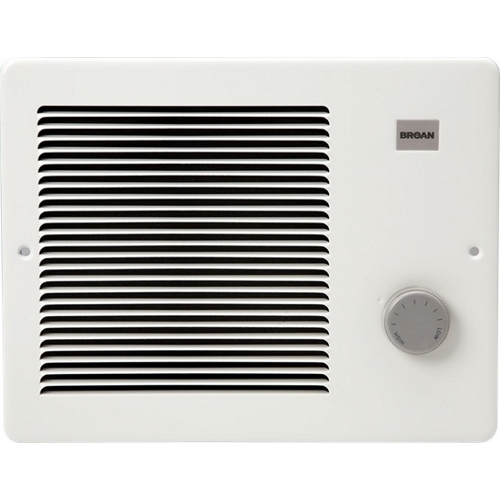

Wall Heater, White, 1000/2000W 240VAC, 750W/1500W 208 VAC.

MFR:
Broan-NuTone
MFR #:
178
UPC:
026715004485
Item #:
93894
Manuals & Documentation
Catalog Number 178
Manufacturer Broan-NuTone
Brand Broan-NuTone
Country of Origin United States
Made in USA Yes
Application For Bathrooms Or Other Areas Where You Want Added Warmth On Demand
Mounting Surface
Special Features Features: Factory Wired For 2000 W At 204 VAC Easily Converts To 1000 W At 240 VAC Or 750/1500 W At 208 VAC; Clean, White Enamel Finish; Heavy 20-Gauge Steel Louvered To Direct Air Downward For Even Room Heating; Front-Mounted, Built-In Adjustable Thermostat Automatically Maintains Desired Temperature And Features A Color-Coordinated Knob; 100 PCT Efficient Heating Element Alloy Heating Element Provides Comfortable Heat In Seconds; Complete Assembly Removes From Housing For Easy Cleaning; Permanently Lubricated Motor; Zig-Zag Element Configuration Insulated With Mica; Manual-Reset Thermal Overload Protection; Grille - Designer-Styled, One-Piece Construction With Rounded Corners; Housing - 24-Gauge Steel Finished With Black Expoxy Paint; Removable Wiring Cover - Connect Wiring Away From Tight Corners; Mounts Directly To Wall Studs; Can Be Recess Or Surface-Mounted; Includes Housing Mask - To Prevent Construction Damage To Roughed-In Heater; Heater Assembly - Nickel-Chrome Resistance Alloy Heating Element; Snap-Action, Bi-Metallic Thermostat; High-Efficiency Blower Wheel; Finish: Black Expoxy Paint Housing, White, Baked Enamel Grille; Amperage Rating: 8.3/4.1, 7.2/3.6 AMP; Packaging: Single; Btu/hr: 6827/3413, 5120/2560 BTU/HR; Grille Material: 20-Gauge Steel
Standard UL
UPC 026715004485
GTIN 00026715004485
Item Type Heater
Dimensions Housing: 10-1/4 IN Length X 3-3/4 IN Width X 7-3/4 IN Height, Grille: 12 IN Length X 1/2 IN Width X 9-1/4 IN Height
Length 1.25
Length UOM Inch
Width 0.91666
Width UOM Inch
Height 0.50833
Height UOM Inch
Weight 7.4
Weight UOM Pounds
Voltage Rating 208/240
Wattage 2000 WTT At 204 VAC, 1000 WTT At 240 VAC, 1500/750 WTT At 208 VAC
