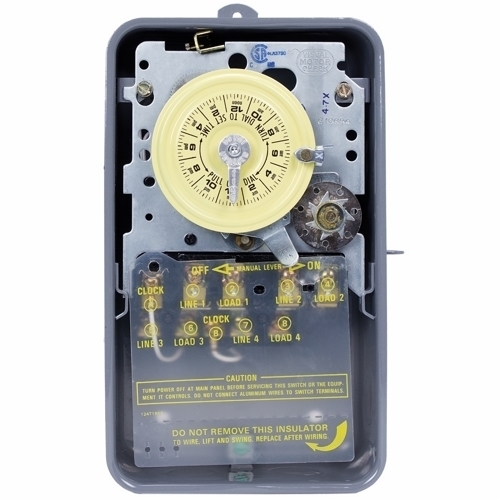

T1475BR T1400 Mechanical Timer Switch, 24 hr Setting, 480 V AC, 5 hp, 4NO 4 Form A 4PST Contact, 4 Poles
- MFR:
- Intermatic
- MFR #:
- T1475BR
- UPC:
- 078275179097
- Item #:
- 9331
T1475BR T1400 Mechanical Timer Switch, 24 hr Setting, 480 V AC, 5 hp, 4NO 4 Form A 4PST Contact, 4 Poles
- MFR #:
- T1475BR
- UPC:
- 078275179097
- Item #:
- 9331
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
Manuals & Documentation
| Catalog Number | T1475BR |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | 4PST |
| Application | Commercial, Industrial, Residential, Outdoor, HVACR |
| Contact Configuration | 4 NO |
| Contact Rating | 40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120/240/277 VAC (Tungsten, Inductive) |
| Enclosure | NEMA 3R Steel |
| Mounting | Wall |
| Number of Poles | 4 |
| Special Features | Features: Up to 10 ON/OFF operations each day, Minimum ON/OFF times of one hour, Manual override, One ON and one OFF tripper and three day-skipper screws, 1 Year Warranty |
| Standard | cCSAus Certified, HVACR |
| UPC | 078275179097 |
| GTIN | 00078275179097 |
| Item Type | Mechanical |
| Operating Temperature | -40 to +130 DEG F, -40 to +54 DEG C |
| Timing Range | 24 HR |
| Voltage Rating | 480 |
| Wattage | 3 W |
