SQUARE D

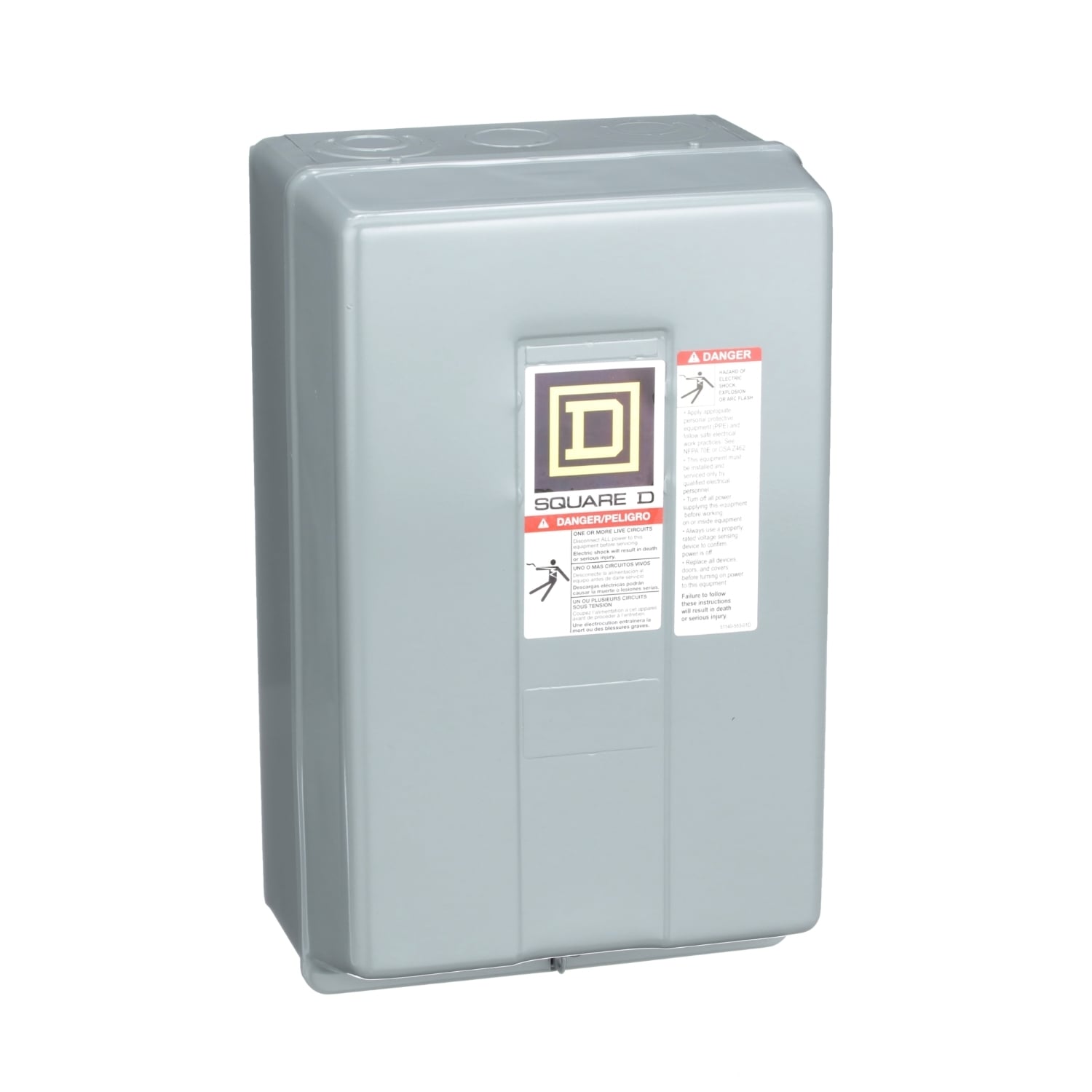

8903LXG80V04 Mechanically Held Type LX Lighting Contactor, 277 V AC at 60 Hz V Coil, 8NO Contact, 8 Poles

MFR:
Schneider Electric
MFR #:
8903LXG80V04
UPC:
785901057413
Item #:
93159

Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 8 pole device has 8 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 440/480 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type L lighting contactors. 8903L lighting contactors are UL Listed and CSA Certified.

Manuals & Documentation
Catalog Number 8903LXG80V04
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=551837&lang=en-us
UPC 785901057413
GTIN 00785901057413
