SQUARE D

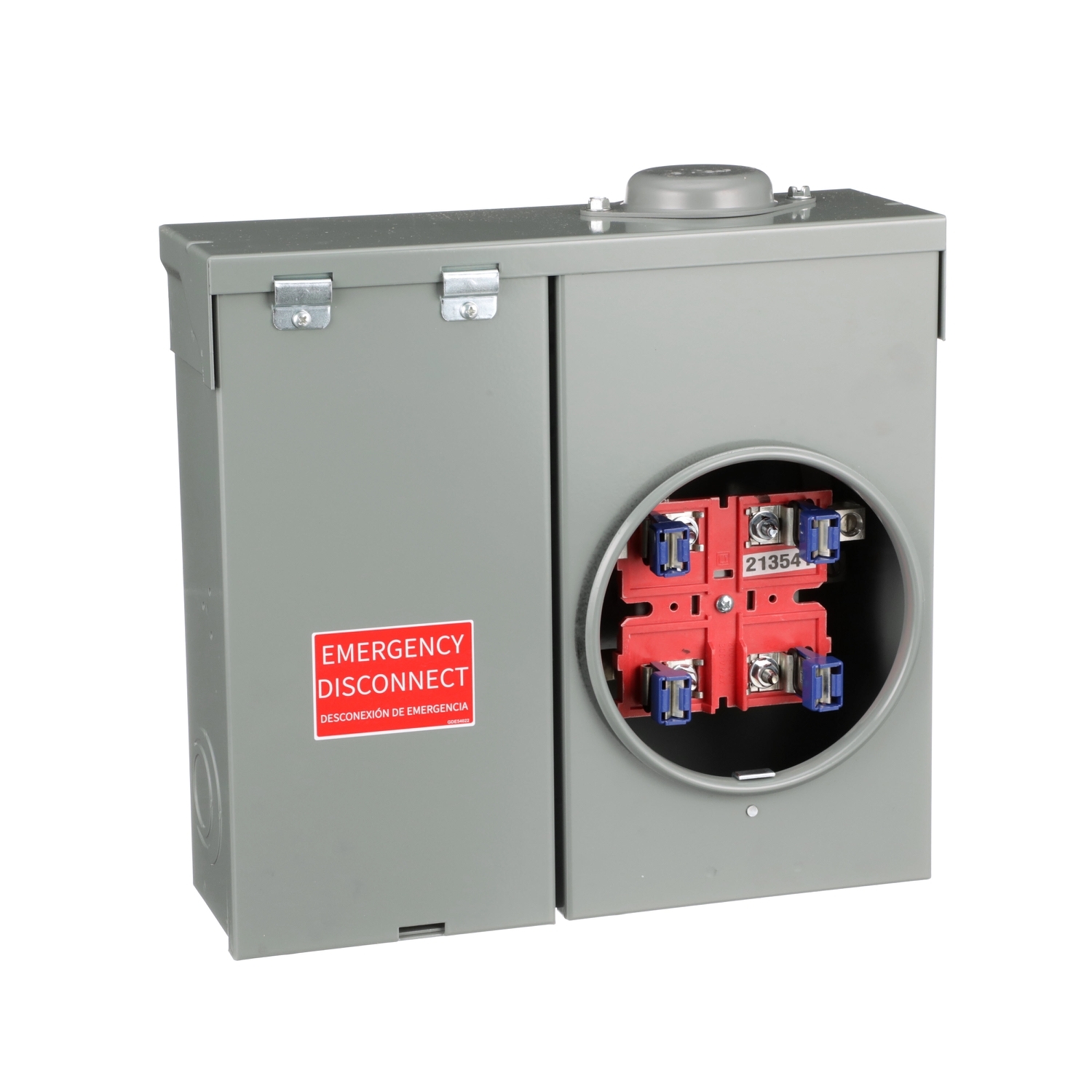

C125RB QO Meter Main, CSED, 125 Amp, 1 Phase, Ringed, No Bypass, 4 Jaw, OH, UG, Surface

MFR:
Schneider Electric
MFR #:
C125RB
UPC:
785901030058
Item #:
92951

Square D Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are reverse mount only with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ring type, class 320 socket with test block bypass, and underground feed. With a current rating of 125A, this product has a short circuit current rating of 10kA. This unit is supplied with a factory installed QOM1-VH main breaker. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.

Manuals & Documentation
Catalog Number C125RB
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Bypass Type No Bypass
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357185&lang=en-us
UPC 785901030058
GTIN 00785901030058
Width 13.82
Width UOM Inch
Height 12.8
Height UOM Inch
Depth 4.39 IN
