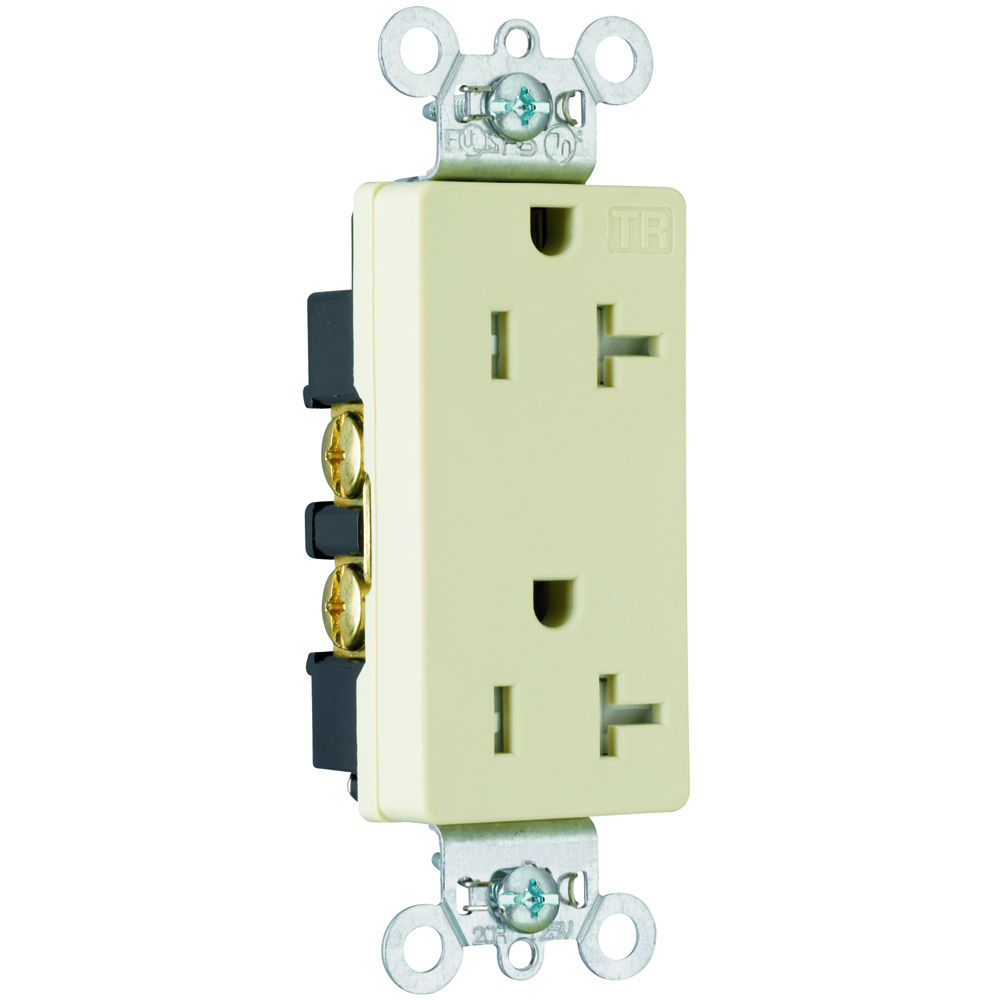

Tamper-Resistant Heavy-Duty Decorator Spec Grade Receptacles, Back and Side Wire, 20A, 125V

Catalog Number TR26362I
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Warranty Description 1-Year Limited Warranty
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Commercial
Color Ivory
Connection Back and side wire
Material Nylon
Mounting Wall
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. One-piece, brass, triple-wipe power contacts for lasting retention. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest. Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. One-piece plated steel mounting strap with integral ground for superior long-term performance.
Standard UL498, cUL CSA
UPC 785007277333
GTIN 00785007277333
Item Type Tamper-Resistant Spec Grade Decorator Receptacle, Heavy-Duty
Size 1.322 L x .833 W x 3.813 H
Environmental Conditions Flammability: UL94 V2
Temperature Rating -40° - 60° C
Voltage Rating 125
Wire Size 14 - 10 AWG
Cross Reference Products Bryant DRS20ITR|EatonWD TR6352V
