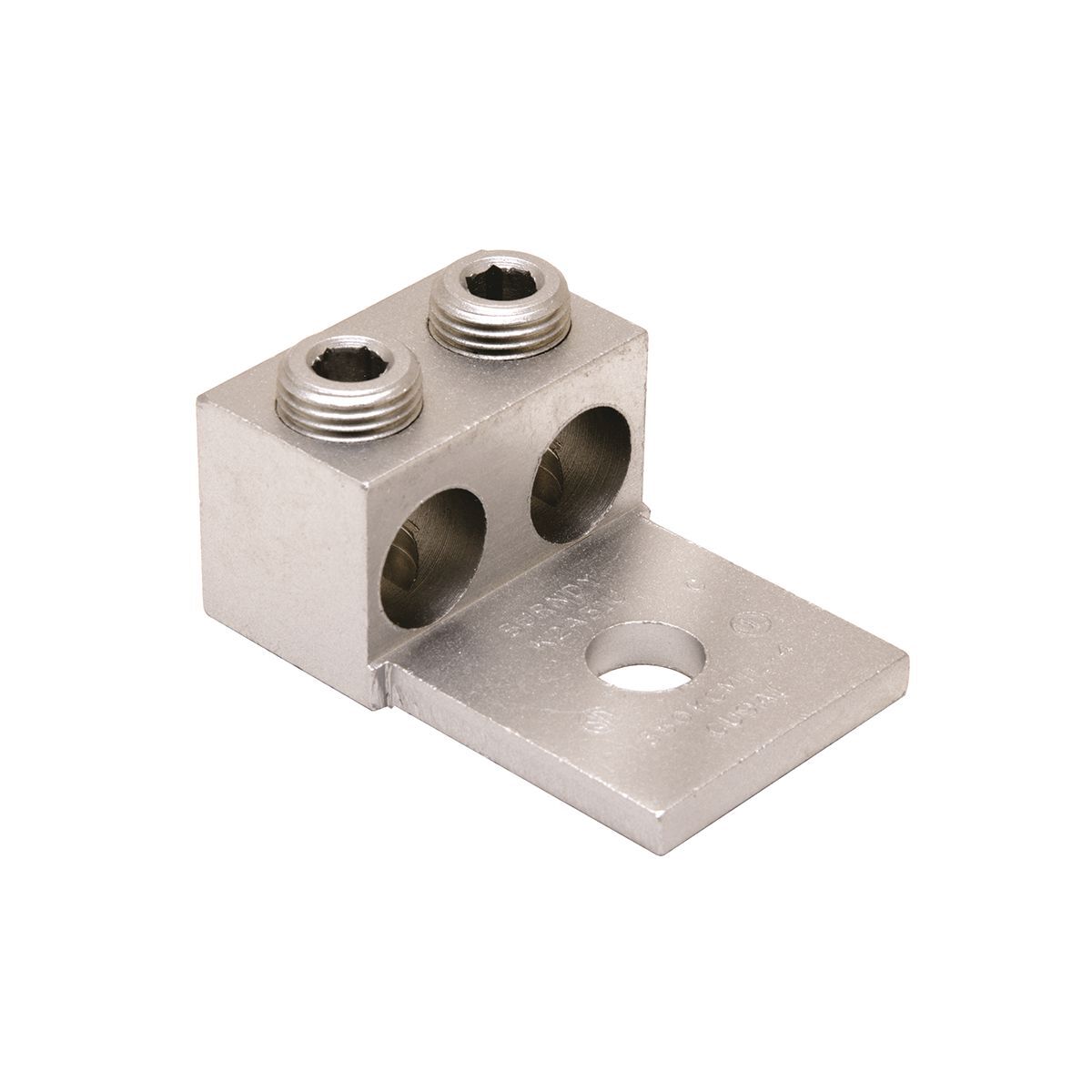

K2A29U K2A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 AWG to 250 kcmil Aluminum/Stranded Copper Conductor, 3/8 in Stud, 1 Bolt Hole, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- K2A29U
- UPC:
- 781810600108
- Item #:
- 92008
K2A29U K2A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 AWG to 250 kcmil Aluminum/Stranded Copper Conductor, 3/8 in Stud, 1 Bolt Hole, Aluminum
- MFR #:
- K2A29U
- UPC:
- 781810600108
- Item #:
- 92008
Manuals & Documentation
| Catalog Number | K2A29U |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Aluminum And Copper Conductors |
| Material | Aluminum |
| Number of Conductors | 2 |
| Special Features | Features: These Dual-Rated Two-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Number Of Screws: 1, Dimension T: 0.25 IN, Stud/bolt Hole Size: 3/8 IN, Dimension D: 1.5 IN, Dimension N: 0.5 IN, Set Screw Type: Allen Key, Installation Torque: 275 IN-LB, Width: 1.66 IN, Length: 2.56 IN, Height: 1.2 IN |
| Standard | UL 486A-486B |
| UPC | 781810600108 |
| GTIN | 00781810600108 |
| Item Type | Bolted Lugs & Terminals |
| Temperature Rating | 194 |
| Cross Reference Products | 2-250T |
