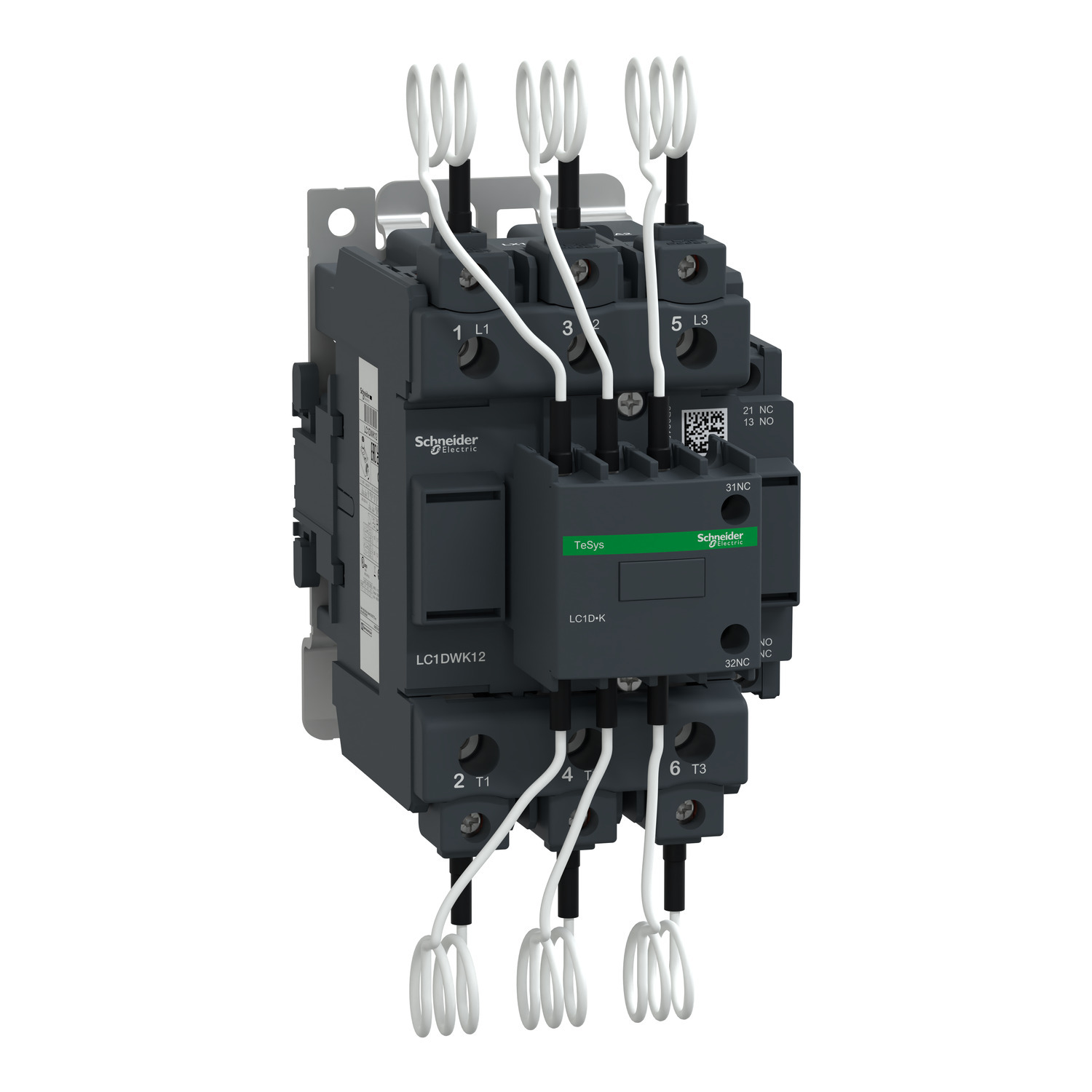

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). It provides a 120V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831.

Manuals & Documentation
Catalog Number LC1DWK12G7
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Power factor correction
Coil Voltage 120 V AC 50/60 Hz
Standard IECEE CB Scheme;UL;CSA;UKCA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55935525&lang=en-us
GTIN 03389110487732
Item Type Capacitor duty contactor;LC1DWK
