Ideal

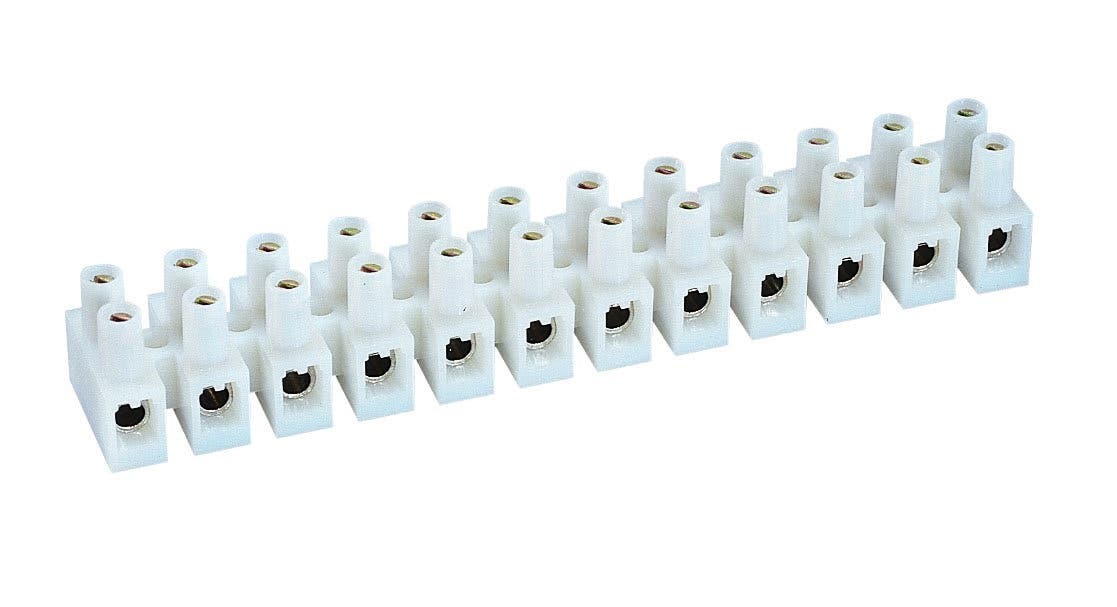

IDEAL, Barrier Strip, Wire Size: 22-10 AWG, Amperage Rating: 35 AMP, Voltage Rating: 300,600 V, Material: Plastic Housing, Number Of Circuits: 12, Torque Rating: 7 IN-LB, Rated Temperature: 105 DEG C, Overall Height: 0.472 IN, Model: PA12DS, Electrical Ratings: 35A/300V UL/CUL

MFR:
Ideal Industries
MFR #:
89-612
UPC:
783250896127
Item #:
91436

IDEAL Barrier Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life.

Manuals & Documentation
Catalog Number 89-612
Manufacturer Ideal Industries
Brand Ideal
Country of Origin Taiwan, Province Of China
Made in USA No
Amperage Rating 35
Material Plastic Housing
Special Features Features: UL Recognized And CUL Rated For 35A, 600V; Recessed Screws And Tubular Contacts; Connect Stripped Un-Terminated Solid Or Stranded Wire; Modular 12 Circuits Can Be Cut Into Smaller Sections; Plastic Housing Is UL Flame Rated To 94V-2; Rated Temperature To 105 Degrees C; Torque Rating Of 7.0 In-Lbs; Recessed Screws And Tubular Contacts Provide Added Safety And Help Prevent Short Circuits; Tubular Contacts Connect Stripped, Un-Terminated Solid Or Stranded Wire Directly To Each Contact Integrated Wire Protectors Prevent Twisting And Breakage Of Stranded Wire During Connection; Modular 12-Circuit Design Can Be Cut Into Smaller Sections,Or Stacked End-To-End Rugged Nylon Construction, UL 94V2; Operating Temperature Rated To 105 Degrees C (221 Degrees F) Recessed Screws And Tubular Contacts Provide Added Safety And Help Prevent Short Circuits Tubular Contacts Connect Stripped, Un-Terminated Solid Or Stranded Wire Directly To Each Contact Integrated Wire Protectors Prevent Twisting And Breakage Of Stranded Wire During Connection; Modular 12-Circuit Design Can Be Cut Into Smaller Sections,Or Stacked End-To-End; Rugged Nylon Construction, UL 94V2; Operating Temperature Rated To 105 Degrees C (221 Degrees F); Number Of Circuits: 12; Torque Rating: 7 IN-LB; Rated Temperature: 105 DEG C; Overall Height: 0.472 IN; Model: PA12DS; Electrical Ratings: 35A/300V UL/CUL
Standard C/US UL Listed, RoHS
RoHS URL https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
UPC 783250896127
GTIN 00783250896127
Voltage Rating 300,600
Wire Size 22-10 AWG
