Ideal

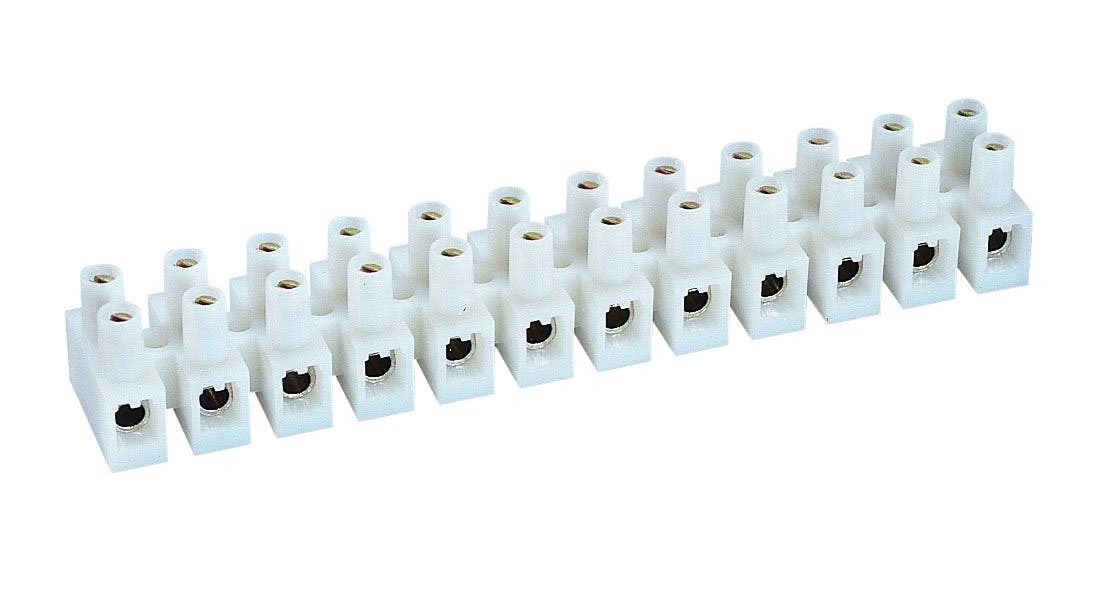

89-608 Barrier Strip, 300/400 V AC, 10/20 A, 22 to 12 AWG Wire

MFR:
Ideal Industries
MFR #:
89-608
UPC:
783250896080
Item #:
91375

IDEAL Barrier Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life.

Manuals & Documentation
Catalog Number 89-608
Manufacturer Ideal Industries
Brand Ideal
Country of Origin Taiwan, Province Of China
Made in USA No
Material Plastic Housing
Special Features Features: UL Recognized For 20A, 300V; CSA Certified For 10A, 400V; Torque Rating Of 3.5 In-Lbs; Recessed Screws And Tubular Contacts; UL Listed And CSA Certified; Connect Stripped Un-Terminated Solid Or Stranded Wire; Modular 12 Circuits Can Be Cut Into Smaller Sections; Plastic Housing Is UL Flame Rated To 94V-2; Rated Temperature To 105 Degrees C; Recessed Screws And Tubular Contacts Provide Added Safety And Help Prevent Short Circuits; Tubular Contacts Connect Stripped, Un-Terminated Solid Or Stranded Wire Directly To Each Contact Integrated Wire Protectors Prevent Twisting And Breakage Of Stranded Wire During Connection; Modular 12-Circuit Design Can Be Cut Into Smaller Sections,Or Stacked End-To-End Rugged Nylon Construction, UL 94V2; Operating Temperature Rated To 105 Degrees C (221 Degrees F) Recessed Screws And Tubular Contacts Provide Added Safety And Help Prevent Short Circuits Tubular Contacts Connect Stripped, Un-Terminated Solid Or Stranded Wire Directly To Each Contact Integrated Wire Protectors Prevent Twisting And Breakage Of Stranded Wire During Connection; Modular 12-Circuit Design Can Be Cut Into Smaller Sections,Or Stacked End-To-End; Rugged Nylon Construction, UL 94V2; Operating Temperature Rated To 105 Degrees C (221 Degrees F); Number Of Circuits: 12; Torque Rating: 3.500 IN-LB; Rated Temperature: 105 DEG C; Overall Height: 0.315 IN; Model: PA8DS; Electrical Ratings: 20A/300V UL to 10A/400V CSA
Standard C/US UL Listed, RoHS
RoHS URL https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
UPC 783250896080
GTIN 00783250896080
Voltage Rating 300, 400
Wire Size 22 - 12 AWG
