MC50X50IG2 Panduct Type MC Metric Wiring Duct With DIN 43659 Mounting Holes, 0.2 in Narrow Slot Slot, 1.95 in W x 1.89 in D, PVC
- MFR:
- Panduit
- MFR #:
- MC50X50IG2
- UPC:
- 074983743001
- Item #:
- 90952
MC50X50IG2 Panduct Type MC Metric Wiring Duct With DIN 43659 Mounting Holes, 0.2 in Narrow Slot Slot, 1.95 in W x 1.89 in D, PVC
- MFR #:
- MC50X50IG2
- UPC:
- 074983743001
- Item #:
- 90952

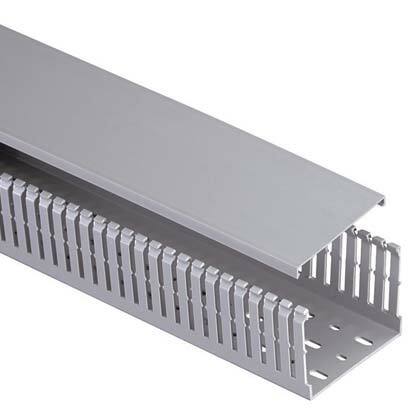

The MC50X50IG2 Panduct Lead-Free PVC Narrow Slot Wiring Duct is 49.5 mm x 47.8 mm (1.95 x 1.88). It features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-free PVC. Cover included. Color - International Gray. 20 Meters (10 sticks each) - Bases & Covers per package.
Manuals & Documentation
| Catalog Number | MC50X50IG2 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | International Gray |
| Connection | DIN Mounting Holes |
| Material | PVC |
| Mounting Holes | On Centerline |
| Slot Pitch | 0.2 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant |
| UPC | 074983743001 |
| GTIN | 00074983743001 |
| Item Type | Wiring Duct Base with Cover |
| Length | 78.74 |
| Length UOM | Inch |
| Width | 1.95 |
| Width UOM | Inch |
| Size | 1.95 x 1.89 |
