Appleton

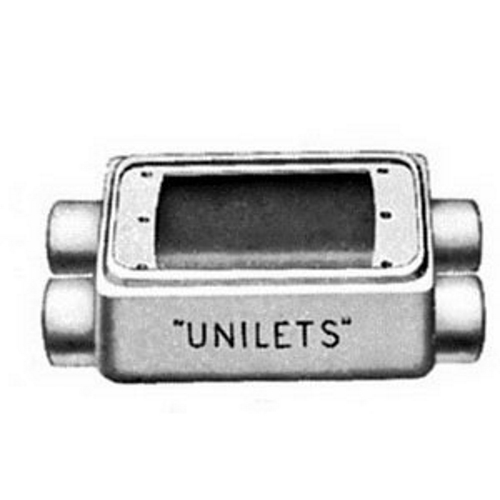

FS Device Box, 1-Gang, Feed-Thru, Type: FSCD, 3/4", Malleable Iron

MFR:
Appleton Electric
MFR #:
FSCD-1-75
UPC:
781381345804
Item #:
90924

UNILETS FSCD Shallow Depth 1-Gang Cast Device Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (4) 3/4 IN Hub, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 4.56 IN, Width: 2.81 IN, Depth: 2 IN, Finish:

Manuals & Documentation

Features

  • Corrosion-resistant
  • Covers have captive stainless steel screws to speed installation, prevents loss of screws
  • With high tensile strength and ductility
  • UL listed
  • CSA certified
Catalog Number FSCD-1-75
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit And IMC
Cable Entry (4) 3/4 IN Hub
Cubic Capacity 25 CU IN
Knockouts No
Material Malleable Iron
Special Features Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
Standard UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381345804
GTIN 00781381345804
Item Type FSCD Shallow Depth 1-Gang Cast Device Box
Length 6.7000
Length UOM Inch
Width 5.0000
Width UOM Inch
Height 3.5000
Height UOM Inch
Weight 2.480
Weight UOM Pounds
Size 3/4
