Square D

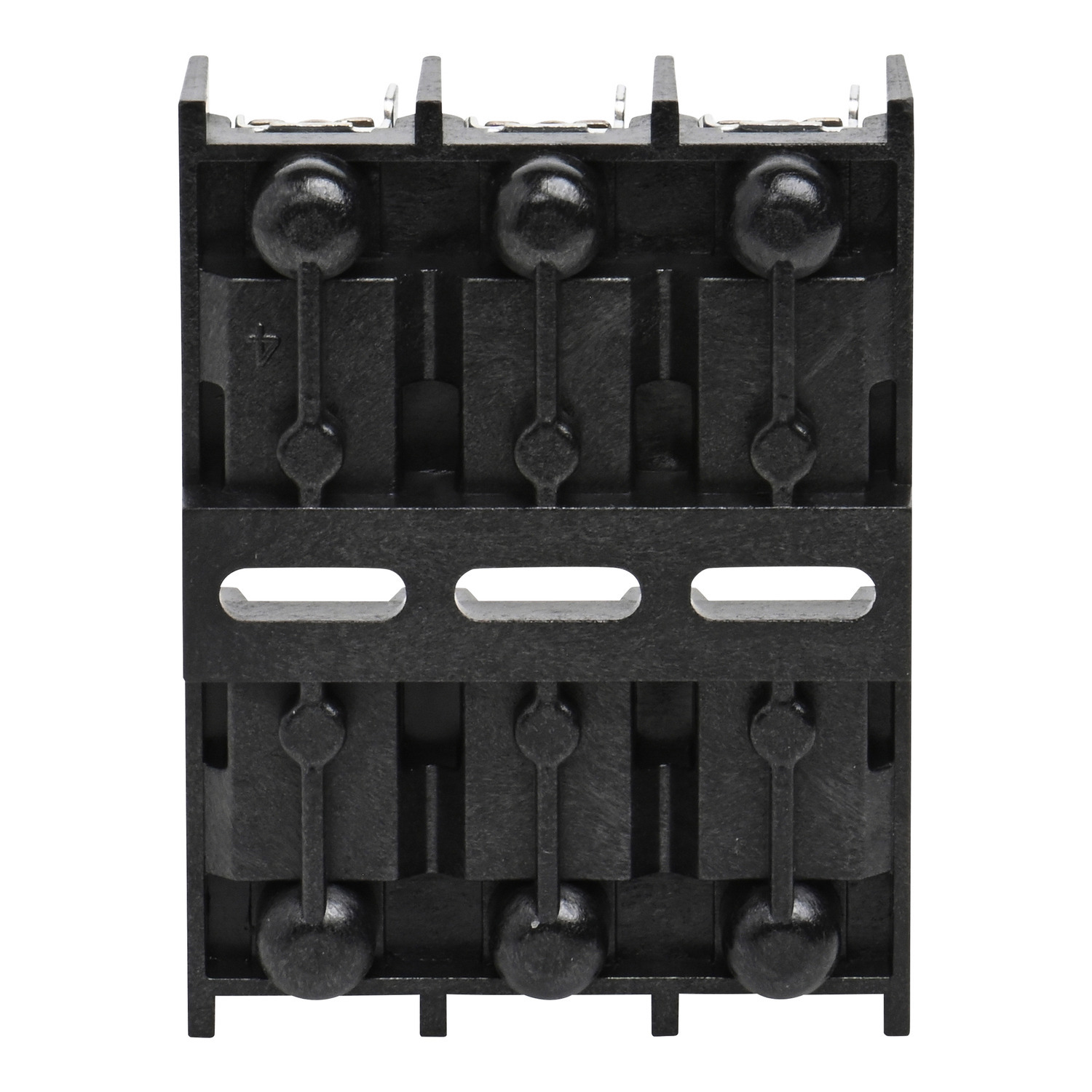

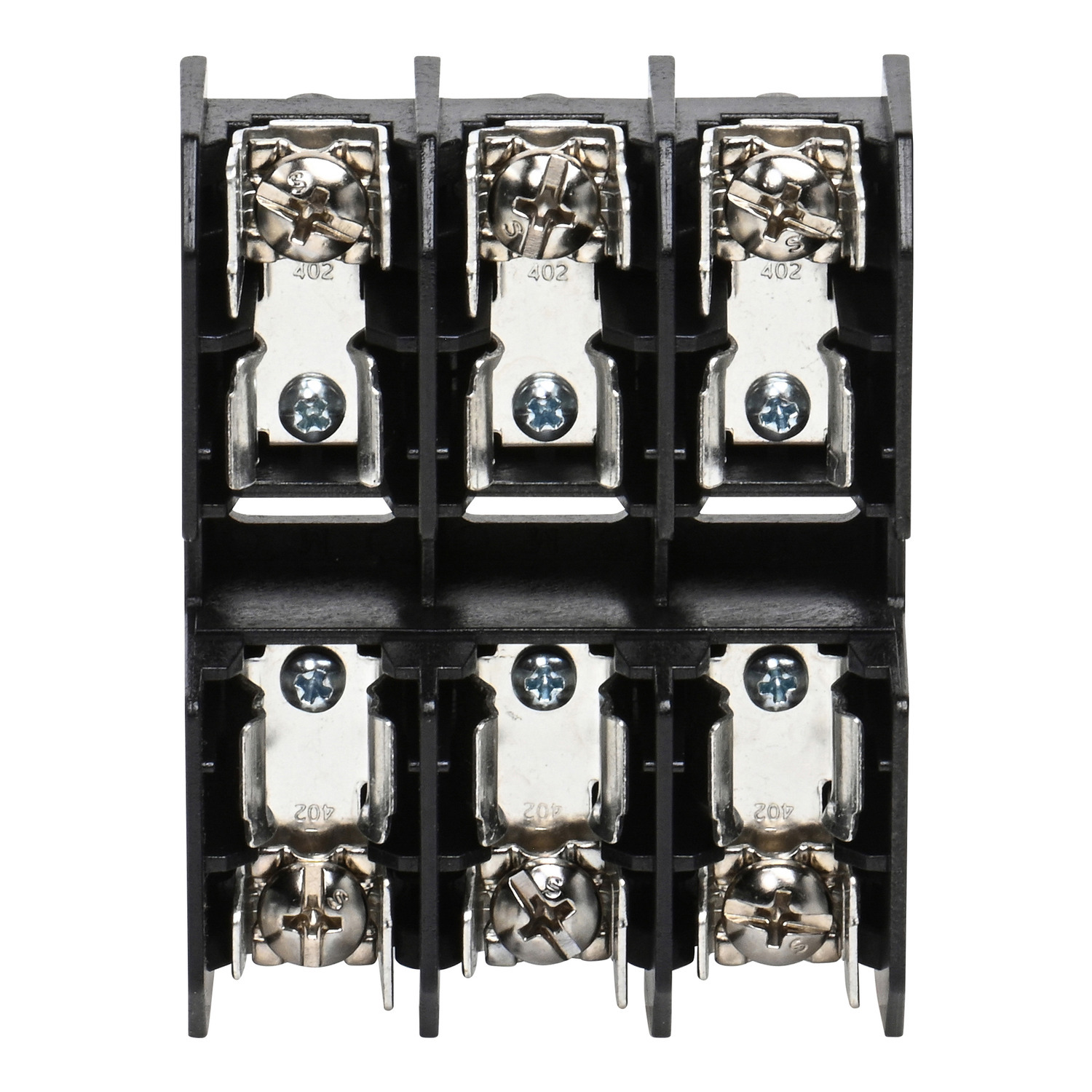

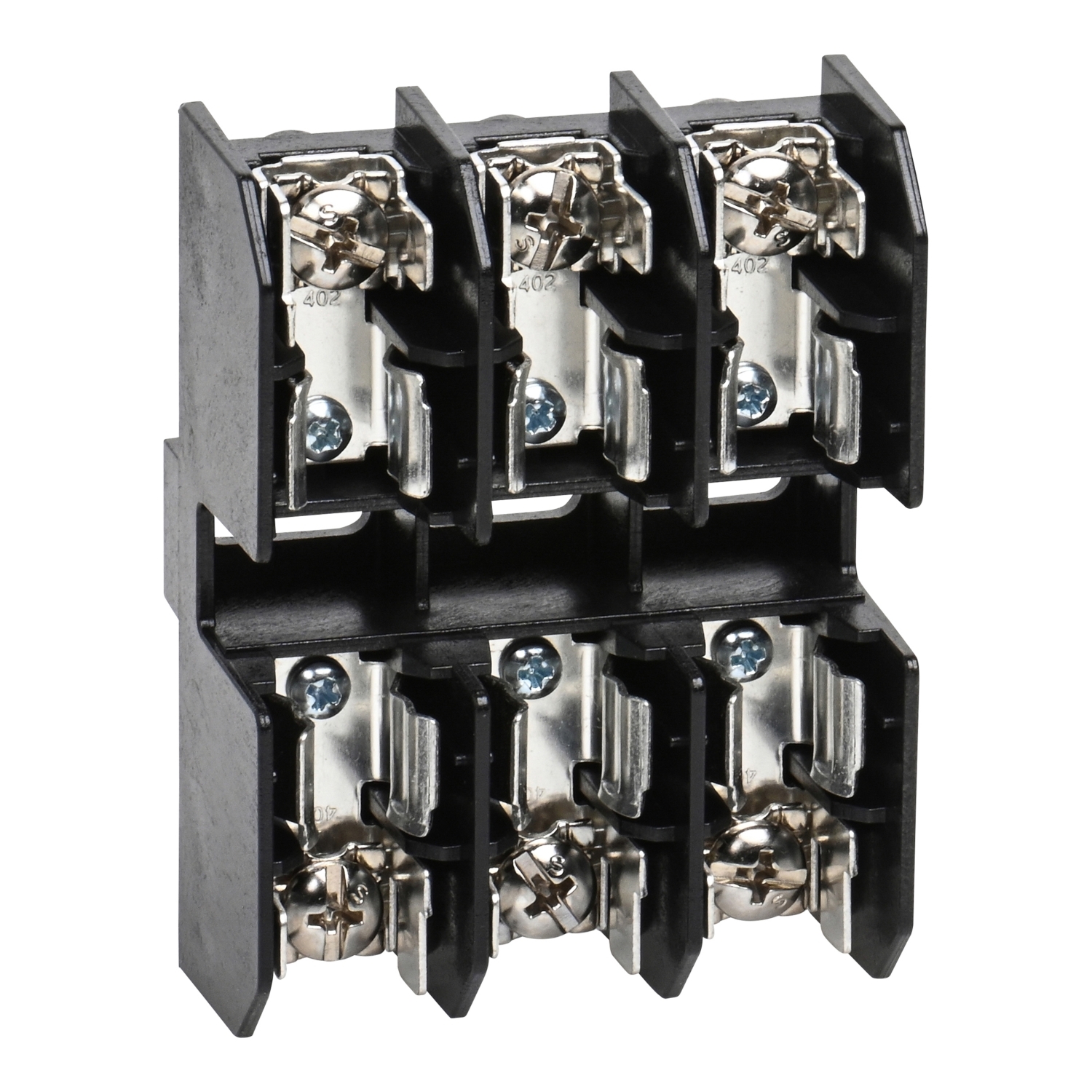

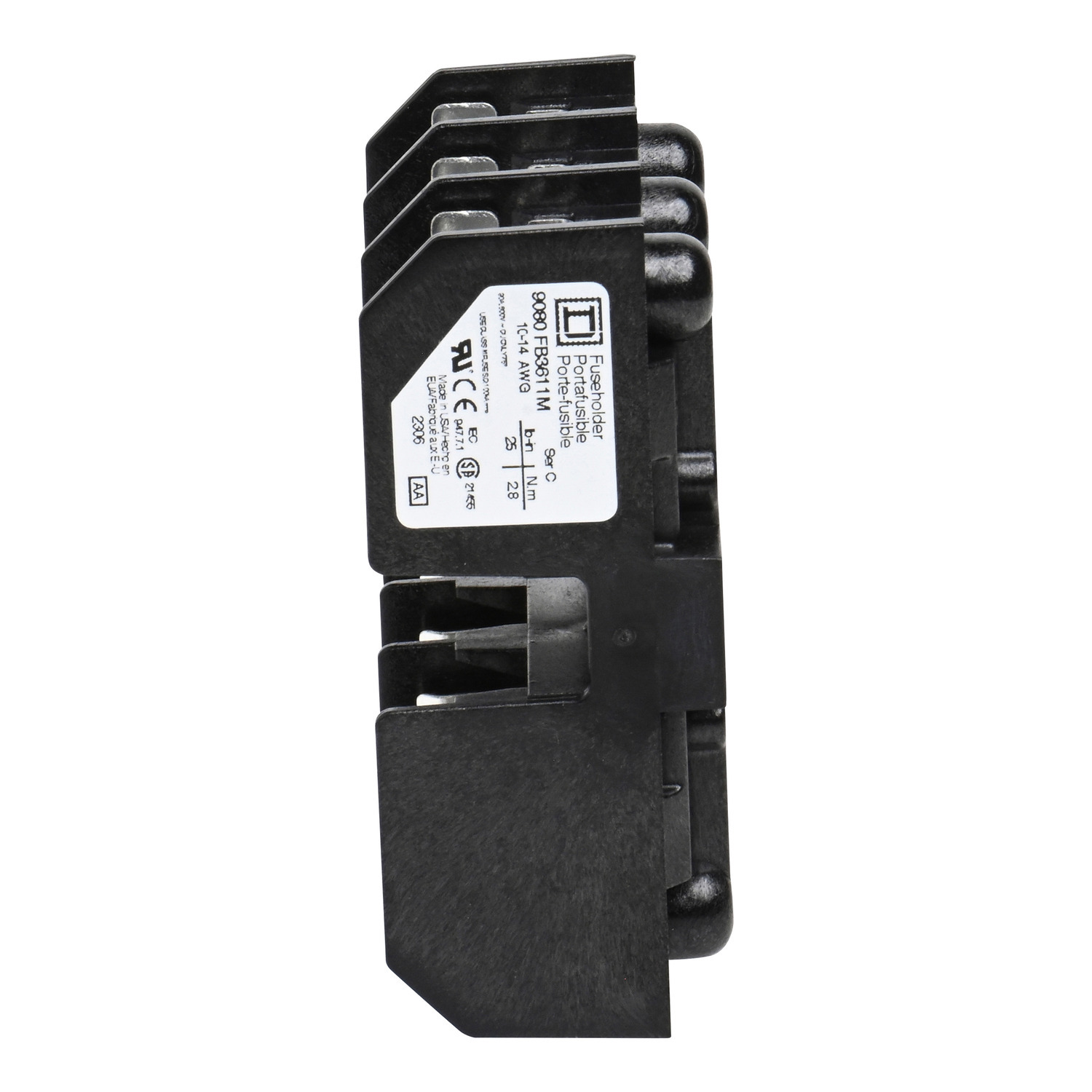

9080FB3611M Type FB Fuse Holder, 600 V AC, 30 A, Class: M, 14 to 10 AWG Wire, 3 Poles

MFR:
Schneider Electric
MFR #:
9080FB3611M
UPC:
785901097129
Item #:
89622

Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. These starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. The Motor Logic solid state overload relay is used to sense over current conditions. This contactor doesn't have an enclosure. Starter is 6.67 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Starter has one normally open and one normally closed auxiliary contact. Type S starters are UL listed and CSA certified for global applications.

Manuals & Documentation
Catalog Number 9080FB3611M
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application 0.4063 x 1.5 in;M
Connection screw terminals 25 lbf.in AWG 14...AWG 10 copper;Pressure wire clamp;AWG 14...AWG 10 copper or aluminium
Material Thermoplastic: block
Mounting Surface
Standard UL recognized E40747 CCN IZLT2;CSA file 70360 class 6225 01;CE
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=371755&lang=en-us
UPC 785901097129
GTIN 00785901097129
Item Type Fuse holder
Width 2.35
Width UOM Inch
Height 3.13
Height UOM Inch
Depth 1.29 IN
