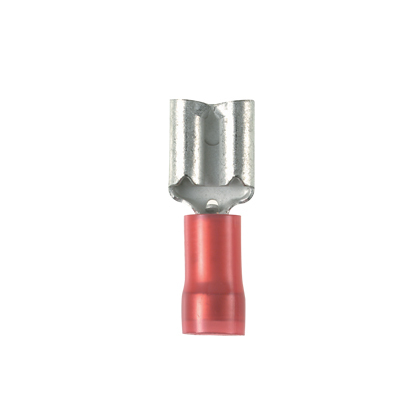

DNF18-111-C Pan-Term Type DNF Loose Piece Vibration-Resistant Female Disconnect, 22 AWG Conductor, 0.11 in W x 0.02 in THK Tab, Funnel Entry/Serrated/Sleeved Barrel, Brass, Red, Barrel Insulated
- MFR:
- Panduit
- MFR #:
- DNF18-111-C
- UPC:
- 074983827060
- Item #:
- 89605
DNF18-111-C Pan-Term Type DNF Loose Piece Vibration-Resistant Female Disconnect, 22 AWG Conductor, 0.11 in W x 0.02 in THK Tab, Funnel Entry/Serrated/Sleeved Barrel, Brass, Red, Barrel Insulated
- MFR #:
- DNF18-111-C
- UPC:
- 074983827060
- Item #:
- 89605
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.110 x 0.020 (2.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm). It is 0.69 (17.5 mm) long and 0.15 (3.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.
Manuals & Documentation
| Catalog Number | DNF18-111-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel Entry |
| Finish | Tin-Plated |
| Insulation | Nylon |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983827060 |
| GTIN | 00074983827060 |
| Item Type | Disconnect |
| Temperature Rating | 194 Degrees Fahrenheit (90 Degrees Celsius) |
| Voltage Rating | 300 |
| Wire Size | #18 AWG |
