SCHNEIDER ELECTRIC

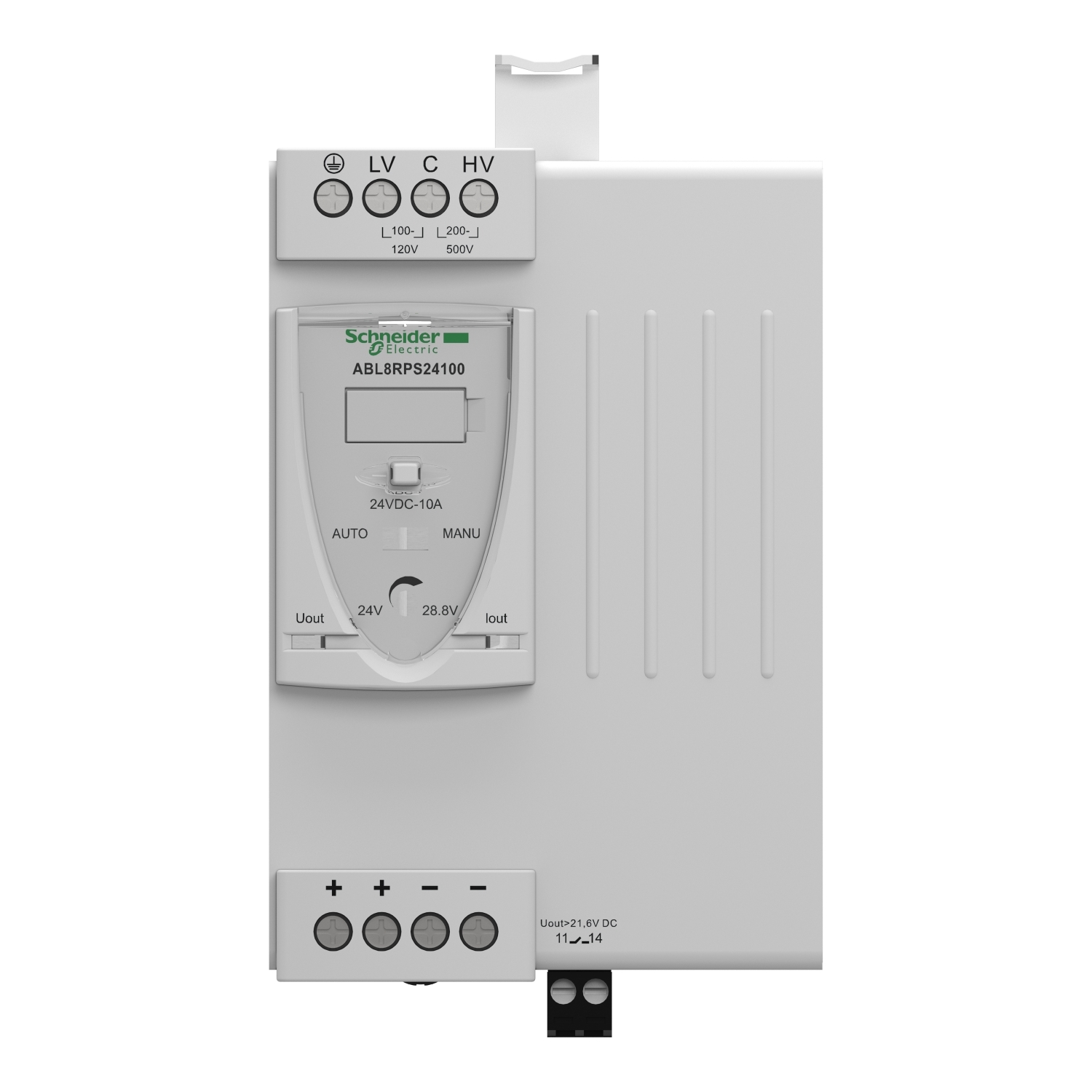

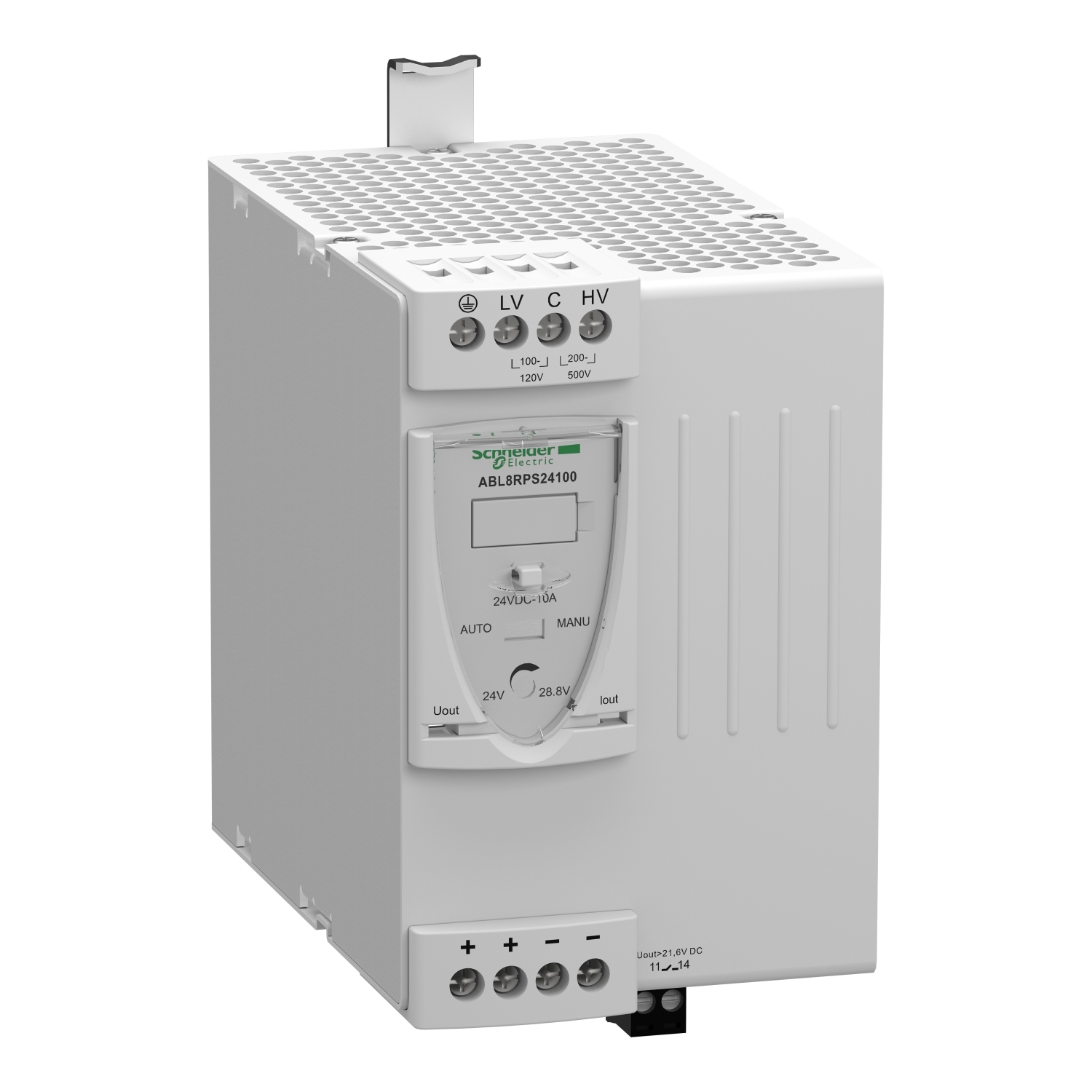

ABL8RPS24100 Phaseo 1/2-Phase Regulated Switch Mode Universal DC Power Supply, 100 to 120 V AC, 200 to 500 V AC Input, 24 VDC Output, 240 W Power Rating, 10 A, DIN Rail Mount

MFR:
Schneider Electric
MFR #:
ABL8RPS24100
Item #:
88636

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 10A at 24V DC and a rated power output of 240W. Most of these power supplies have auto protection reset. A few have auto / manual protection reset. Some of these power supplies can be mounted directly to a panel. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 85mm-wide. It weighs 1,000kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD08, GB2CD12, GV2RT07 and GV2ME07 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Manuals & Documentation
Catalog Number ABL8RPS24100
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Philippines
Made in USA No
Input Voltage 100...120 V AC single phase N-L1;200...500 V AC phase to phase L1-L2
Output Voltage 24 V DC
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1452731&lang=en-us
GTIN 03389119405621
Power Factor 0.68 at 240 V AC;0.69 at 120 V AC
