Square D

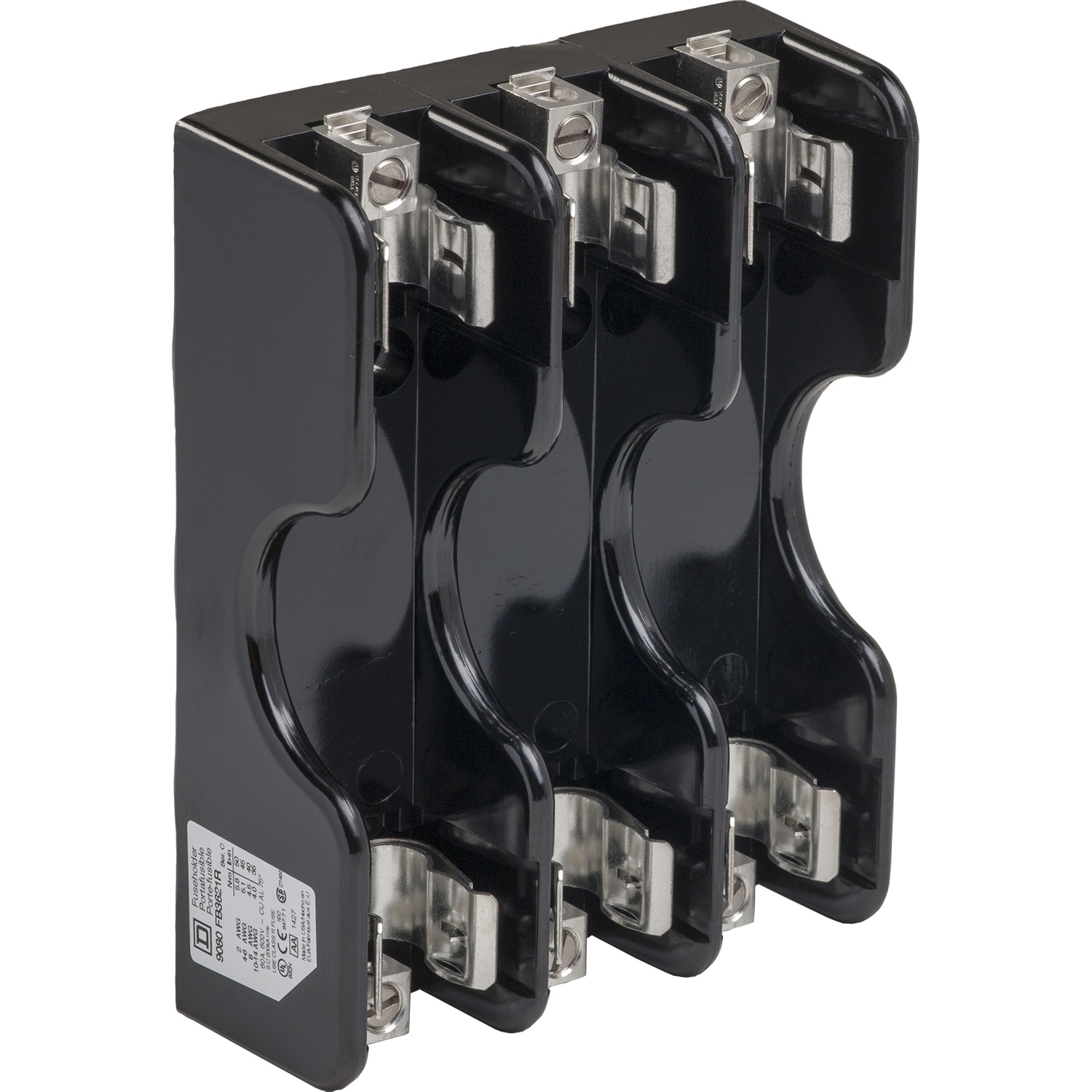

9080FB3621R Type FB Fuse Holder, 600 V AC, 60 A, Class: R, 14 to 2 AWG Wire, 3 Poles

MFR:
Schneider Electric
MFR #:
9080FB3621R
UPC:
785901097259
Item #:
88370

Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. These starters are available with a wide variety of replaceable coil voltages. Starter has a 440/480 VAC 50/60 Hz operating coil. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This contactor doesn't have an enclosure. Starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.

Manuals & Documentation
Catalog Number 9080FB3621R
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application 1.0625 x 5.5 in;R
Connection lugs 50 lbf.in AWG 3...AWG 2 copper or aluminium; lugs 45 lbf.in AWG 6...AWG 4 copper or aluminium; lugs 40 lbf.in AWG 8 copper or aluminium; lugs 35 lbf.in AWG 12...AWG10 copper or aluminium; lugs 35 lbf.in AWG 14 copper;Box lugs;AWG 14...AWG 2 copper or aluminium
Material Phenolic: block
Mounting Surface
Standard UL listed file E40747 CCN IZLT;CE;CSA file 70360 class 6225 01
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=371765&lang=en-us
UPC 785901097259
GTIN 00785901097259
Item Type Fuse holder
Width 5.08
Width UOM Inch
Height 6.75
Height UOM Inch
Depth 2.12 IN
