SQUARE D

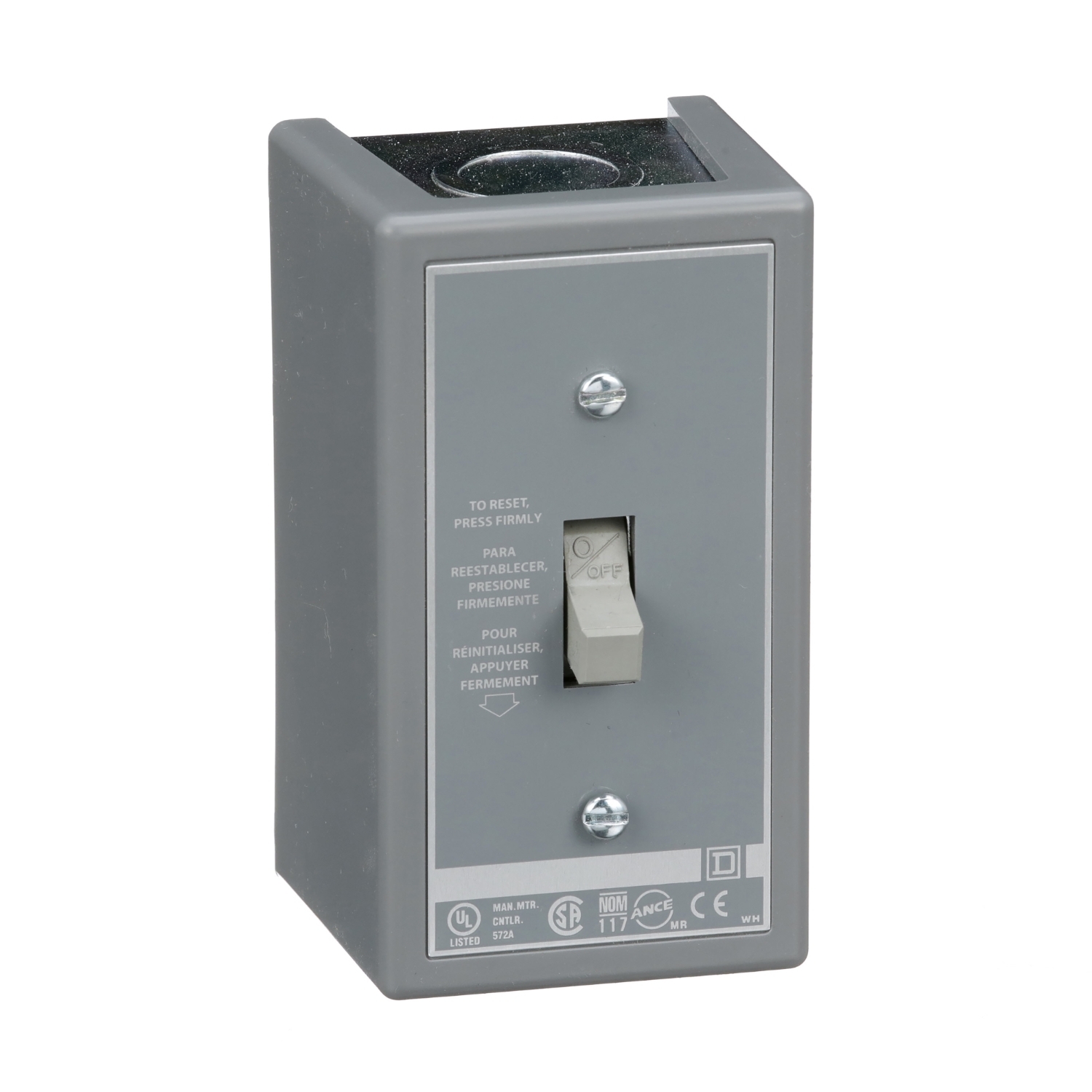

2510FG5 Type F Fractional Horsepower Non-Reversing Standard Single Unit Manual Starter, 1 Pole, NEMA 1 Enclosure

MFR:
Schneider Electric
MFR #:
2510FG5
UPC:
785901554011
Item #:
88265

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.88 inches deep. This device is without a pilot light indicator. Manual starter has a handle guard that can be used for lock off. Manual starter is UL listed and CSA certified.

Manuals & Documentation
Catalog Number 2510FG5
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Cable Entry 0.5" and 0.75" knock-outs (top and bottom)
UPC 785901554011
GTIN 00785901554011
Width 2.44
Width UOM Inch
Height 4.25
Height UOM Inch
Depth 2.88 IN
