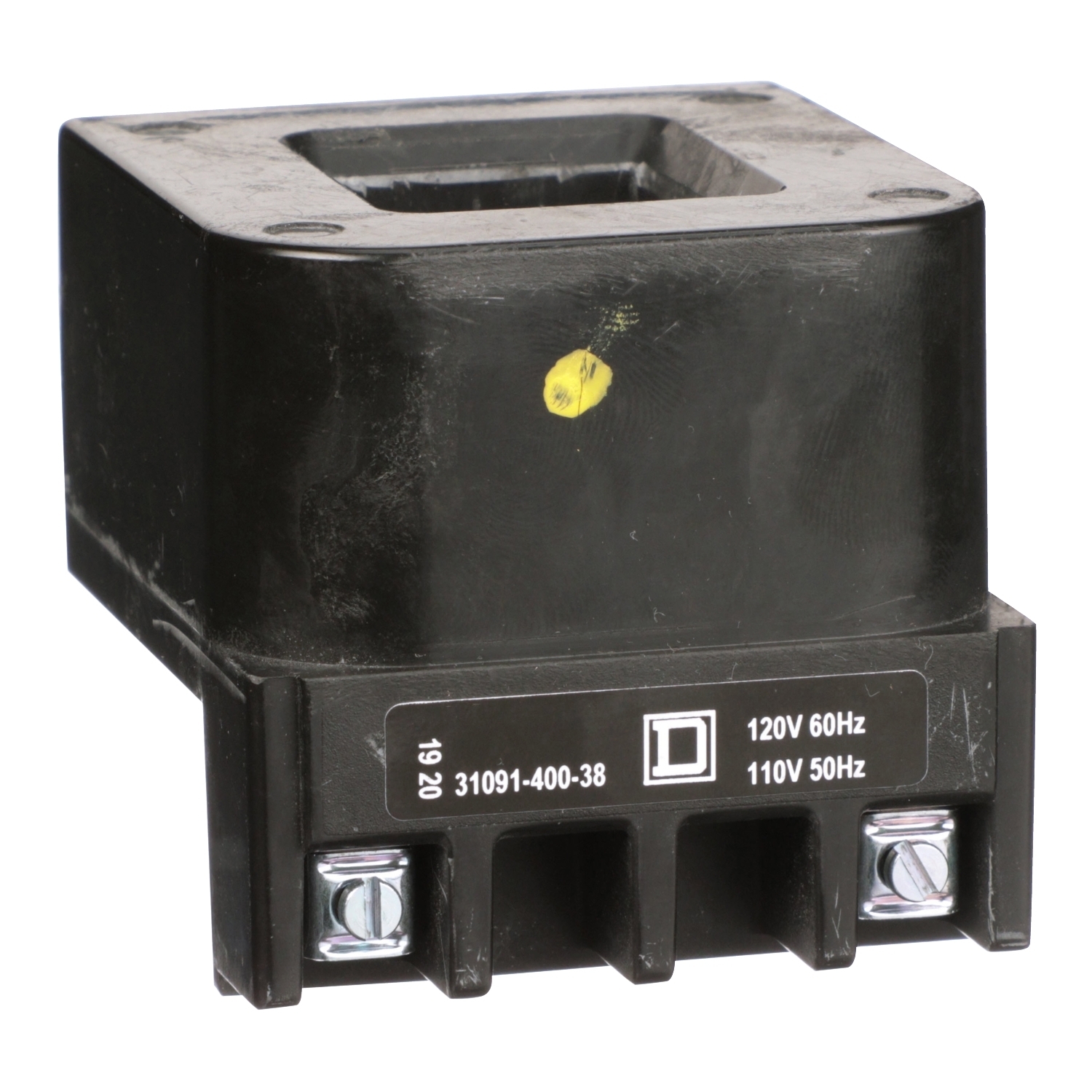

3109140038 Coil, NEMA 3/4, 110/115/120 V AC, 50/60 Hz, For Use With Class 8903 Type SE, Class 8502 Type SQ, Class 8910 Type DPA12/SYD138 2/5 Poles, Class 8910 Type SYD230, Class 8502 Type SF, Class 8903 Type SV Contactor/Starter
- MFR:
- Schneider Electric
- MFR #:
- 3109140038
- UPC:
- 785901323563
- Item #:
- 88218
3109140038 Coil, NEMA 3/4, 110/115/120 V AC, 50/60 Hz, For Use With Class 8903 Type SE, Class 8502 Type SQ, Class 8910 Type DPA12/SYD138 2/5 Poles, Class 8910 Type SYD230, Class 8502 Type SF, Class 8903 Type SV Contactor/Starter
- MFR #:
- 3109140038
- UPC:
- 785901323563
- Item #:
- 88218

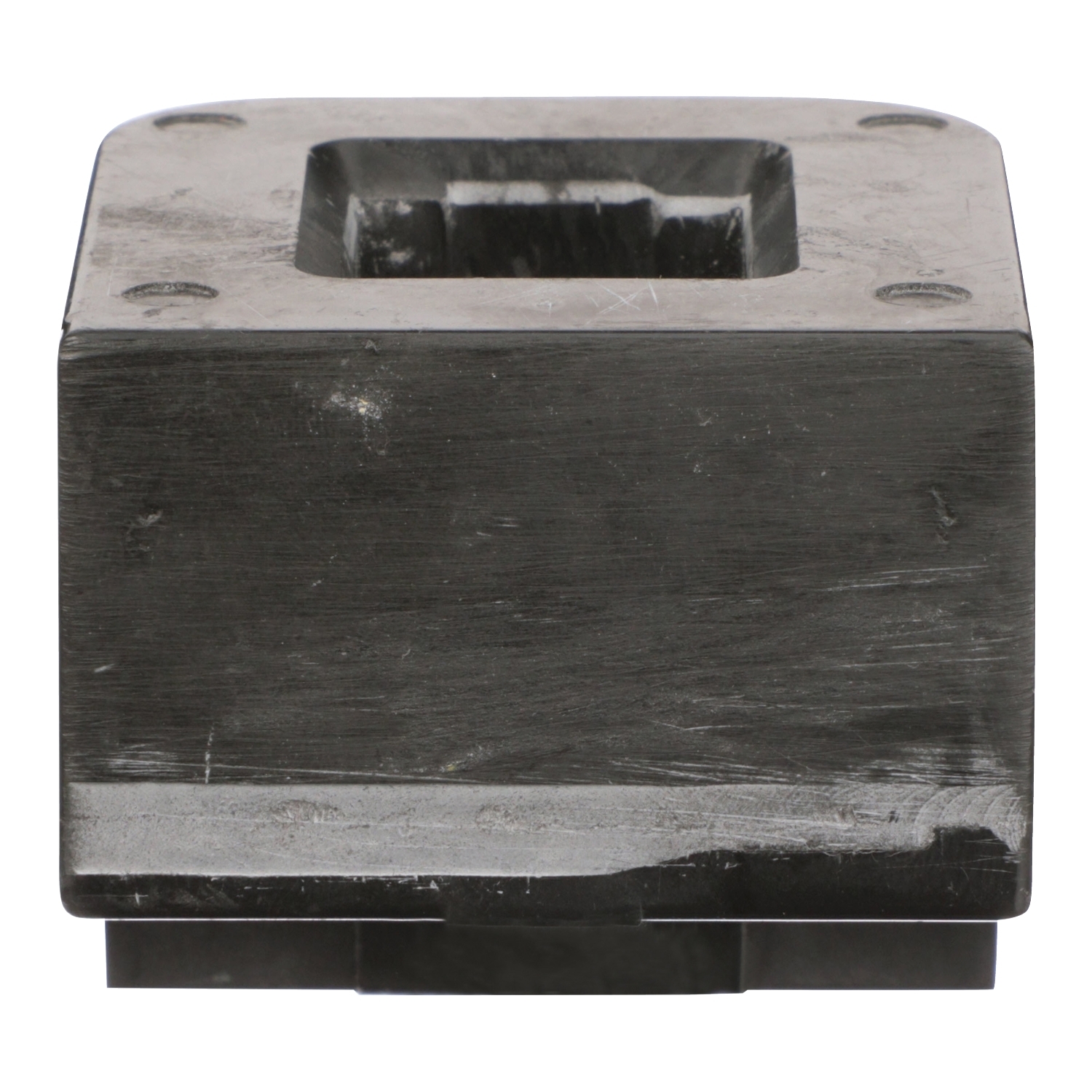

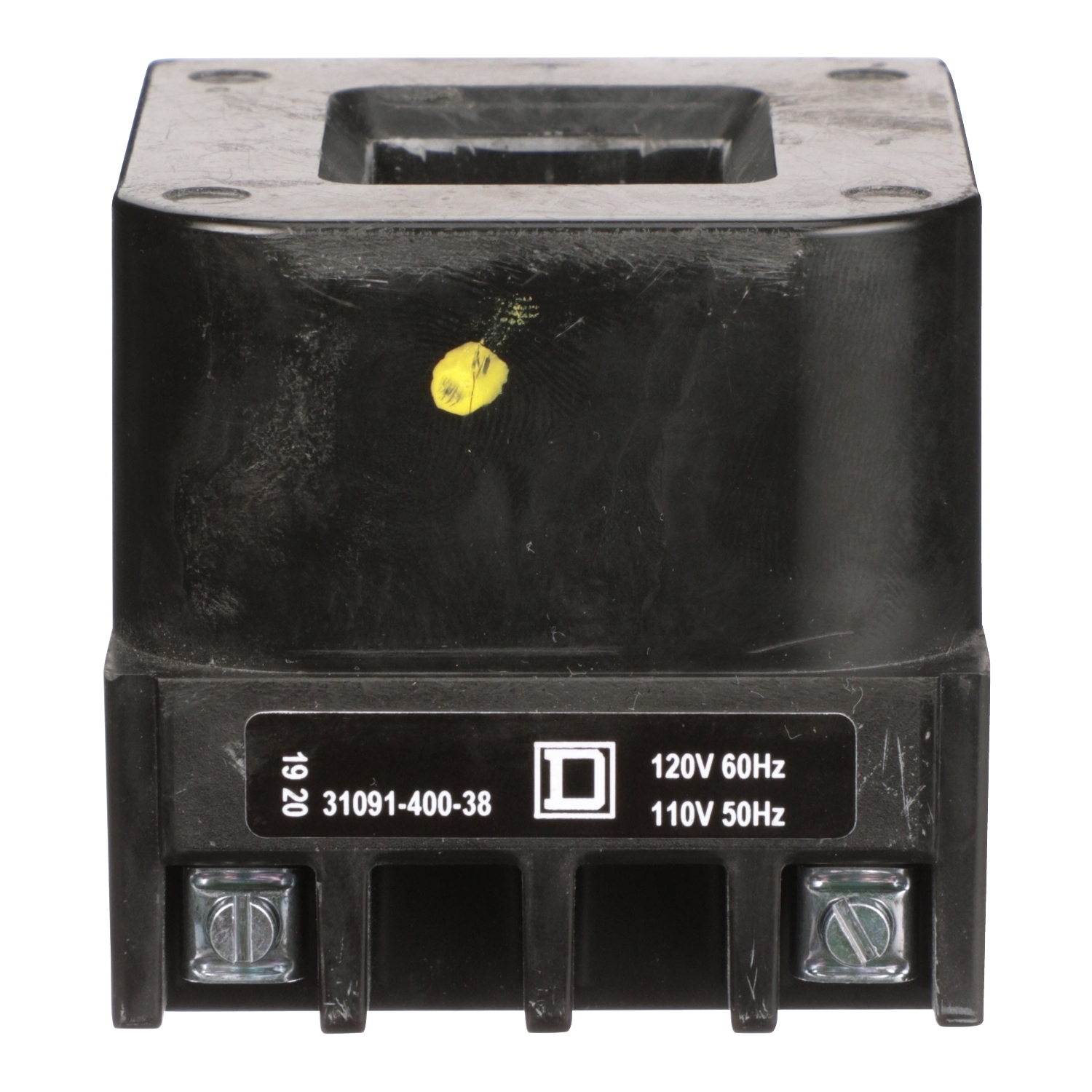

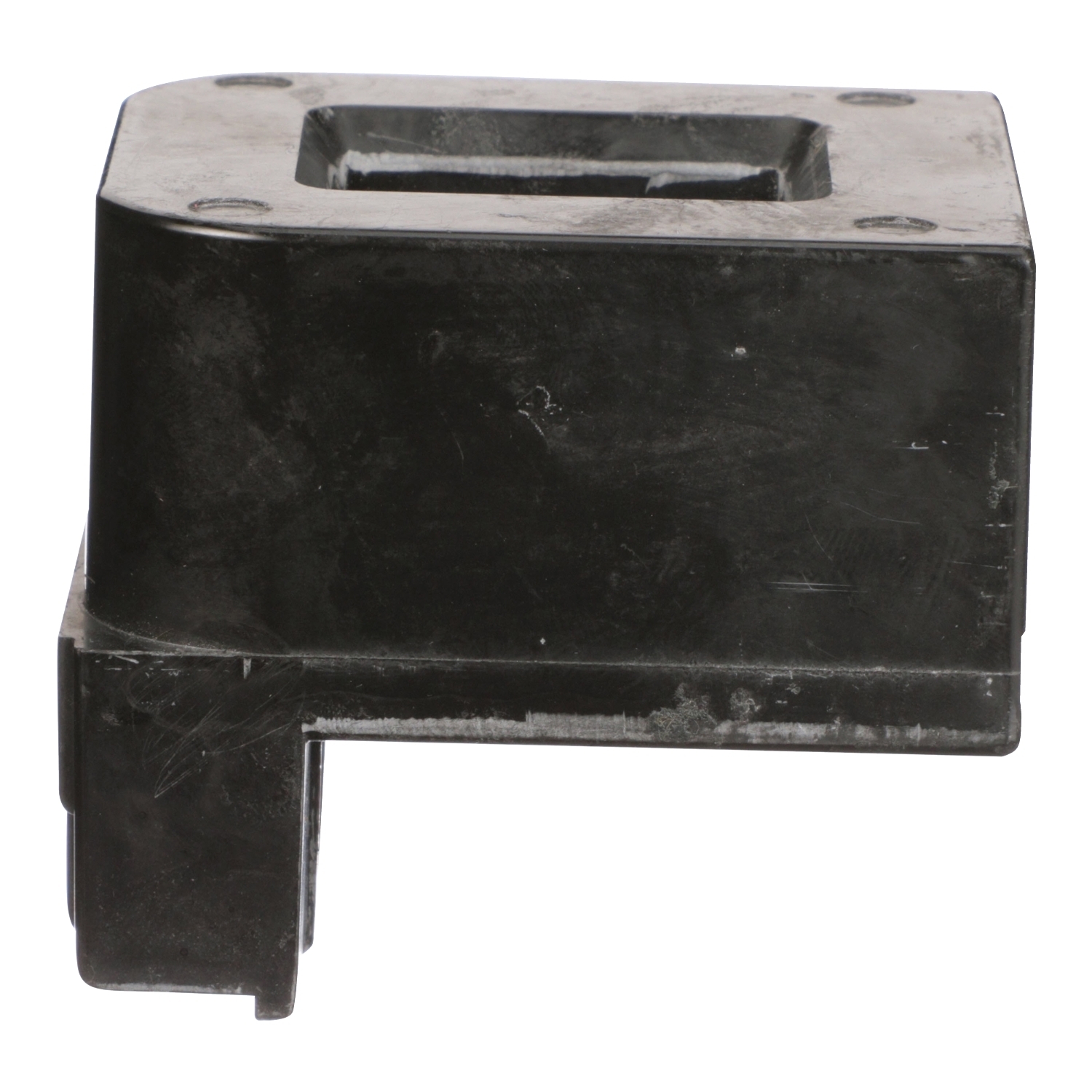

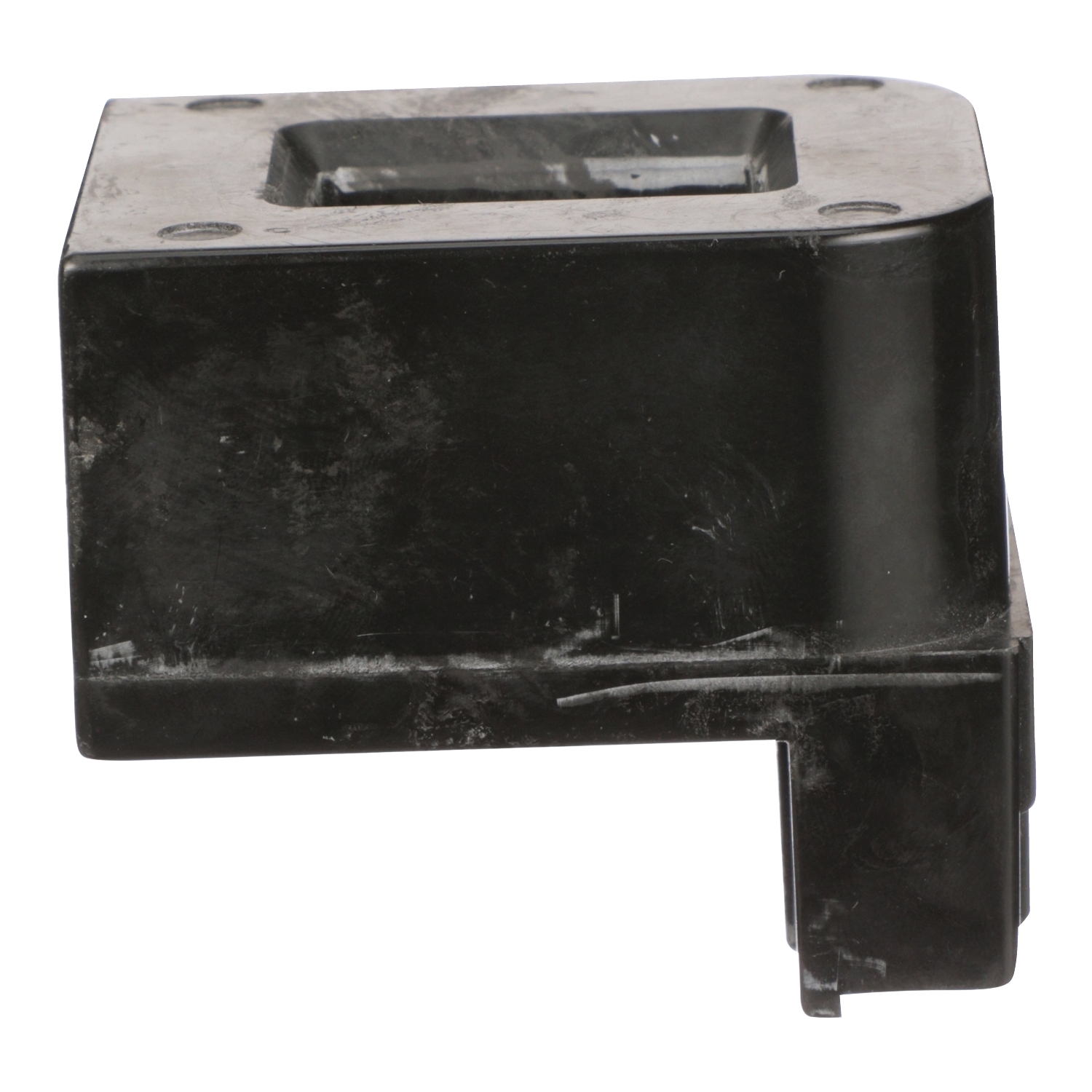

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SF contactor, an 8536SF starter or an 8903SV lighting contactor. This coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 1185 VA. It has an average sealed consumption of 85 VA. This coil has a height of 74.7 mm, a width of 65 mm and a depth of 62.7 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Manuals & Documentation
| Catalog Number | 3109140038 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901323563 |
| GTIN | 00785901323563 |
| Item Type | Coil |
