Square D

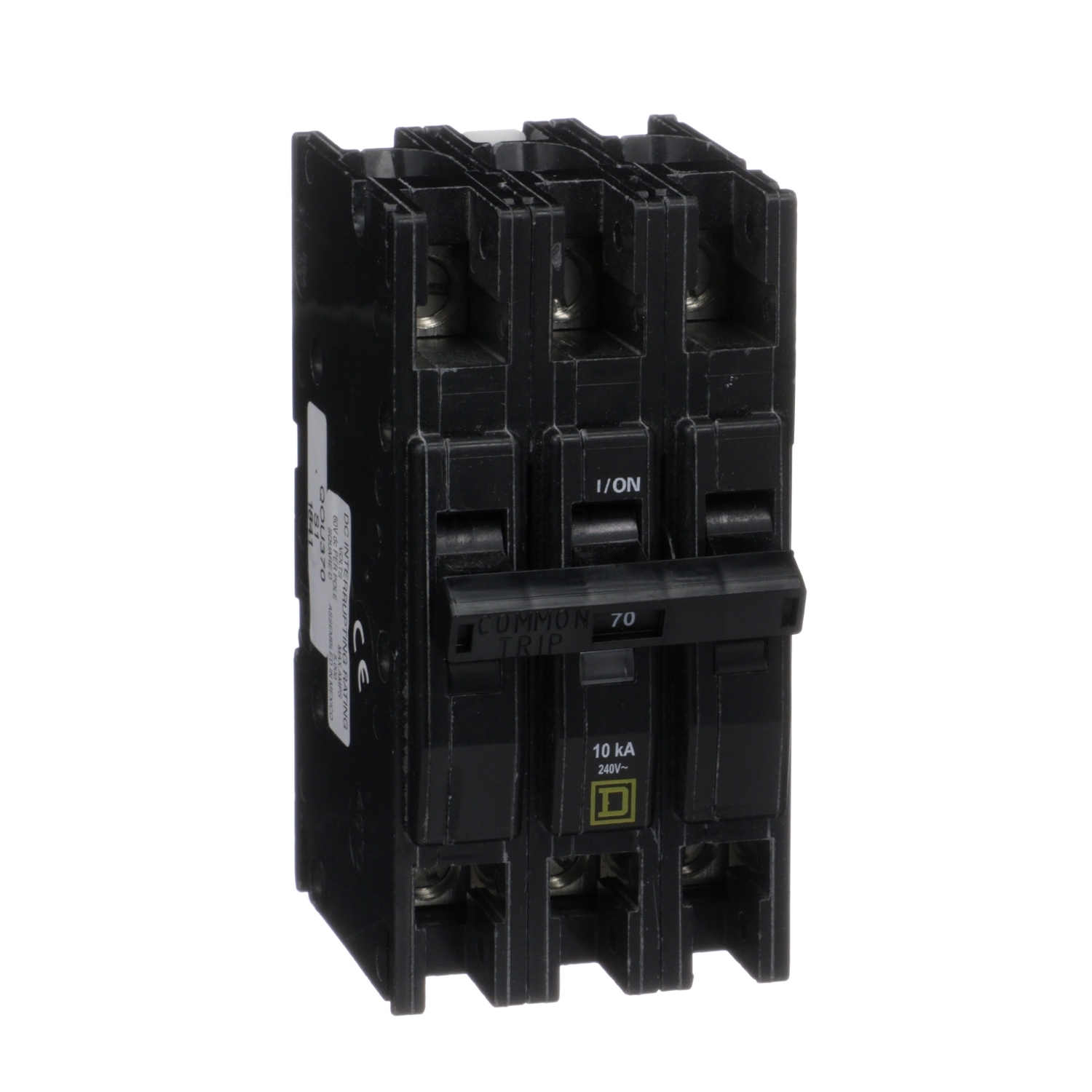

QOU370 Type QOU Standard Unit Mount Miniature Circuit Breaker, 240 V AC, 70 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
QOU370
UPC:
785901060307
Item #:
87688

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting.

Manuals & Documentation
Catalog Number QOU370
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application HACR rated
Connection Slotted box lugs, line side;slotted box lugs, load side;AWG 12...AWG 2/0 aluminium/copper
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402981&lang=en-us
UPC 785901060307
GTIN 00785901060307
Item Type Miniature circuit-breaker
Width 2.250000000000000
Width UOM Inch
Height 4.050000000000000
Height UOM Inch
Depth 2.95 IN
Voltage Rating 120/240 V AC;240 V AC;120 V AC;60 V DC
