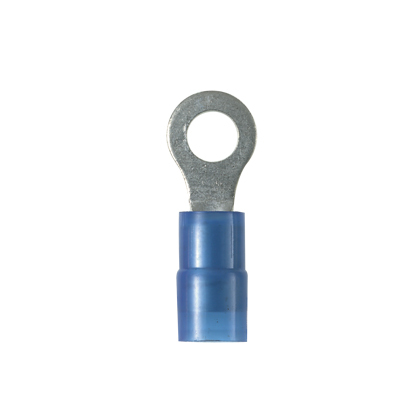

PN14-14R-C Pan-Term Type PN-R Ring Terminal, 14 AWG Conductor, 1.05 in L, Brazed Seam/Seamed/Standard/Internal Serration/Insulation Support Barrel, Copper, Blue
- MFR:
- Panduit
- MFR #:
- PN14-14R-C
- UPC:
- 074983800223
- Item #:
- 86801
PN14-14R-C Pan-Term Type PN-R Ring Terminal, 14 AWG Conductor, 1.05 in L, Brazed Seam/Seamed/Standard/Internal Serration/Insulation Support Barrel, Copper, Blue
- MFR #:
- PN14-14R-C
- UPC:
- 074983800223
- Item #:
- 86801
The PN14-14R-C Pan-Term Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
Manuals & Documentation
| Catalog Number | PN14-14R-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Standard |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Nylon |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-154) |
| UPC | 074983800223 |
| GTIN | 00074983800223 |
| Item Type | Ring Terminal |
| Size | 1/4" |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
